Mixers - replaceable RA models
2. Technical Data
10
2 . 3 . 4 Support pedestal
The mobile support pedestal supports the mixer that is attached to the container fitting and in use
and enables particularly ergonomic working conditions. It is required for the RA 300 model to ease
the burden on the connection fitting.
 „OVERLYING“ configuration
 „SUSPENED“ configuration

Size
0 1 2 3
F 250 250 250 250
G 500 500 500 700
H1 450 500 650 950
H2 600 700 1000 1500
H3 1060 1060 1060 1060
H4 170 170 170 170
RA 45
A 440 440 440 440
C 425 425 425 425
E 420 420 420 650
RA 110
A 475 475 475 475
C 400 400 400 400
E 420 420 420 650
RA 300
A 675 675 675 675
C 450 450 450 450
E 470 470 470 700
(dimensions in mm)
Tab. 3 OVERLYING support pedestal

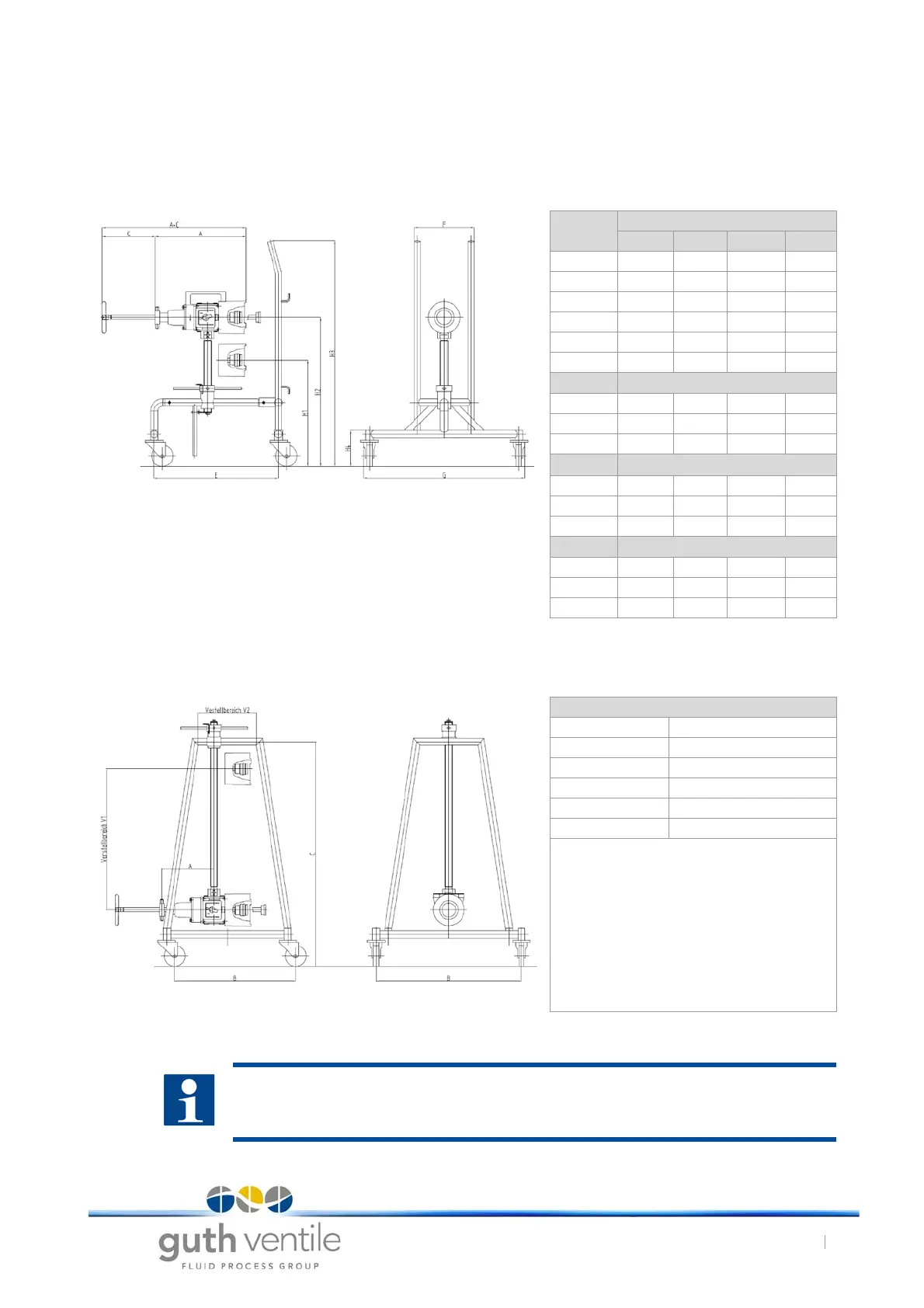

Fig. 5 Support pedestal
Standard configuration
A435
B 600
C 1200
V1 300 - 1000
V2 300
(dimensions in mm)
Tab. 4 SUSPENDED support pedestal
NOTICE
• If the container with the container fitting has not been designed to carry the weight of the mixer,
it is necessary to use the mobile support pedestal.
