12.1.17
Mixers - replaceable RA models
2. Technical Data
7
2 . 2 Design of mixer
No. Designation Pce.
1.0 Front part of mixer
1.1 Flange housing 1
1.2 Set collar 1
1.3 Interim flange 1
1.4
Hexagonal screw,
spring wascher
4
1.5 Gassing valve (optional) 1
2.0 Gaskets
2.1 Mechanical seal 1
2.2 Agitator shaft seal 2
2.3 Interim flange seal 1
2.4 Motor shaft seal 1
3.0 Agitator shaft
3.1 Agitator shaft 1
3.2 Agitator shaft coupling 1
3.3 Motor shaft coupling 1
4.0 Pivioting sash propeller 1
5.0 Hollow shaft motor 1
5.1 Front bearing shield 1
5.2 Rear bearing shield 1
5.3 Deep groove ball bearing 2
5.4 Rotor shaft 1
5.5 Fan impeller 1
5.6 Protective fan hood 1
5.7 Tensile screw 3-4
5.8 Cylinder screw 3-4
6.0 Motor protection switch 1
7.0 Cable connection 1
8.0 Carry handle
8.1 Handle 1
8.2 Cylinder screw 2
9.0 Protective cloth 1

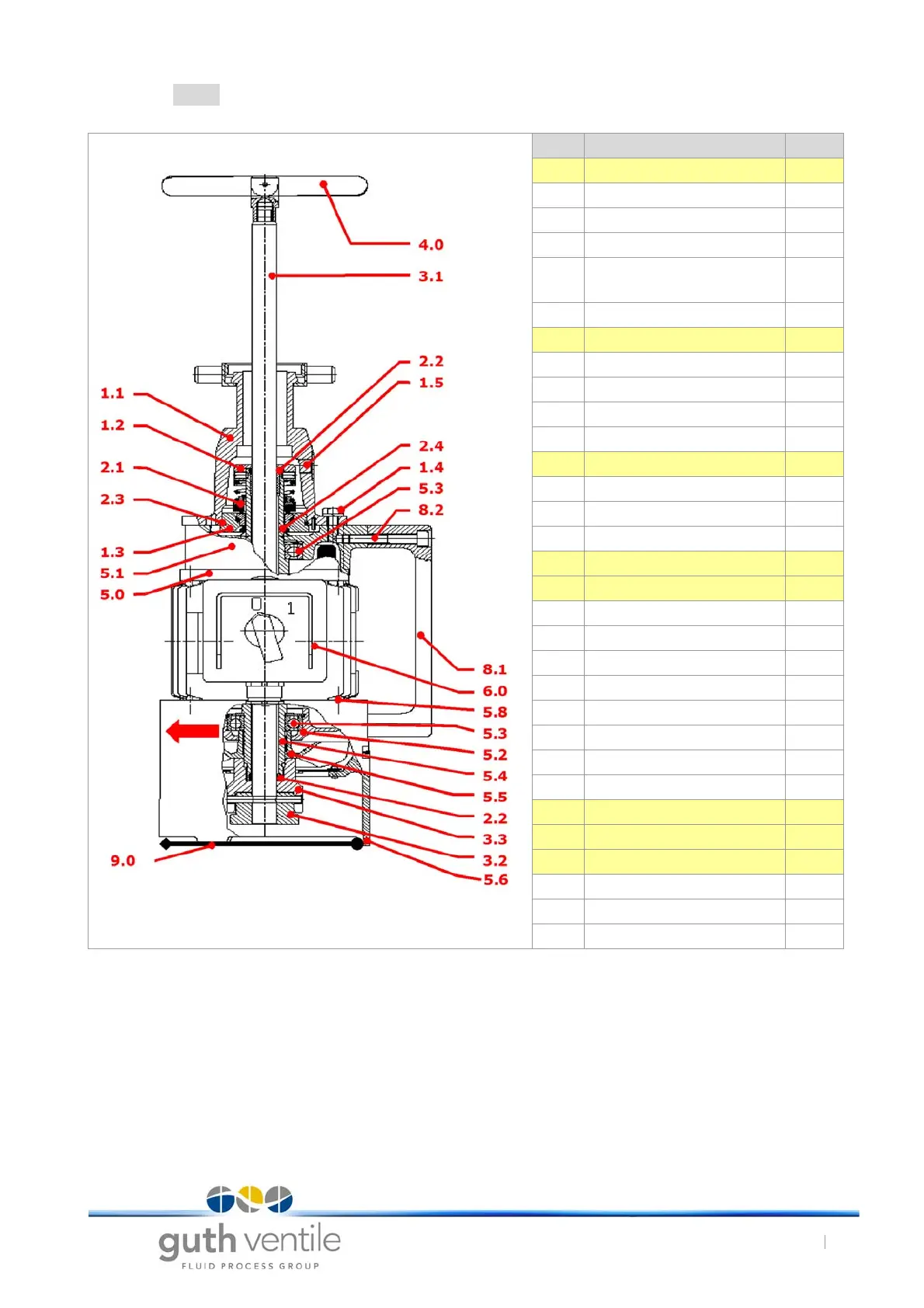

Fig. 1 Mixer design Tab. 1
