LIRA
™
1.3

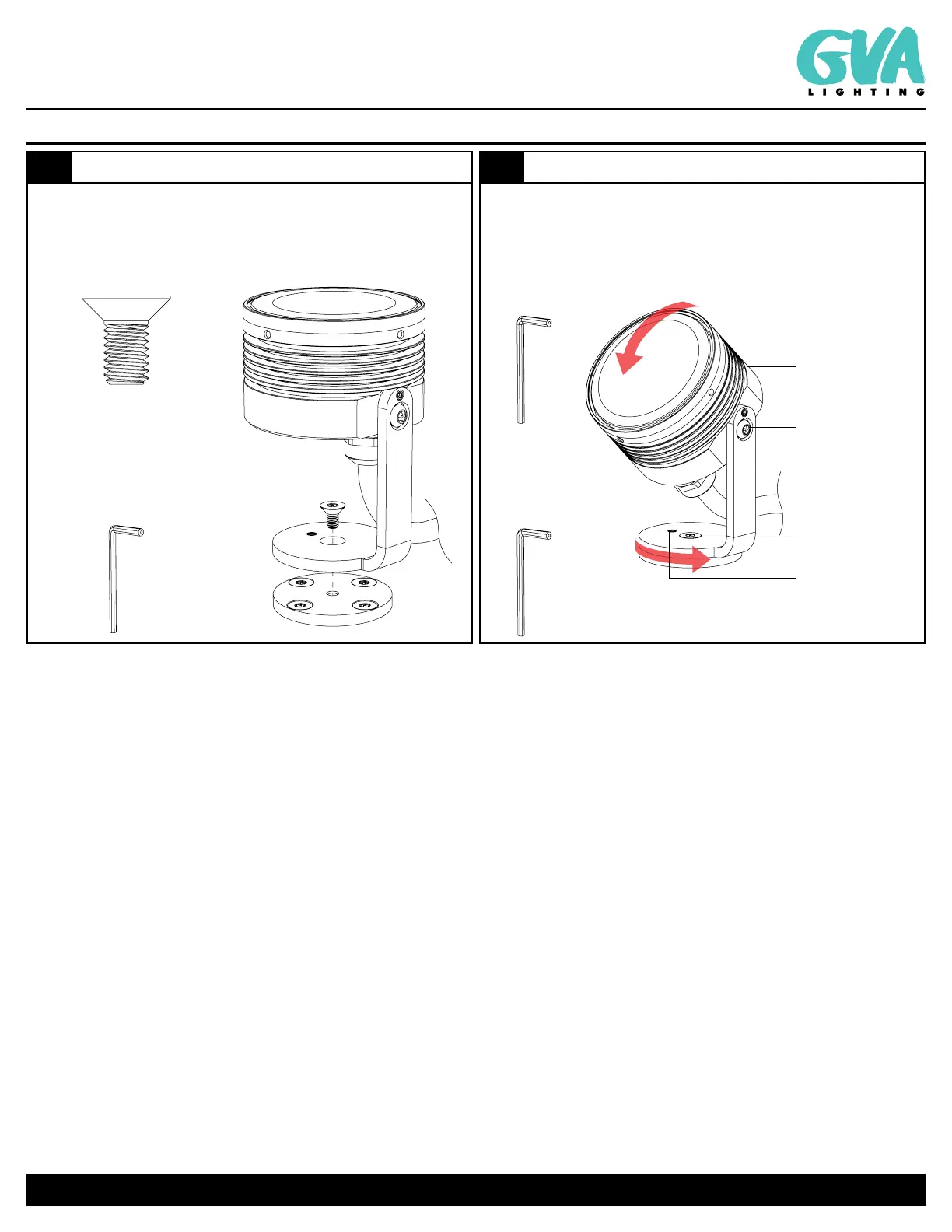

MOUNTING
Using the 1 x No.10-32x0.375in Flathead Screw (supplied) and the 4mm
Pin-in-Hex Security Allen Key (supplied), fasten the luminaire to the mounting
plate.
REQUIRED HARDWARE:
NO.10-32X0.375IN
FLATHEAD SCREW
(supplied)
1X
241620
4MM PIN-IN-HEX
SECURITY ALLEN KEY
(supplied)
1.4
ADJUSTMENT
Bracket is preinstalled on luminaire. Rotate luminaire to desired horizontal
and vertical orientation. Torque the set screws to 1.5Nm to lock the luminaire
in place using 2mm Allen Key (supplied). If required, use 4mm Allen Key
(supplied) to remove bracket screw. Ensure bracket screw is torqued to 2Nm
after adjustments have been made.
241622
2MM ALLEN KEY
(supplied)
SET SCREW
NOTE: TORQUE
SCREW TO 1.5NM
SET SCREW
NOTE: TORQUE
SCREW TO 1.5NM
BRACKET
PREINSTALLED
ON LUMINAIRE
NOTE
: BRACKET SCREW
CAN BE REMOVED.
AFTER ADJUSTMENTS
HAVE BEEN MADE
TORQUE TO 2NM
FLATHEAD SCREW
NOTE: TORQUE TO 2NM
241620
4MM PIN-IN-HEX
SECURITY
ALLEN KEY
(supplied)
