LIRA
™
2.2
PDB-ELV & PS-ELV WIRING DIAGRAMS
WARNING Ensure that AC line voltage is disconnected before making connections to PDB/PS-ELV.

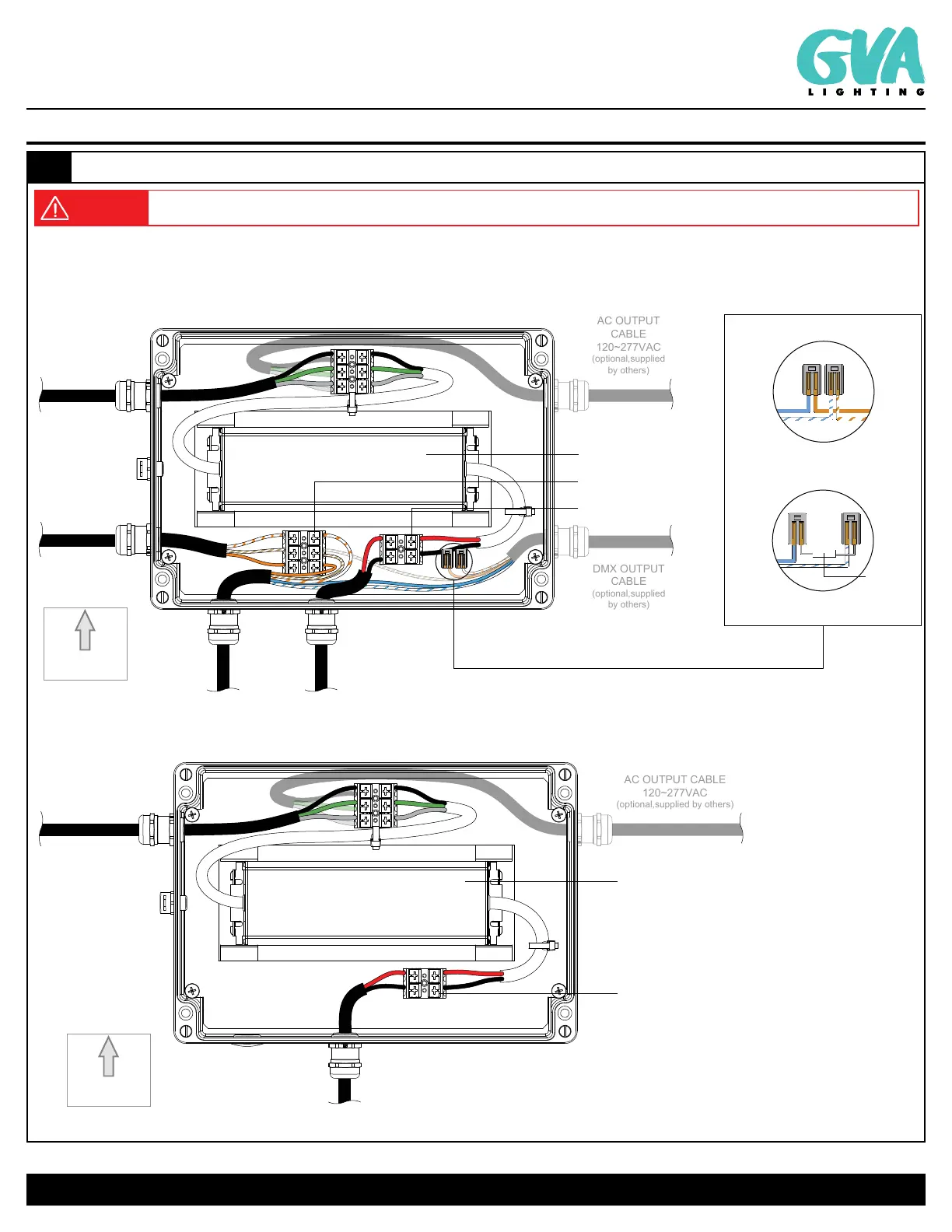

2.2.A PDB-ELV Wiring Diagram
NOTE: Terminate return DMX output (+) and (-) with 120 OHM resistor (GVA PN. 230727).
NOTE: Diagram shows 2C power cable and 5C data cable option. GVA 7C power and data cable available (supplied separately)
OPTION A
(if connecting multiple PDBs)
OPTION B
(if connecting only one PDB or last in line of PDBs)
120 OHM
RESISTOR
230727
DMX
OUTPUT
(from DMX
luminaires or
junction box)
DMX
OUTPUT
(from DMX
luminaires or
junction box)
DMX
OUTPUT
(to next PDB;
becomes
DMX input)
THIS WAY UP
WHEN MOUNTING ON
VERTICAL SURFACES
AC OUTPUT
CABLE
120~277VAC
(optional,supplied
by others)
DMX OUTPUT
CABLE
(optional,supplied
by others)
AC INPUT
CABLE
(120~277VAC,
supplied by others)
DMX INPUT
CABLE
(supplied by others)
VDC OUTPUT TERMINAL
POWER SUPPLY
DMX I/O TERMINAL
2C 24VDC CABLE &
(supplied by others)
5C DMX CABLE
(supplied by others)
2.2.B PS-ELV Wiring Diagram
24VDC OUTPUT CABLE
(to non-dimming luminaires
or junction box, supplied by others)
THIS WAY UP
WHEN MOUNTING ON
VERTICAL SURFACES
AC OUTPUT CABLE
120~277VAC
(optional,supplied by others)
AC INPUT CABLE
(120~277VAC,
supplied by others)
VDC OUTPUT TERMINAL
POWER SUPPLY
