GDS-2000A Series User Manual
210

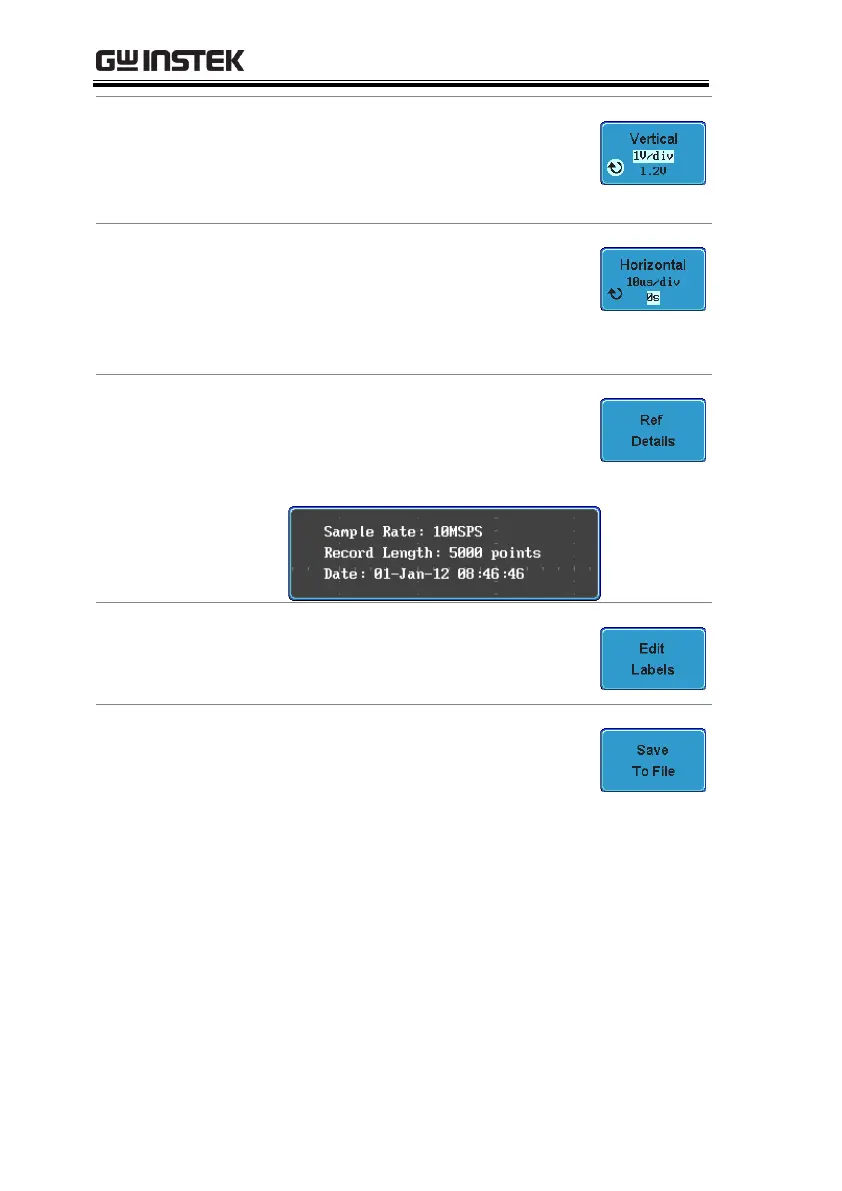

Vertical
Navigation
Press Vertical repeatedly from the side
menu to choose to edit the vertical
position or Unit/Div. Use the Variable
knob to edit the values.
Horizontal
Navigation
Press Horizontal repeatedly from the
side menu to choose to edit the
Time/Div or the horizontal position.
Use the Variable knob to edit the
value.
View Reference
Waveform Details
Pressing Ref Details will display the
reference waveform details.
Details:
Sample Rate, Record Length, Date
Edit Labels
To edit labels for Setup files, press Edit
Labels. For more details on editing
labels, see page 191.
Save Reference
Waveforms
To save reference waveforms, press
Save to File. For more details on saving
waveforms, see page 198.
