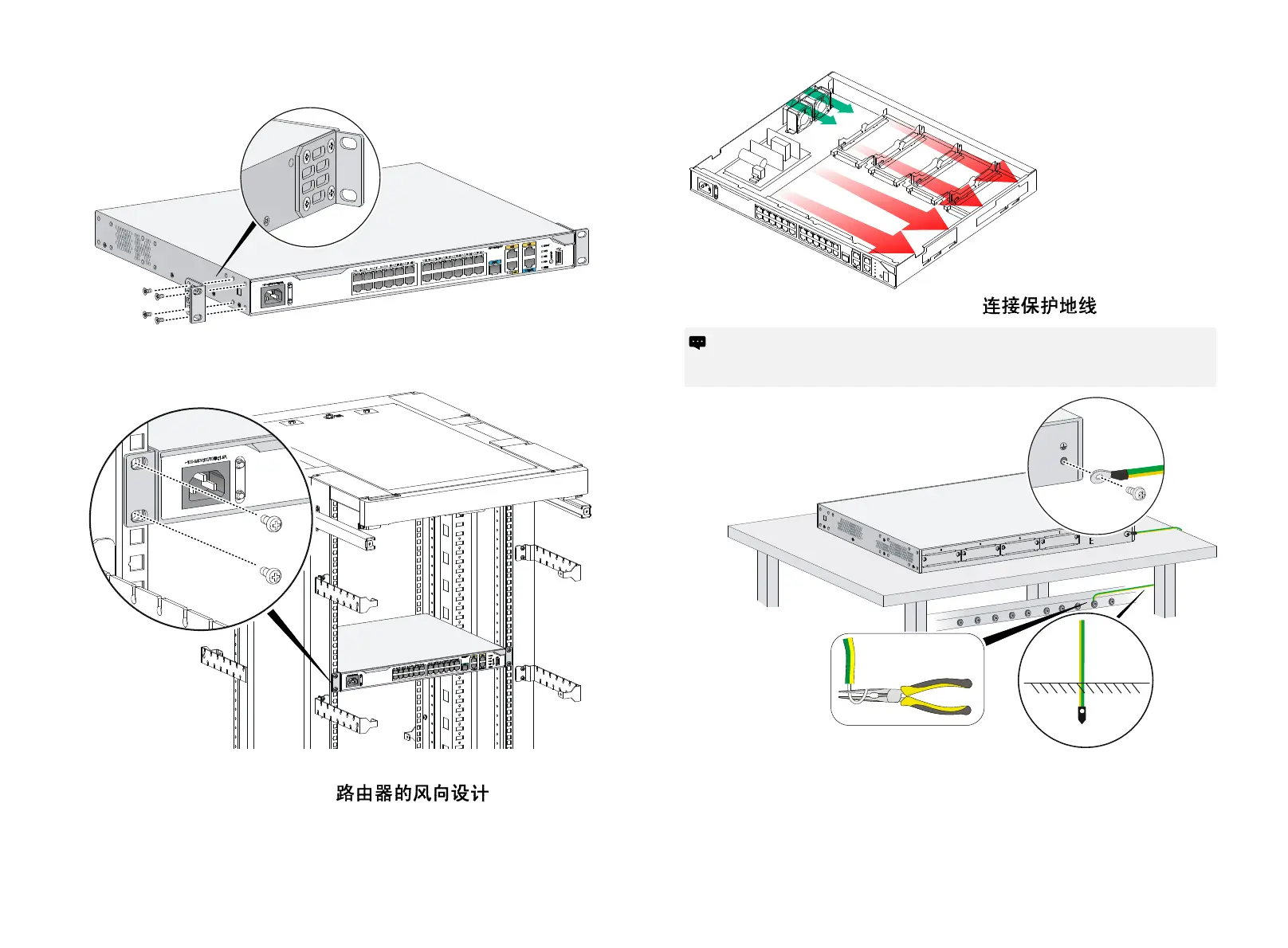

Attach mounting brackets to the router. 安装挂耳到路由器
Mount the router in the rack. 安装路由器到机柜
To ground the router mounteD on a workbench, connect
the ring terminal end of the grounding cable to the router
and the other end to the grounding strip.
路由器安装在工作台时，应将接地线带有OT端子的一端与
路由器相连，另一端与楼宇配线盒的接地排相连
Use needle-nose pliers to bend a hook
at the bare copper end of the grounding
cable, and secure the hook to the
grounding strip with the fastening nut.
使用尖嘴钳将接地线上无绝缘保护层的
一端弯曲成圆弧形状，通过固定螺母将
其旋紧到接地排上
If the installation site has no grounding facilities for
the grounding cable, but earth ground is available,
hammer an angle iron or steel tube into the earth
ground to serve as a grounding conductor.
如果路由器安装环境中不具备专用的接地线连接装
置，也可以采用埋设接地体的方式将设备妥善接地
Connecting the grounding cable
Correctly connecting the router grounding cable is crucial to lightning protection and EMI
protection.路由器地线的正确连接是路由器防雷、防干扰的重要保障，请使用设备随机提
供的保护地线正确接地。
Make sure the air inlet and outlet vents are not blocked and the installation site has a good
ventilation system. 请确保路由器的进、出风孔不被遮挡，并将路由器安装在具有良好通风散
热系统的环境中。
Airflow design of the router
The router uses left-to-right air aisles.
MSR3600路由器采用左进右出的风道设计
