H3C MSR3600 Installation, Quick Start

6
5

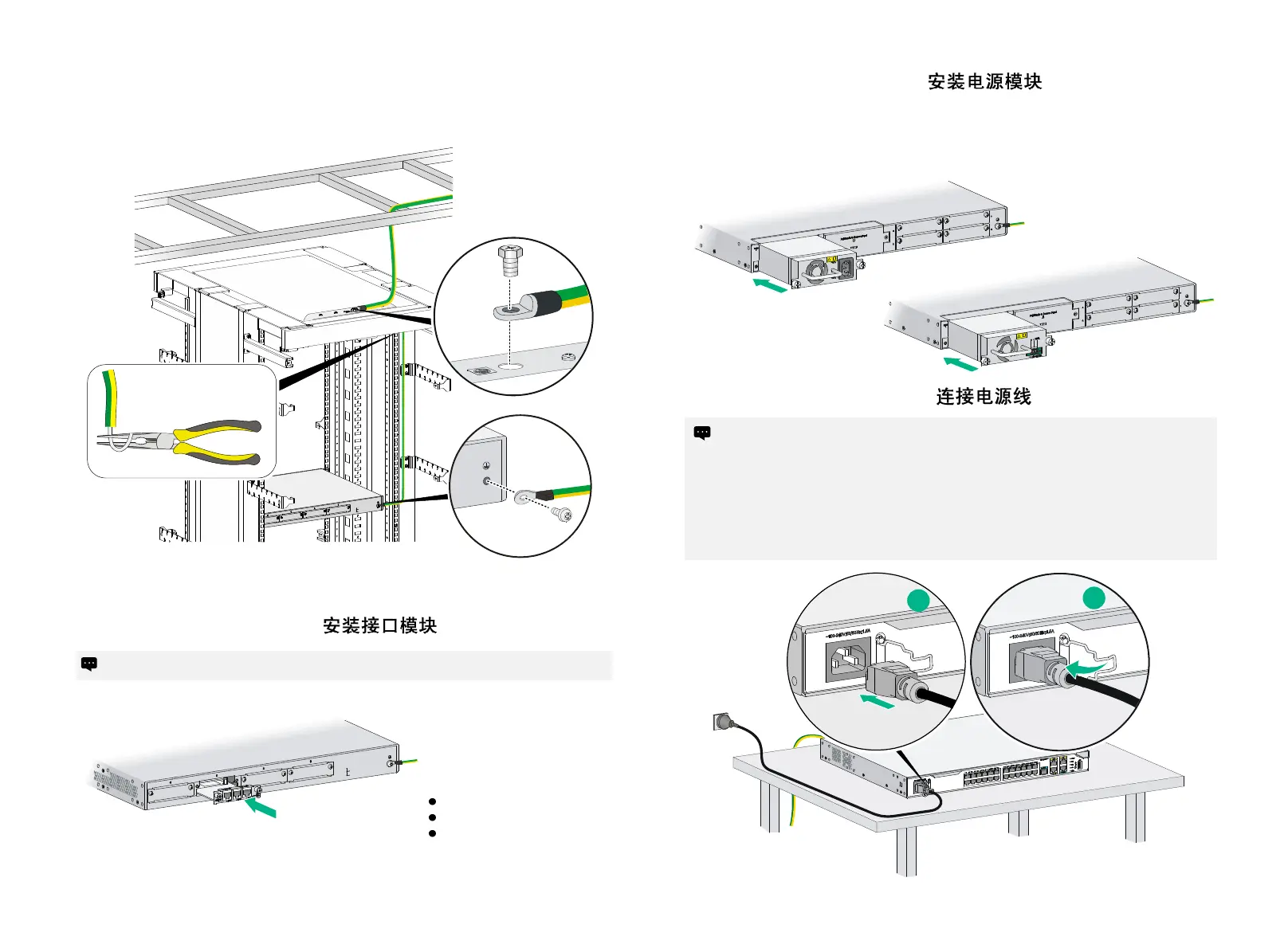

Installing a power module
Before mounting the router on a rack, make sure the rack is reliably grounded.路由器安装在机
柜时，要求机柜已经良好接地
Connect the ring terminal of the grounding cable to the router and the other end of the cable to
grounding terminal on the rack. 将保护地线一端的OT端子与路由器相连，另一端连接接地设备
Connect the building grounding cable to the grounding terminal on the rack. 将楼宇保护地线与
机柜接地端子相连
You can install two power modules on the MSR3600-51 router for redundancy. The power
modules are hot swappable.MSR3600-51路由器最多支持2个电源模块进行冗余备份，电源模
块支持热插拔。
To install a SIC interface card:
1. Remove the filler panel from
the SIC slot.
2. Insert the SIC interface card.
3. Fasten the captive screws.
安装SIC接口模块：
拆卸SIC槽位假面板
插入SIC接口模块
旋紧固定螺钉
Installing an interface card
SIC interface cards are not hot swappable. SIC接口模块不支持热插拔。
AC power module AC电源模块
DC power module DC电源模块
Connecting the power cord
Before connecting the power cord, make sure the router is reliably grounded and the
power source is switched off. 在连接电源线前，需保证设备已正确接地。
Connect the power cord to the router first, and then to the equipment-room power
supply system to avoid bodily injury. 在连接电源线时，请确认路由器电源开关处于关
闭状态，先完成电源线与路由器侧的连接，再进行电源线与机房供电系统的连接，以免
造成人身伤害。
The AC power cord in the figure is only for illustration. 电源线的安装请以实际发货为
准，图片仅供参考。
MSR3600-28/3600-28-SI/3600-51-SI uses built-in power modules. MSR3600-28/3600-28-SI/
3600-51-SI为内置电源款型。
