H3C S6520X-EI Series User Manual

Model
Central
wavelength
(nm)
Connector
Cable/Fiber
type and
diameter (µm)
Modal
bandwidth
(MHz × km)
Max
transmission
distance
QSFP-100G-LR
4-WDM1300
Four lanes:
• 1295.56
• 1300.05
• 1304.58
• 1309.14
LC
Single-mode,
9/125
N/A
10 km (6.21
miles)
QSFP-100G-LR
4L-WDM1300
Four lanes:
• 1271
• 1291
• 1311
• 1331
LC
Single-mode,
9/125
N/A
2 km (1.24
miles)
QSFP-100G-PS
M4-SM1310
1310 MPO
Single-mode,
9/125
N/A
0.5 km (0.31
miles)

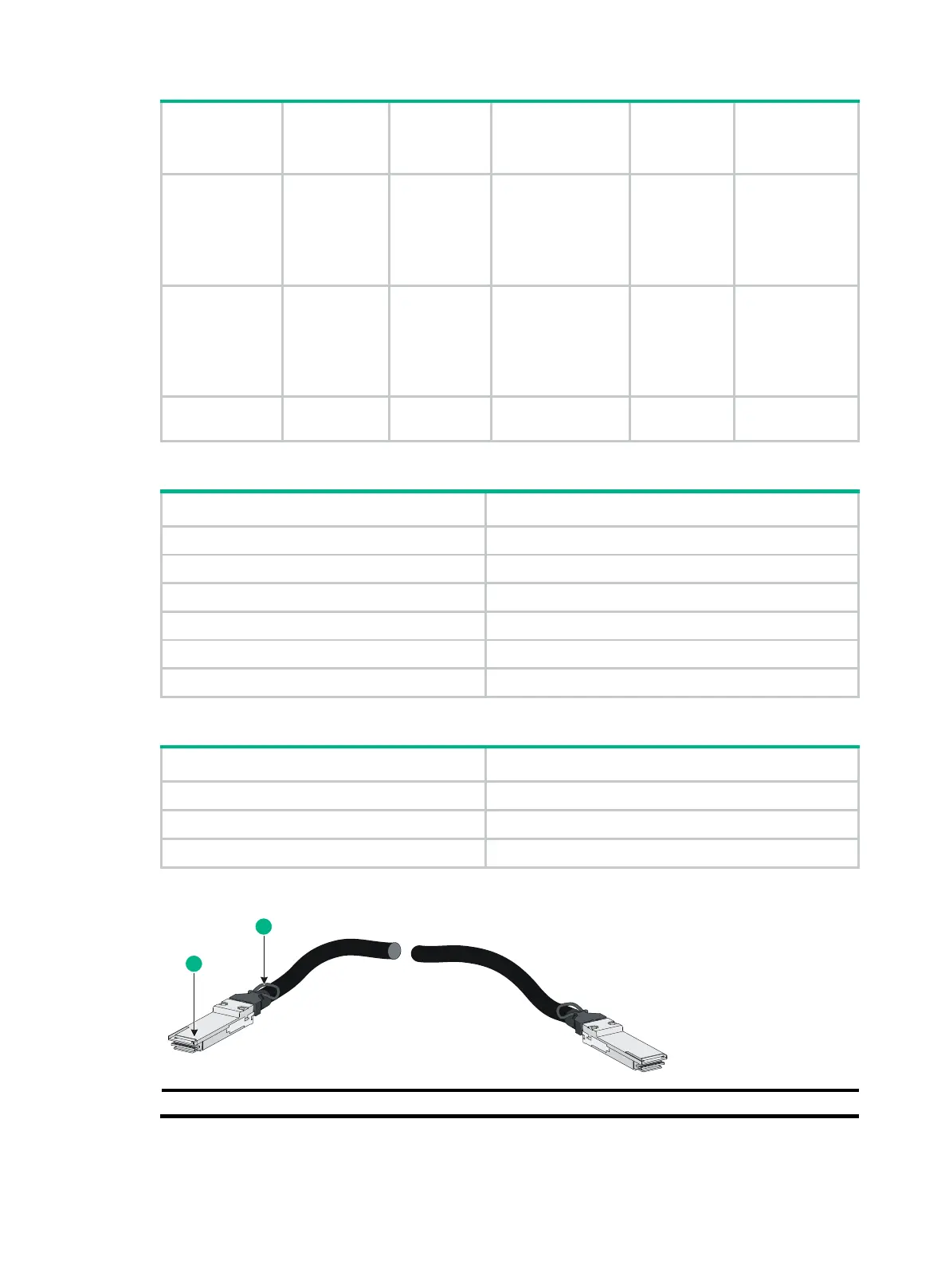

Table4-14 QSFP28 cables available for the QSFP28 ports
Model Max transmission distance
QSFP-100G-D-CAB-1M 1 m (3.28 ft)
QSFP-100G-D-CAB-3M 3 m (9.84 ft)
QSFP-100G-D-CAB-5M 5 m (16.40 ft)
QSFP-100G-D-AOC-7M 7 m (22.97 ft)
QSFP-100G-D-AOC-10M 10 m (32.81 ft)
QSFP-100G-D-AOC-20M 20 m (65.62 ft)
Table4-15 QSFP28 to SFP28 cables available for the QSFP28 ports
QSFP28 fiber cable Max transmission distance
QSFP-100G-4SFP-25G-CAB-1M 1 m (3.28 ft)
QSFP-100G-4SFP-25G-CAB-3M 3 m (9.84 ft)
QSFP-100G-4SFP-25G-CAB-5M 5 m (16.40 ft)
Figure4-5 100G QSFP28 cable
(1) QSFP28 module
(2) Pull latch
1
2
