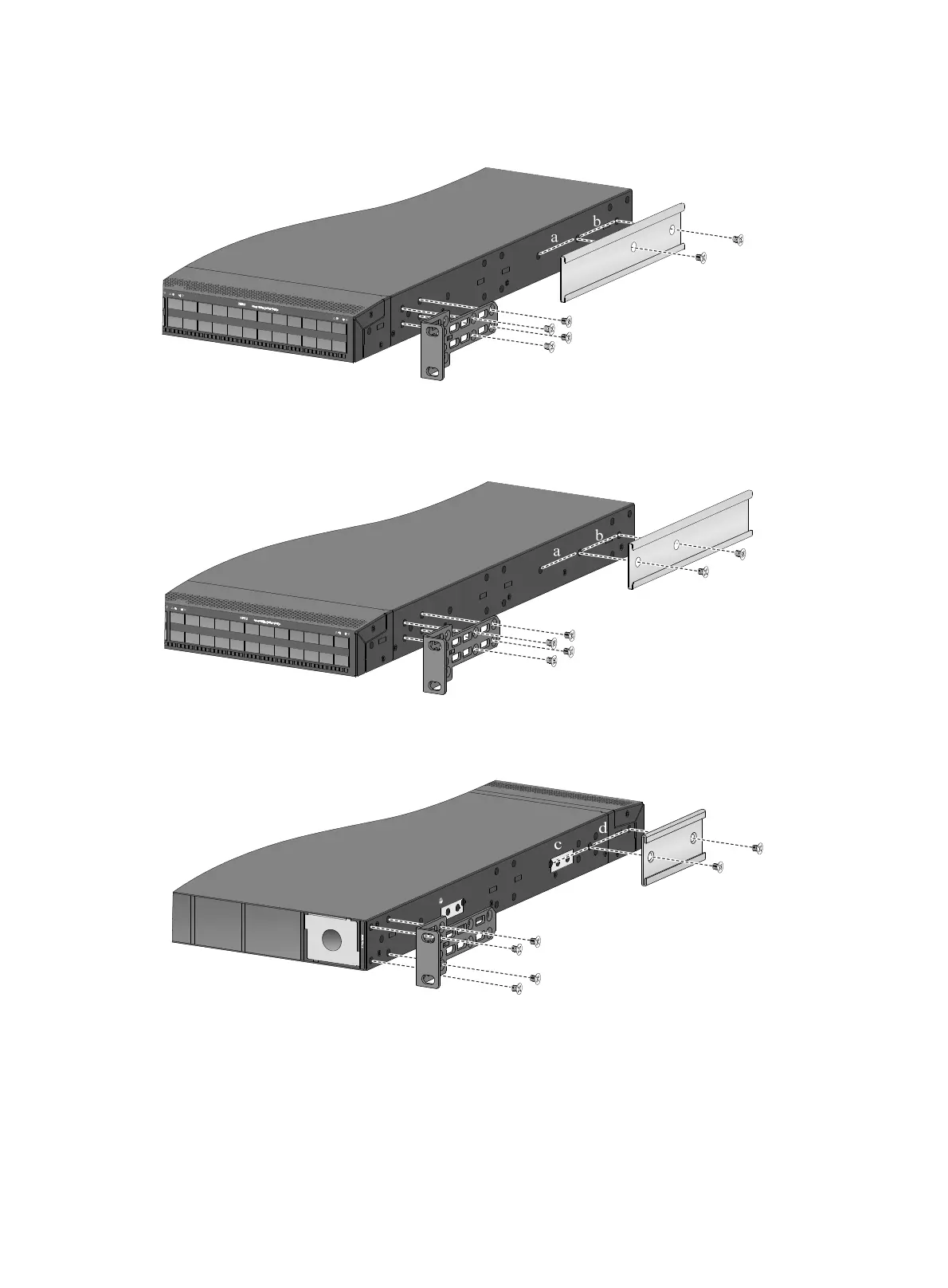

Figure 23 Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(port-side mounting position for the mounting brackets, super-short slide rails, chassis rails
not reaching out of the chassis)
Figure 24 Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(port-side mounting position for the mounting brackets, super-short slide rails, chassis rails
reaching out of the chassis)
Figure 25 Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(power module-side mounting position for the mounting brackets, long slide rails)
