18

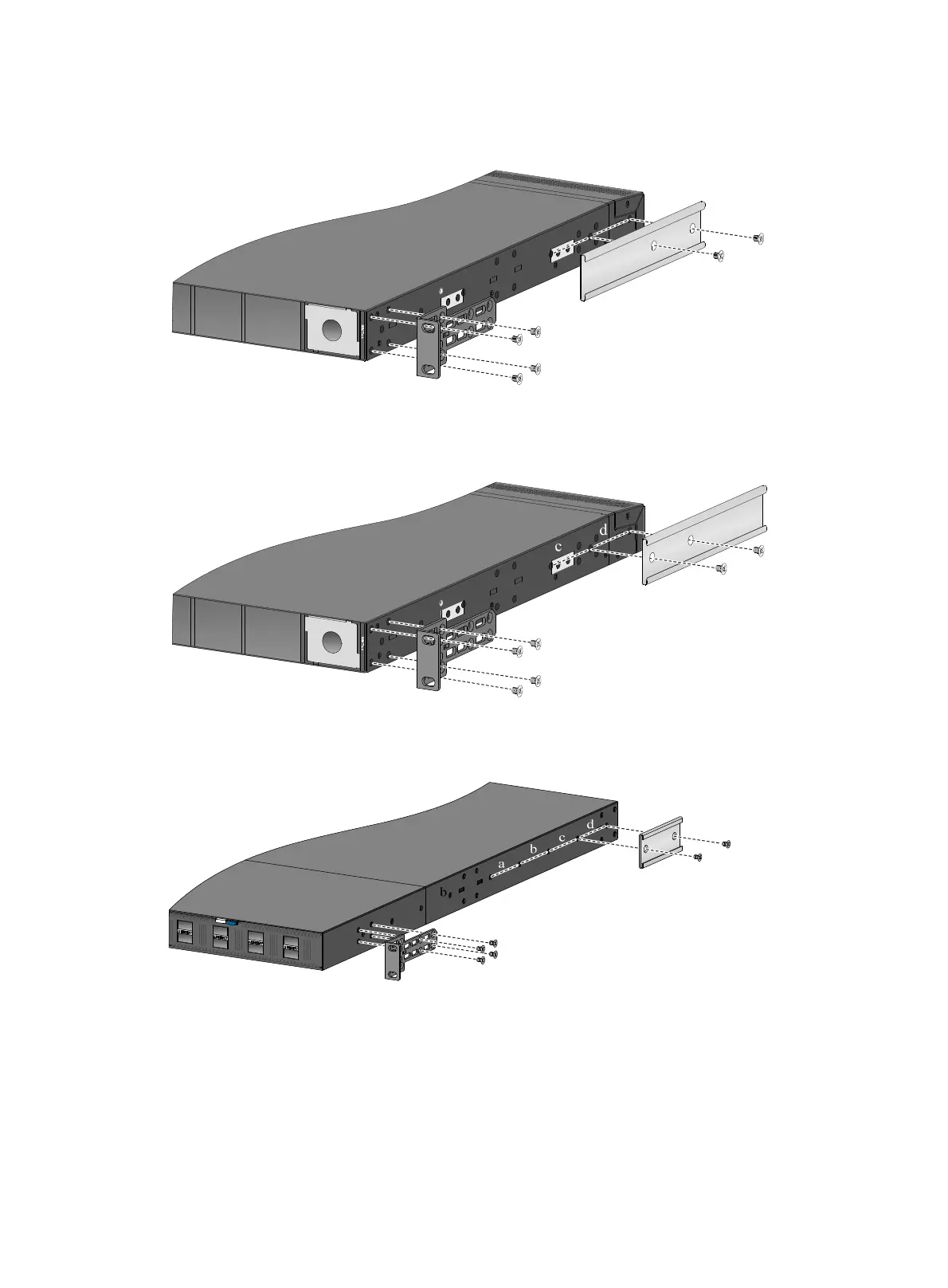

Figure 26 Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(power module-side mounting position for the mounting brackets, super-short slide rails,
chassis rails not reaching out of the chassis)
Figure 27 Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(power module-side mounting position for the mounting brackets, super-short slide rails,
chassis rails reaching out of the chassis)
Figure 28 Attaching the mounting brackets and chassis rails to the S6850-2C switch
(port-side mounting position for the mounting brackets)
c
d
