Application scenario-based networking
As shown in Figure 5, connect the management interface, internal interface GE 1/0/2, and external
interface GE 1/0/1 of the device. The internal interface acts as a LAN port and is typically added to
the Trust security zone to connect the intranet host. The external interface acts as a WAN port and
is typically added to the Untrust security zone to connect the carrier network for external
communication.
To configure the device from the CLI, use the console cable to connect the serial port on the
management PC to the console port on the device for first login.

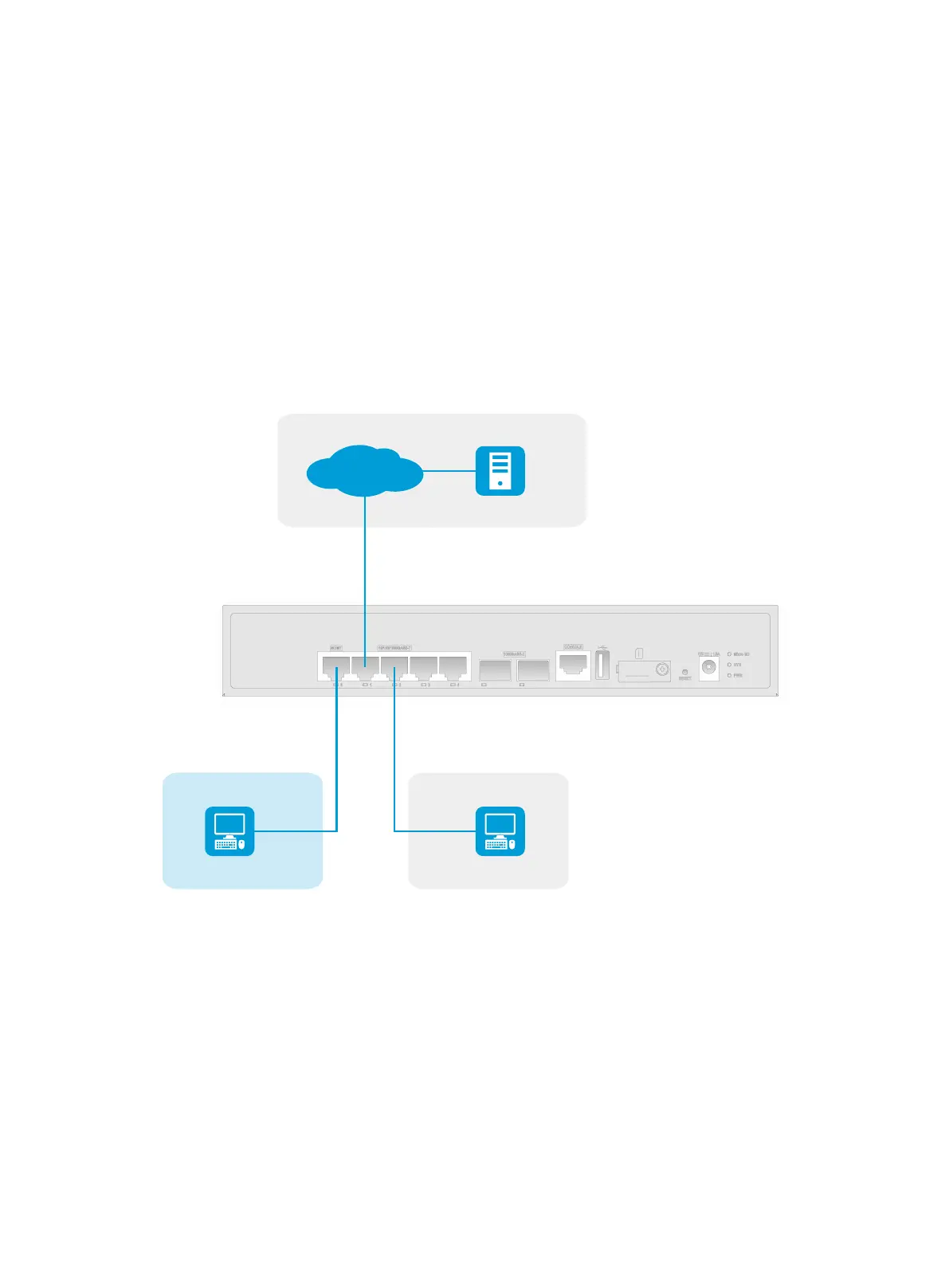

Figure 5 Connecting cables
Logging in to the Web interface
Restrictions and guidelines
As a best practice, using the following browsers:
•
Chrome 40 and higher
•
Firefox 19 and higher.
•
Internet Explorer 10 and higher.
GE1/0/1
202.0.0.1
MGE1/0/0
192.168.0.1
GE1/0/2
176.16.1.254
Untrust
ISP
Web server
www.example.com
Management Trust
Administrator Host Intranet Host
