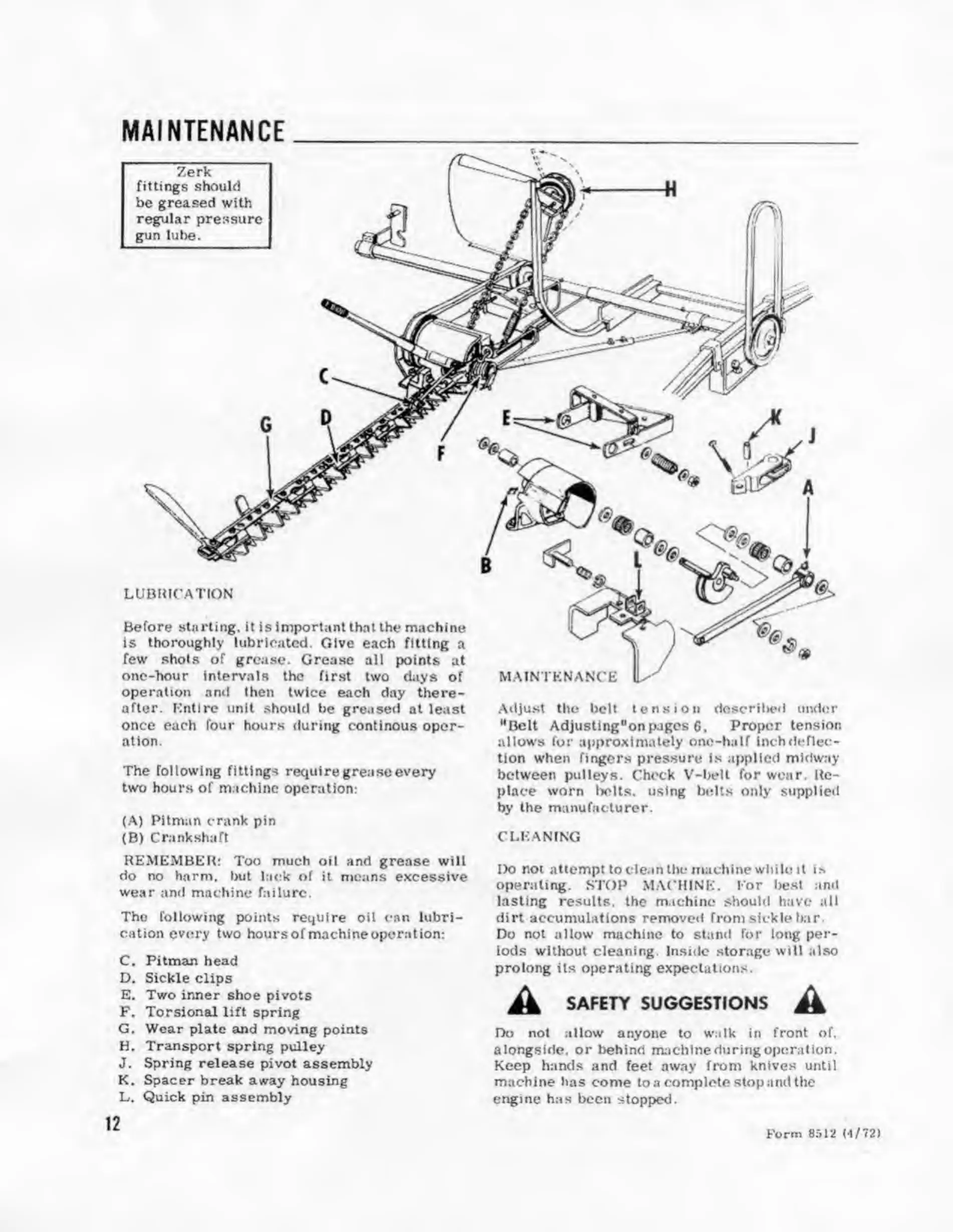

MAINTENANCE
Zerk
fittings should
be greased with
regular pressure
gun lube.
LUDHTCATION
Before starting, it is importunt that the machine
Is thoroughly lubriout^. Give each fitting a
few shots of grease. Grease all points at
one-hour Intervals the first two days of
operation and then twice each day there-'
after. Entire unit should be grea$e<l at least
once each four hours during continous oper¬
ation.
The following fittings require grease every
two hours of machine operation:
(A) Pitman crank pin
(B) Crankshaft
MATNTKNANCE
Adjust the bell l e n s i o n rtoscril>ed under
“Belt AdJusting°onp*tges Proper tension
allows for approximately one-half Inch deflec¬
tion when fingers pressure is applied midway
between pulleys. Chock V-belt for wear. Ue-
place worn l)elts. using bells only supplied
by the manufacturer.
CLEANING
REMEMBER: Too much oil and grease will
do no harm, but lack of it means excessive
wear and machine failure.
The following points require oil can lubri¬
cation every two hours of machineoperation:
C» Pitman head
D. Sickle clips
£. Two inner shoe pivots
F. Torsional lift spring
G. Wear plate and moving points
H. Transport spring pulley
J. Spring release pivot assembly
K» Spacer break away housing
L. Quick pin assembly
12
1)0 not attempt to clean the machine while it is
operating. STOP MACHINE. For best :md
lasting results, the m.ichine should have ull
dirt accumulations removed from sickle bar.
Do not allow machine to stand for long per¬
iods without cleaning. 1n.si<ic storage will also
prolong its operating expectations.
A SAFETY SUGGESTIONS A
Do not allow anyone to walk in front of.
alongside, or behind machine during operation.
Keep h:inds and feet away from knives until
machine has come to a complete stop and the
engine has been stopped.
Form 8512 {At 12)
