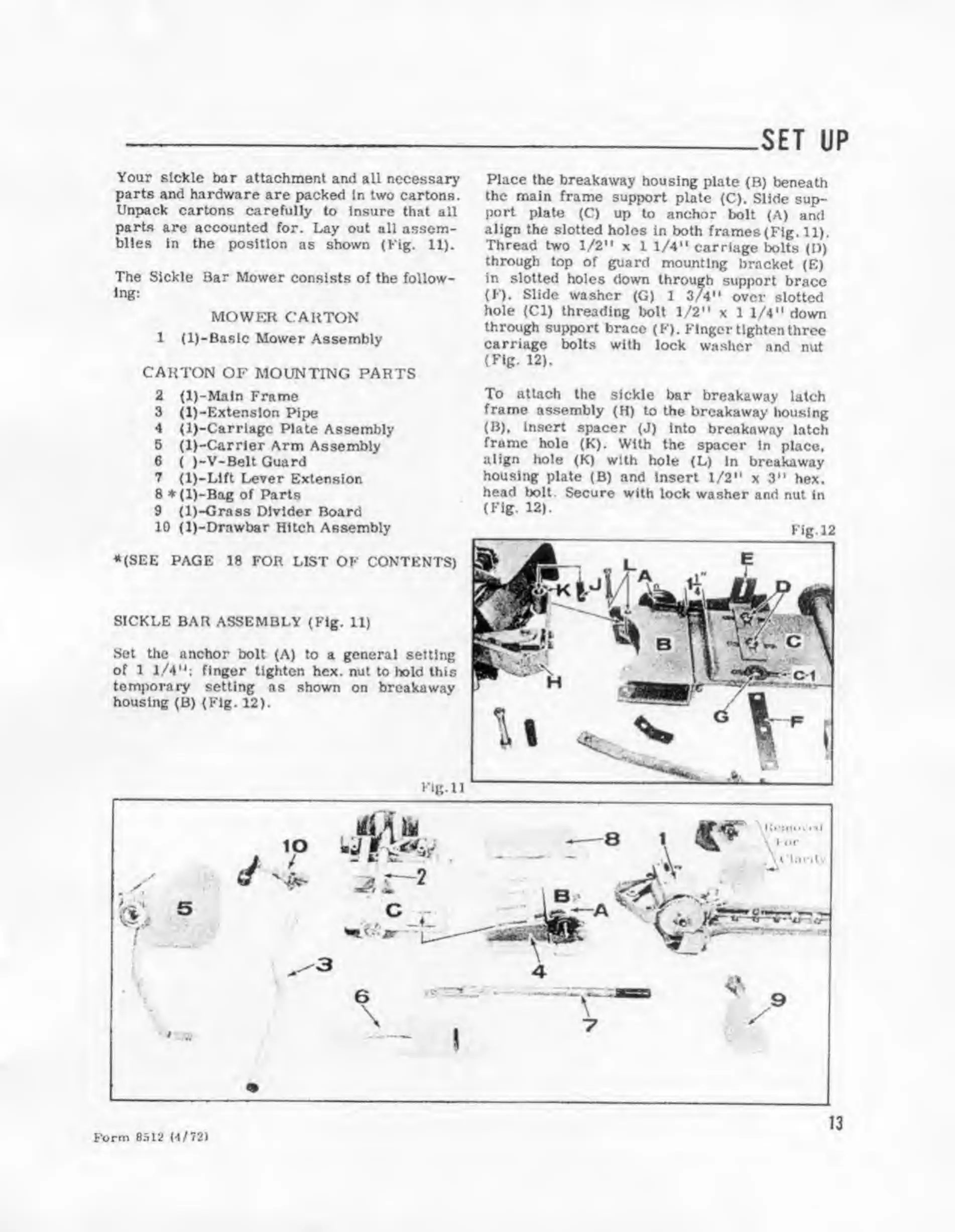

SET UP
Your slcKle bar attachment and all necessary
parts and hardware are packed In two cartons.
Unpack cartons carefully to Insure that all
parts are accounted for. Lay out all assom-
bllea in the position as shown (Kig. II).
The Sickle Bar Mower consists of the follow¬
ing:
mowe:r carton
1 ( l)-Basic Mower Assembly
CARTON or MOUNTING PARTS
Place the breakaway housing plate (B) beneath
the main frame support plate (C). Slide sup¬
port plate (C) up to anchor bolt (A) and
align the slotted holes In both frames (Fig. 11).
Thread two 1/2'^ x 11/4^' carriage bolts (0)
through top of guard mounting bracket (E)
in slotted holes down through support brace
(F). Slide washer (G) I 3/4‘^ over slotted
hole (Cl) threading bolt 1/2* ‘ x 11/4** down
through support brace (K). Finger tighten three
carriage bolts with lock washer and nut
(Fig. 12).
To attach the sickle bar breakaway latch
frame assembly (H) to the breakaway housing
(B), in.sort spacer (J) into breakaway latch
frame hole (K). With the spacer in place,
align hole (K) with hole (L) in breakaway
housing plate (B) and Insert 1/2** x 3** hex.
head boU. Secure with lock washer and nut in
(Fig. 12).
2 (l)-Maln Frame
3 (l)-Extenslon Pipe
4 (l)-Carriagc Plate Assembly
5 (l)-Carrler Arm Assembly
6 ( }-V-Belt Guard
7 {1)-Llft Lever Extension
8 * (1)-Bag of Parts
9 (1}-Grass Divider Board
10 (l)-Drawbar Hitch Assembly
^‘(SEE PAGE 18 FOR LIST OF CONTENTS)
SICKLE BAR ASSEMBLY (Fig. 11)
Set the anchor bolt (A) to a general setting
of 1 1/4finger tighten hex. nut to hold this
temporary setting as shown on breakaway
housing (B) (Fig. 12).
Form 8512 {A/12)
