SET UP

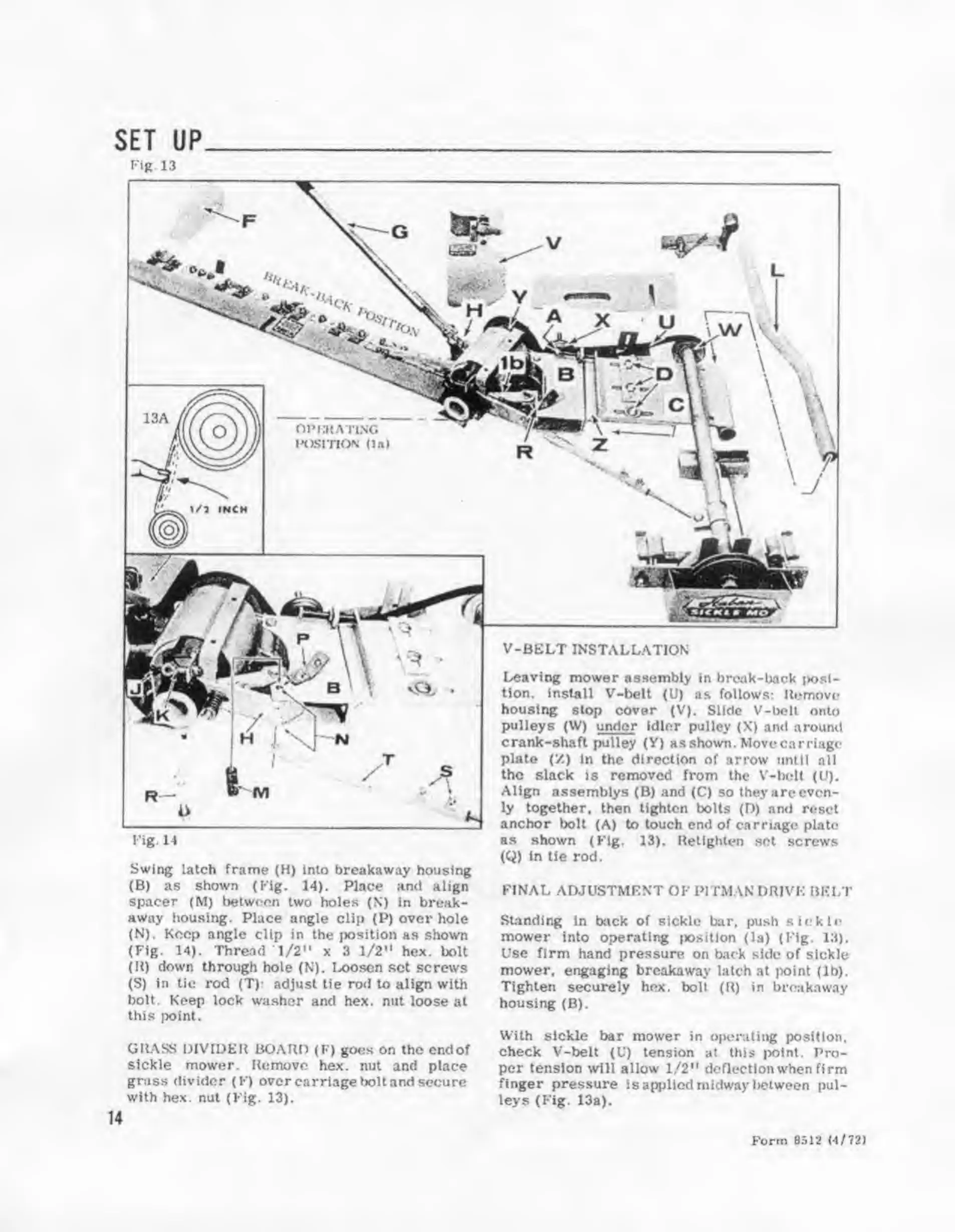

Fig. 13
Fig. 14
Swir^ latch frame (H) into breakaway housing
(B) as shown (Fig. 14). Place ami align
spacer (M) between two holes (N) in break¬
away housing. Place angle clip (P) over hole
(N). Keep angle clip in the position as shown
(Fig, 14). Thread 1/2** x 3 1/2** hex. bolt
(H) down through hole (N). Loosen set screws
(S) in tic rod (T)* adjust tie rod to align with
bolt. Keep lock washer and hex. nut loose at
this point.
V-BELT INSTALL/VTION
Leaving mower assembly In break-back )>05i-
lion, install V-belt (U) as follows: Itemov<*
housing stop cover (V). Slide V-belt onto
pulleys (W) under Idler pulley (X) an<l around
crank-shaft pulley (Y) asshown. Move carriage
plato {/) In the direction of arrow until nil
the slack is removed from the V-holl (U).
Align assemblys (B) and (C) so they are even¬
ly together» then tighten bolts (D) an<i reset
anchor bolt (A) to touch end of carriage plato
as shown (Fig. 13). Retighlen set screws
(Q) in tie rod.
FINAL ADJUSTMENT OF PITMAN DRIVE BELT
Standing In back of sickle bar. push stcklo
mower into operatir^ position (la) (Fig. 13).
Use firm hand pressure on back side of sickle
mower, engaging breakaway latch at ]>oint (lb).
Tighten securely hex. boll (ft) in br(?akaway
housing (D).
GILXSS DIVIDER BOARD (F) goes on the end of
sickle mower. Remove hex. nut and place
grass divider (F) overcarriage>x:)Uand secure
with hex. nut (Fig. 13).
With sickle bar mower in operatit^ position,
check V-belt (U) tension at this point. Pro¬
per tension will allow 1/2** deflection when firm
finger pressure is a^^licd midwayl)etwecn pul¬
leys (Fig. I3a>.
Form 8512 <4/721
