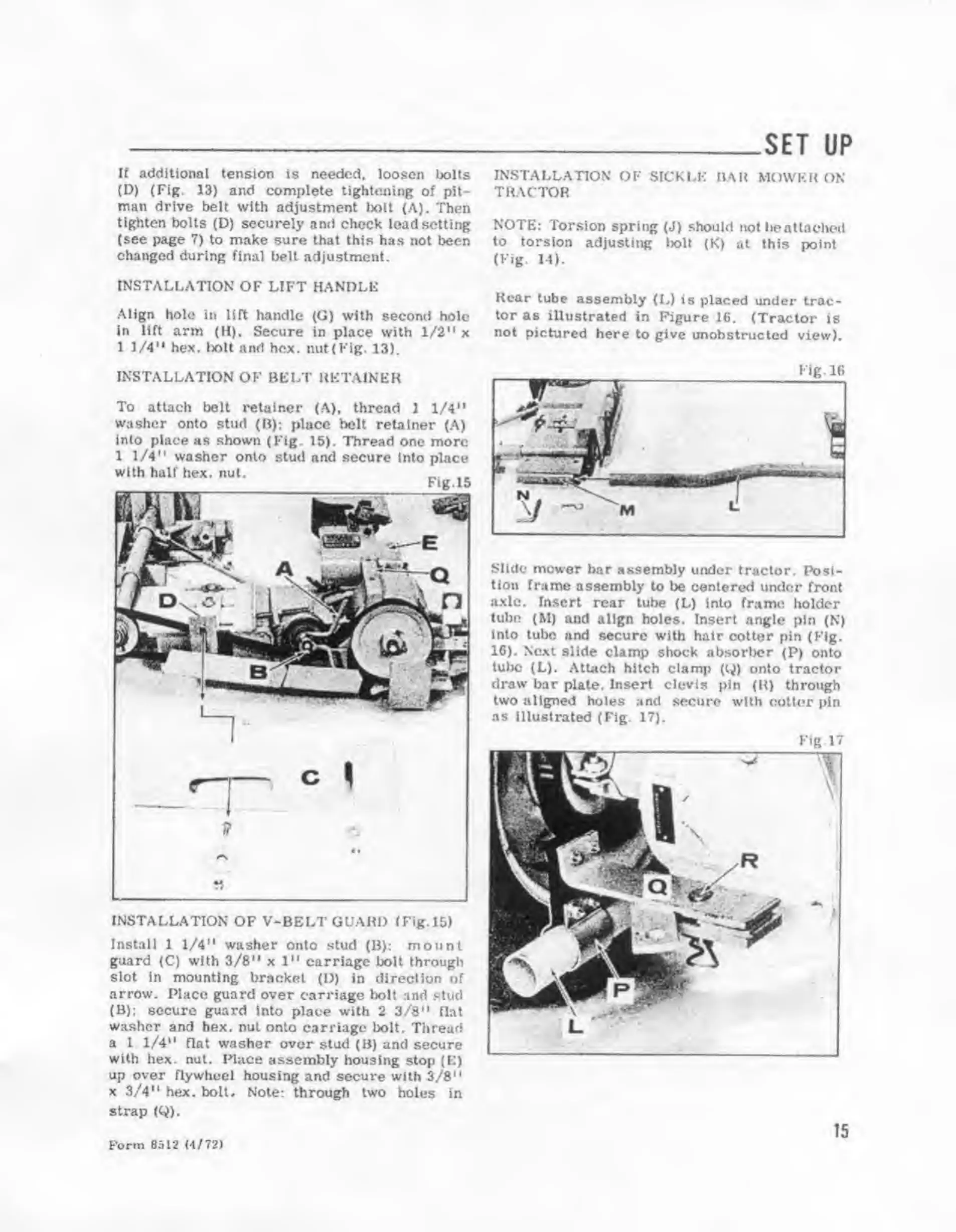

Haban 402-E - Page 15

U additional tension is needed, loosen lx>its
(D) (Fig. 13) and complete tightening of pit¬
man drive belt with adjustment bolt (A). Then
tighten bolts (D) securely and check load setting
(see page 7) to make sure that this has not been
changed during final belt adjustment.
INSTALLATION OF LIFT HANDLK
Align hole in lift handle (G) with second hole
In lift arm (H). Secure in place with 1/2" x
1 3/4" hex. toll and hex. nut (Fig. 13).
INSTALLATION OF BKLT KKTAINER
_SET UP
INSTALLATION OF SICKLF l\AU MOWKU ON
TRACTOR
NOTE: Torsion spring (J) should noMjenttochcil
to torsion adjusting lx>lt (K) at this point
(Fig 14).
Rear tube assembly (L) is placed under trac¬
tor as illustrated in Figure 16. (Tractor is
not pictured here to give unobstructed view).
To attach belt retainer (A), thread 1 1/4"
washer onto stud (B): place belt retainer (A)
Into place as shown (Fig. 15). Thread one more
1 1/4" washer onto stud and secure Into place
with half hex. nut.
INSTALLATION OF V-BELT OUAHJ) (Fig. 15)
Install 1 1/4" washer onto stud (13): mount
guard (C) with 3/8" x 1" carriage bolt through
slot in mounting bracket (II) in direction of
arrow. Place guard over carriage bolt and stud
(B); secure guard Into place with 2 3/8" flat
washer and hex. nut onto carriage bolt. Thread
a 1 1/4" flat washer over stud (B) and secure
with hex. nut. Place assembly housing stop (E)
up over riywbooi housing and secure with 3/8"
X 3/4" hex. boll# Note: through two holes in
strap (Q).
Slide mower bar assembly under tractor. Posi¬
tion frame assembly to be centered under front
axle. Insert rear tube (L) into frame holder
tube (M) and align holes. Insert angle pin (N)
into tube and secure with hair cotter pin (Fig,
16). Next slide clamp shock absortor (P) onto
tube (L). Attach hitch clam|} (Q) onto tractor
draw bar plate. Insert clevis pin (R> through
two aligned holes and secure with cotter pin
as illustrated (Fig. 17).
Form 8512 (4/72)
15
