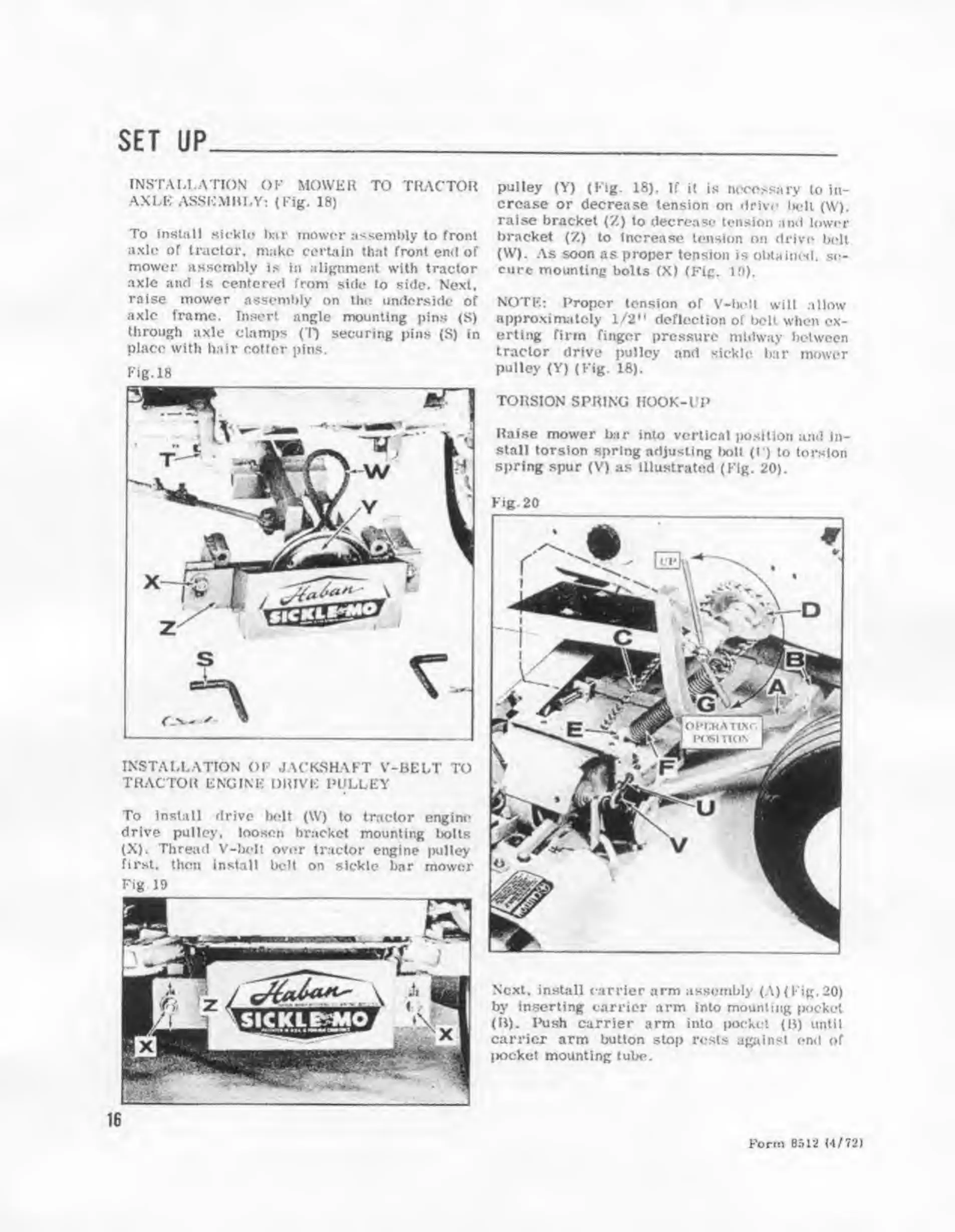

SET
UP
INSTAtJ.ATION
OV
MOWER
TO
TRACTOR
AXLE
ASSEMRKY:
{Fig.
18)
To
inslail
slcklo
l>:ir
inowor
assembly
to
front
axlo
of
tractor,
make
certain
that
front
end
of
mower
assembly
Is
in
alignment
with
tractor
axle
and
t<i
centered
from
side
to
Ride,
Next,
raise
mower
assembly
on
ihv.
ondersicio
of
axle
frame.
Insert
angle
mounting
pins
(S)
through
axle
clamps
(
H
securing
pins
(S)
in
place
with
hair
cotter
pins.
Fig.lS
INSTALLATTON
OF
J.XCKSHAFT
V-BELT
TO
TELXCTOR
ENG
INK
OUIVE
PULLEY
To
install
drive
belt
(VV)
to
tractor
engim'
drive
pulley,
loosen
bracket
mounting
lx>lls
(X).
Threatl
V-beU
ovt*r
tractor
engine
jHillcy
first,
then
install
belt
on
sickle
bar
mower
Fig
19
16
pulley
(Y)
(Fig.
18).
If
it
is
m^oossary
to
in¬
crease
or
decrease
tension
on
tirivt'
Indi
(W).
raise
bracket
(Z)
to
decrea.se*
tension
ami
lower
bracket
{?.)
to
Increase
tension
oti
driV('
bell
(W),
.As
soon
as
proper
tension
is
oblaintnl,
s<*-
cure
mounting
bolts
(X)
(Fig.
10),
NOTH:
Proper
tension
of
V-1
mMI
will
allow
approxirreitcly
1/2"
deflection
of
l>cU
when
ex¬
erting
firm
fiiigor
pressure
midway
between
tractor
drive
pulley
and
.sickle
liar
mower
pulley
(Y)
(Fig.
18).
TORSION
SPRING
HOOK-UP
Raise
mower
bar
into
vorllcal
po.silion
urul
In¬
stall
torsion
spring
adju<;tlng
toll
(
1
)
to
lorsion
spring
spur
(V)
as
illustrated
(Fig.
20).
Fig.
20
Next,
install
<*arrier
arm
usKombly
(.\)<Fip.20)
by
Inserting
carrier
arm
Into
mounting
pocket
(H).
lAish
currier
arm
into
jiorkel
(H)
until
carrier
arm
button
.slop
rests
agiilnsi
ond
of
|)Ocket
mounting
tuto.
Form
851*2
(4/72)
