User Guide
TGT. 27.09.2017 Technical Page 7 of 20
©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017

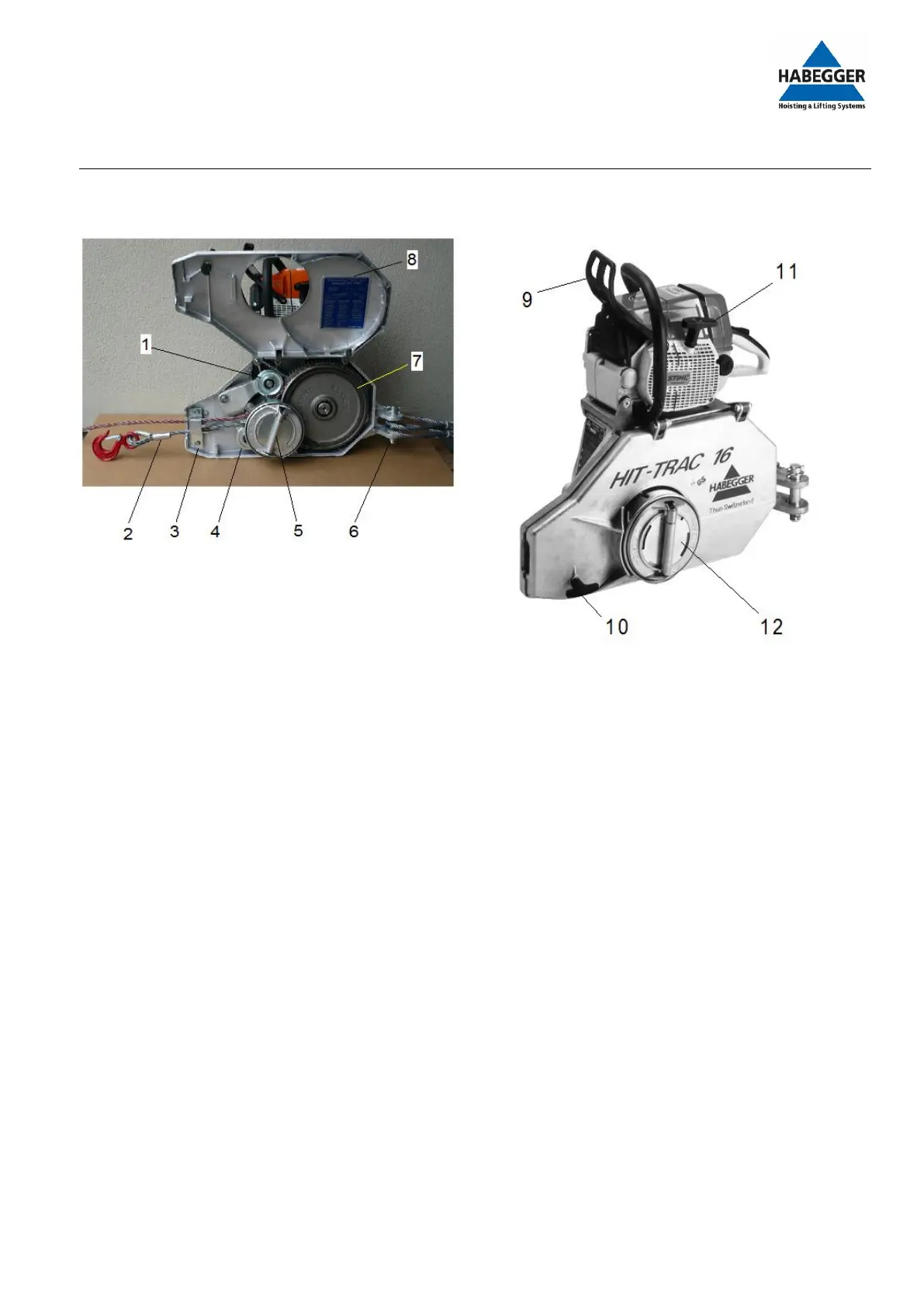

2 Assembly and performance
1
2
3
4
5
6
7
8
9
10
11
12
Thrust roller
Compression sleeve
Rope guide
Guiding pulley
Lowering brake
Anchor bolts
Driving wheel
Information sign
Chain brake
Cover fastening
Starter motor
Driving plate
