sc1000 Panel Mount Bracket
Optional bulkhead connector installation
The optional bulkhead connector (Cat. No. 71211-00) is available for separate purchase for
mounting on panels of ¼-inch or greater thickness.
1. Thread the isolator washer (Figure 3, item 4) onto the connector, noting the orientation.
2. From the display module side of the panel, thread the isolator washer (Figure 3, item 3),
lock washer (Figure 3, item 2) and lock nut (Figure 3, item 1) onto the probe module side
of the panel and hand-tighten.

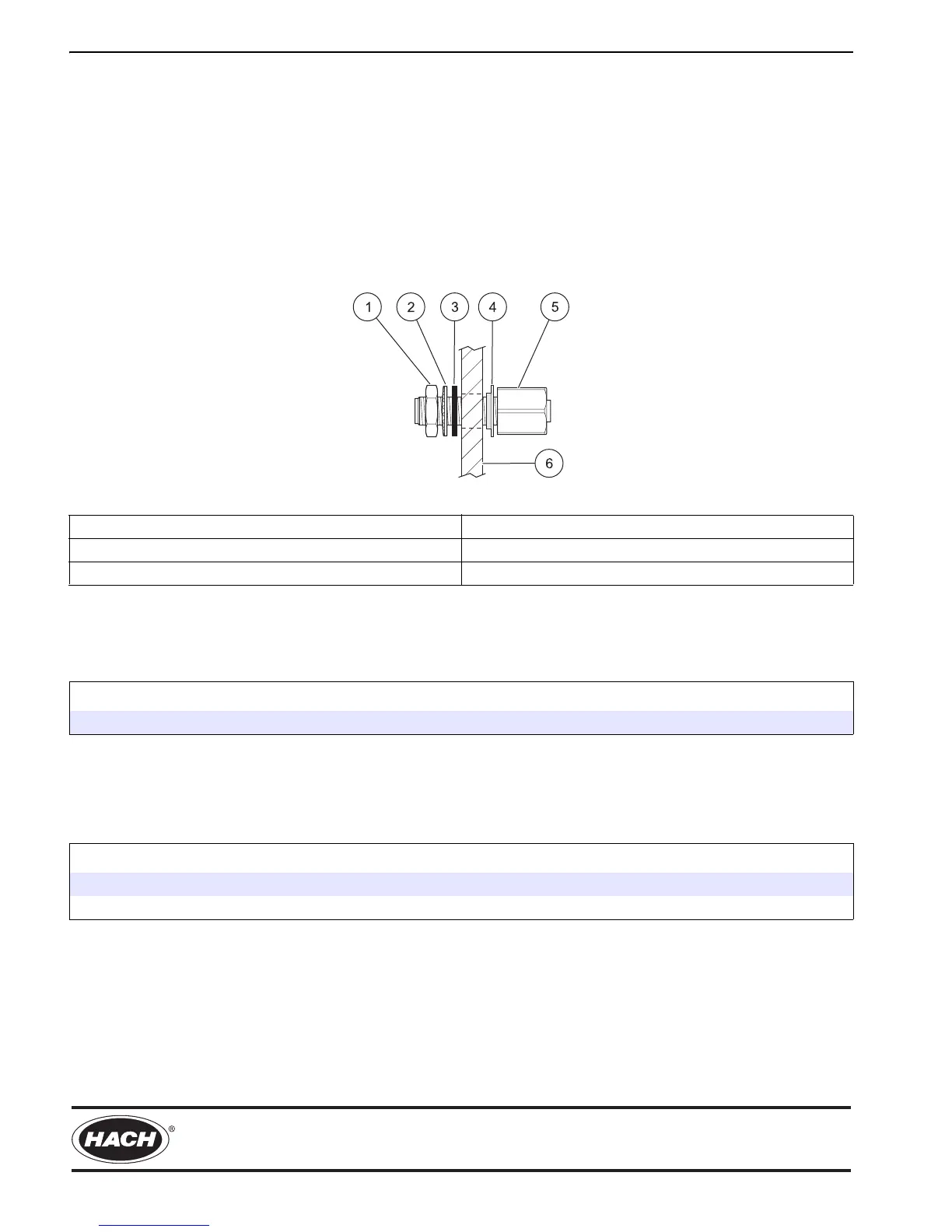

Figure 3 Optional bulkhead connector (Cat. No. 71211-00)
1 Lock nut (probe module side) 4 Isolator washer
2 Lock washer 5 Bulkhead connector housing
3 Isolator washer 6 Mounting panel
Replacement parts
Description Quantity Catalog Number
Strain Relief 1 6128701
Optional parts and accessories
Description Quantity Catalog Number
Connector, bulkhead 1 7121100
Extension Cable, 15 m 1 5796100
© Hach Company, 2006 All Rights Reserved. Printed in the U. S. A. Edition 1 June 2006 te/dk

Hach sc1000 Specifications

General

Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Inputs	Up to 2 digital or analog sensors
Outputs	2 analog, 2 relay
Communication	Modbus
Power Supply	100-240 VAC
Enclosure Rating	IP66, NEMA 4X
