BloodTrack Kiosk® V5 Installation Guide
HAE: SM-BloodTrack-08(AA) SBC100xxx
GBE: 2000-JNB0012 41

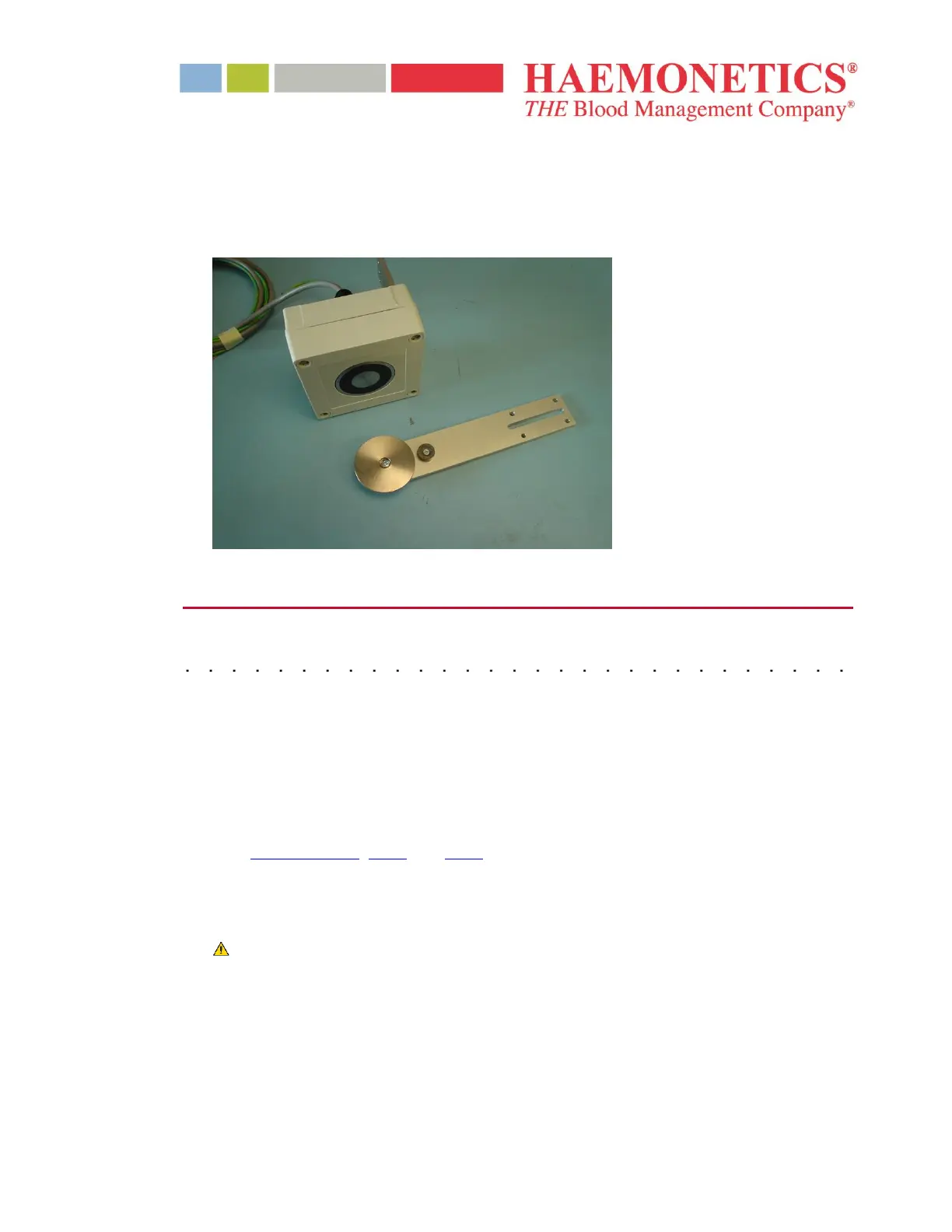

Mounting bracket on rear of electromagnet and two cables—signal and protective
earth
Door armature and door closed sensor activation magnet
Figure 16 Electromagnetic lock and armature
6.2 Connections
To connect the electromagnet lock to the terminal block socket on the left hand I/O
coastline of the BloodTrack Kiosk V5, use only the following Haemonetics-
approved screened four-core cable type:
• Alpha Wire 5104C 4C 22 AWG Xtra-Guard Shielded UL Type CM 105C.
Use only the following Haemonetics-approved connector:
• Würth Elektronik 691364100006 or Phoenix Contact MC 1,5/ 6-ST-3,81.
Refer to Sections 6.2.1, 8.3.2 and 8.3.6 regarding connections to the BloodTrack
Kiosk V5.
6.2.1 Safety Earth
WARNING!
To avoid risk of electric shock, this Haemonetics-approved magnetic lock
must be reliably connected to a protective earth via the integrated
green/yellow earth lead.
Connection to the earth point can be a suitable earth anchor on the chassis of the
storage location.
The earth point should be attached as follows:
To Next Page
