Haier AB092ACBJA - Installation Procedures

20

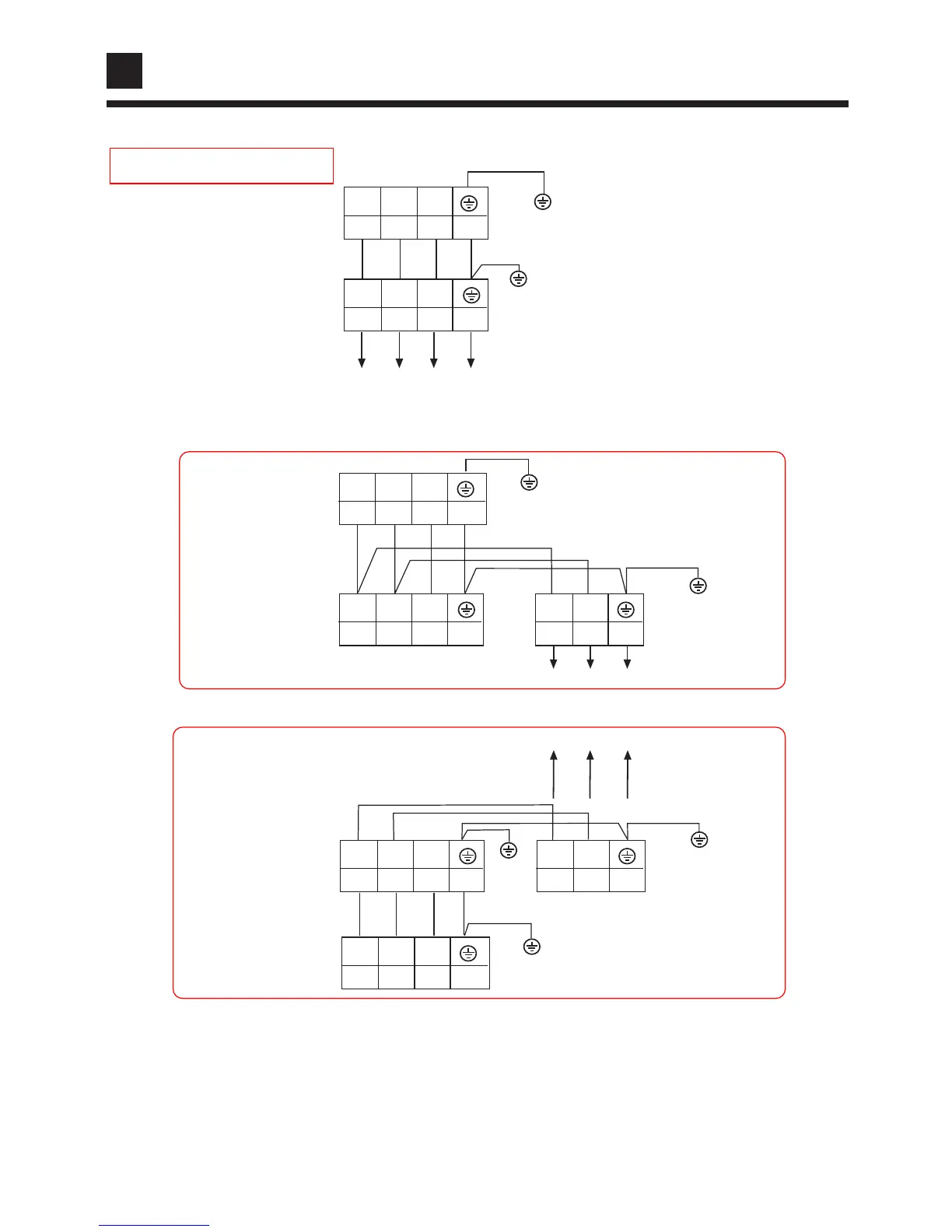

Wiring connection
1 2 3
W B R Y/G
Y/G
1(N) 2(L) 3(C)
W B R
Y/G
AB092ACBJA AB122ACBJA:
AB142ACBJA AB182ACBJA:
1 2 3
W B R Y/G
Y/G
W B R
Y/G
POWER SUPPLY: 1PH,220-230V~,50Hz
1 2 3
W B R
L N
AB142ACBFA AB182ACBFA:
W B R
Y/G
POWER SUPPLY: 1PH,220-230V~,50Hz
1 2 3
BR BL R
L N
1 2 3
W B R Y/G
Y/G
Y/G
Y/G
Y/G
Y/G
*******
*******
051220****
Note: Mark of outdoor unit terminal block 1(N) is equal to 1(L); and 2(L) is equal to 2(N).
Installation Procedures
INDOOR UNIT
TERMINAL BLOCK
OUTDOOR UNIT
TERMINAL BLOCK
POWER SUPPLY: 1PH,220-230V~,50Hz
INDOOR UNIT
TERMINAL BLOCK
OUTDOOR UNIT
TERMINAL BLOCK
INDOOR UNIT
TERMINAL BLOCK
OUTDOOR UNIT
TERMINAL BLOCK
