Haier AB242ACBEA - Page 98

2. Dashed part is ont avaliable below Cooling capacity 28000Btu type

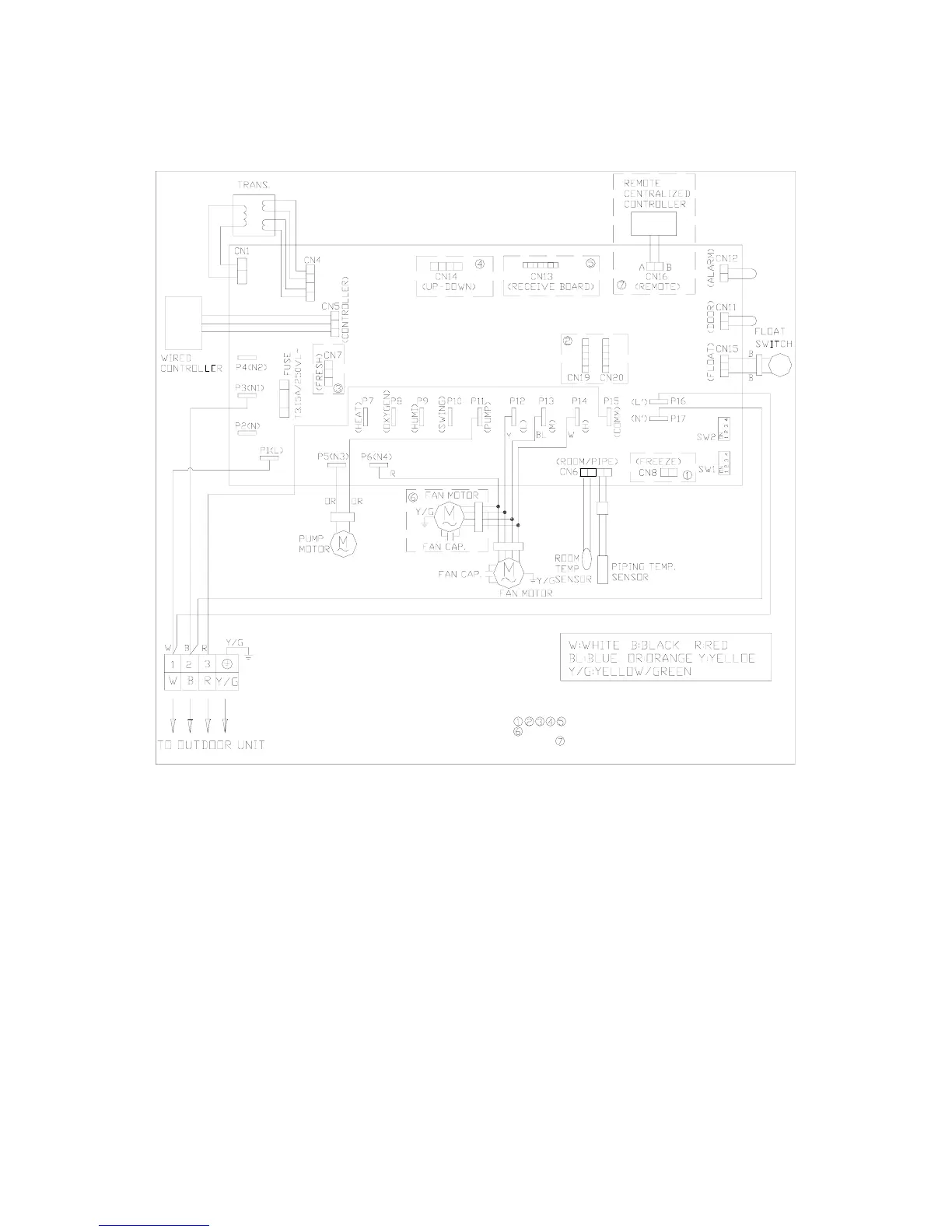

over 24000BTU/h mid ESP duct type wiring diagram
Note:
1.Dashed parts are not available in duct type.
3.Remote central controller is optional.
4.P16 and P17 are used for room card function
W
Y
R
