11
Installation Procedures

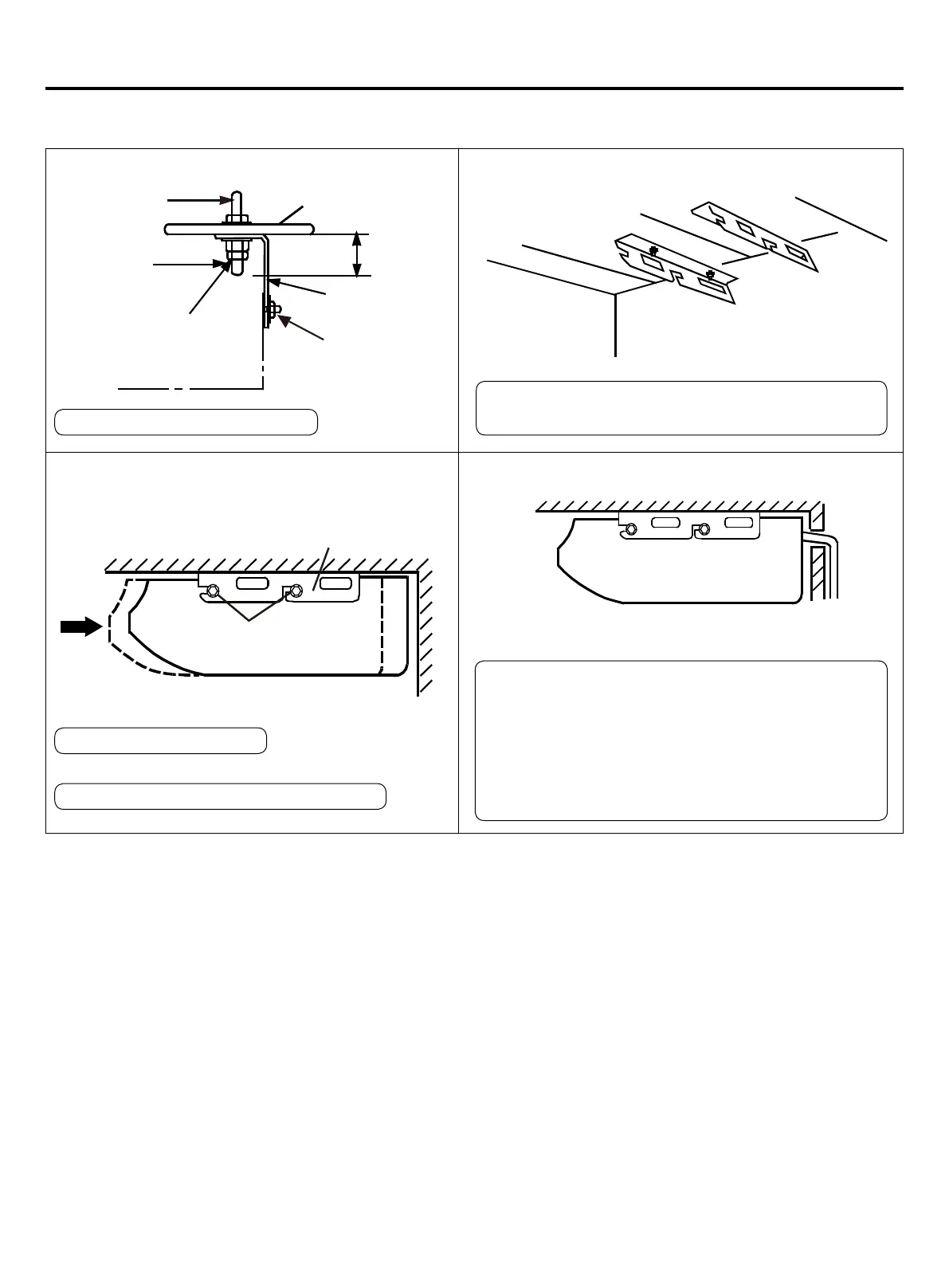

(5) Air Conditioner Installation Diagram
(6) Installing Deco Plate and Inlet Grille (after pipeline laying and electric wiring are done).
Hanger Bolt
Bolt Sleeve
Flat Spacer
Double Nut
M10
Ceiling
Mounting Rack
Hexagon Bolt
≤40mm
Unit
①
Hanger Chain Hook
③
Installing Air Conditioner
④
Drain Pipe Leading-out Direction
②
Installing Status of Mounting Rack
Hanger bolt is 40mm below ceiling.
Insert hexagon bolt into slot
Screw tight hexagon bolt to x air conditioner
Leveling is forbidden after air conditioner is installed;
please make adjustment according to diagram indication.
According to requirements on the site, drain pipes shall
be prepared by users on their own resources and make
sure that these are connected to drain pipes previously
available with the unit (make sure that measures are
taken to guard against water leakage in junction areas);
heat preservation shall be available with certain indoor
drain pipes through using heat insulant to prevent
condensation.
(Ceiling)
(Wall)
Mounting Rack
Bolt
CAUTION:
drain pipe shall be positioned high inside and low outside.
