WARNING
DANGER OF BODILY INJURY OR DEATH
TURN OFF ELECTRIC POWER AT CIRCUIT BREAKER OR POWER SOURCE BEFORE MAKING ANY ELECTRIC
CONNECTIONS.
GROUND CONNECTIONS MUST BE COMPLETED BEFORE MAKING LINE VOLTAGE CONNECTIONS.
Precautions for electrical wiring
Selection of size of power supply and interconnecting wires

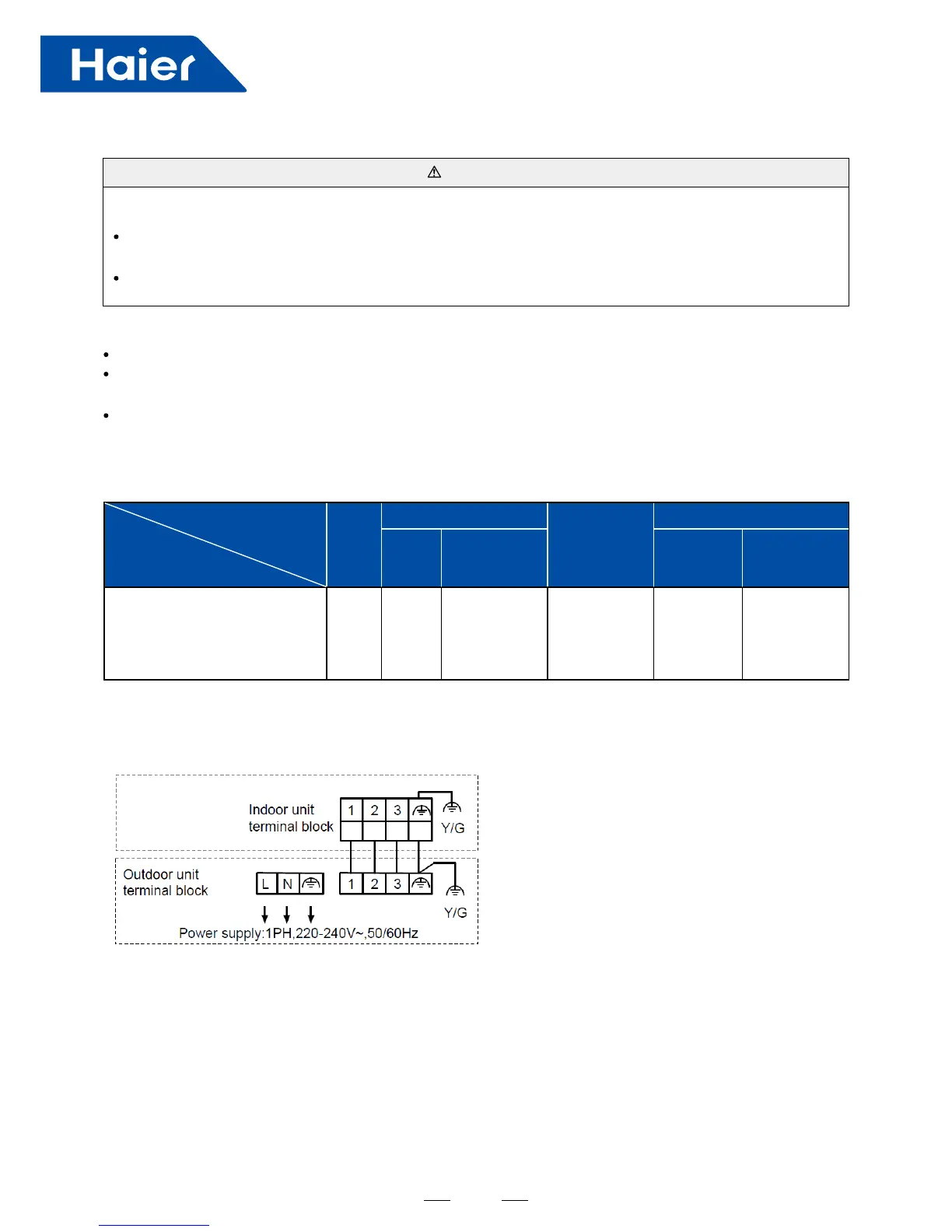

POWERSUPPL&YINDOOR-OUTDOORCONNECTION:
Electrical wiring work should be conducted only by authorized personnel.
Do not connect more than three wires to the terminal block. Always use round type crimped terminal lugs with
insulated grip on the ends of the wires.
Use copper conductor only.
Select wire sizes and circuit protection from table below. (This table shows 20m length wires with less than 2%
voltage drop.)
Make wiring to supply power to the outdoor unit, so that the power for the indoor unit is supplied by outdoor
unit terminal blocks.
Phase
Circuit breaker
Power source
wire size
(minimum) (mm
2
)
Earth leakage breaker
Switch
breaker
(A)
Overcurrent
protector
rated capacity (A)
Switch
breaker (A)
Leak
current (mA)
AD90S2SM3FA AD90S2SM4FA
AD105S2SM3FA AD105S2SM4FA
AD125S2SM3FA AD125S2SM4FA
AD140S2SM3FA AD140S2SM4FA
1 40 60 6.0 40 30
