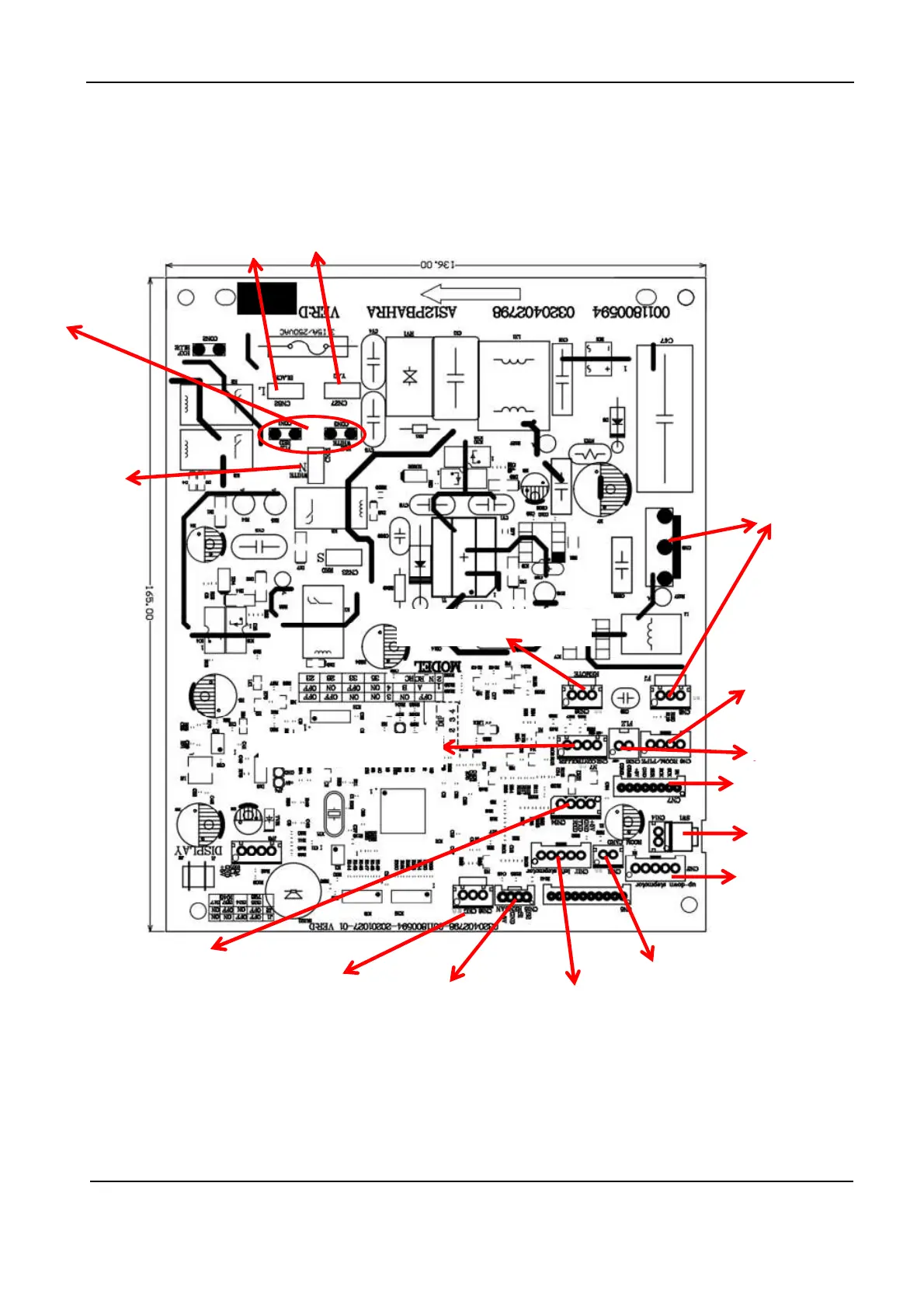

Printed circuit board connector wiring diagram
12 Domestic air conditioner
PCB(1)
PE
L
N
Ion
generator
AC
Fan motor
Anion module
●
Ambient & Pipe
Temp. sensor
Room card
●
Display board
Emergency
Up-down
stepmotor
Right
●
-left
stepmotor
Human-light
sensors
controller
●
Mag switch
wifi
Wired controller
R
emote controller
