26
Electric wiring and the application
If multi strand exible wires are used, crimp the O-type terminal
during installation. Otherwise, it will cause abnormal heating of
terminal crimping part. If a single core wiring is used in the wiring,
it can be connected directly in the manner shown in the diagram.
Terminal installation example

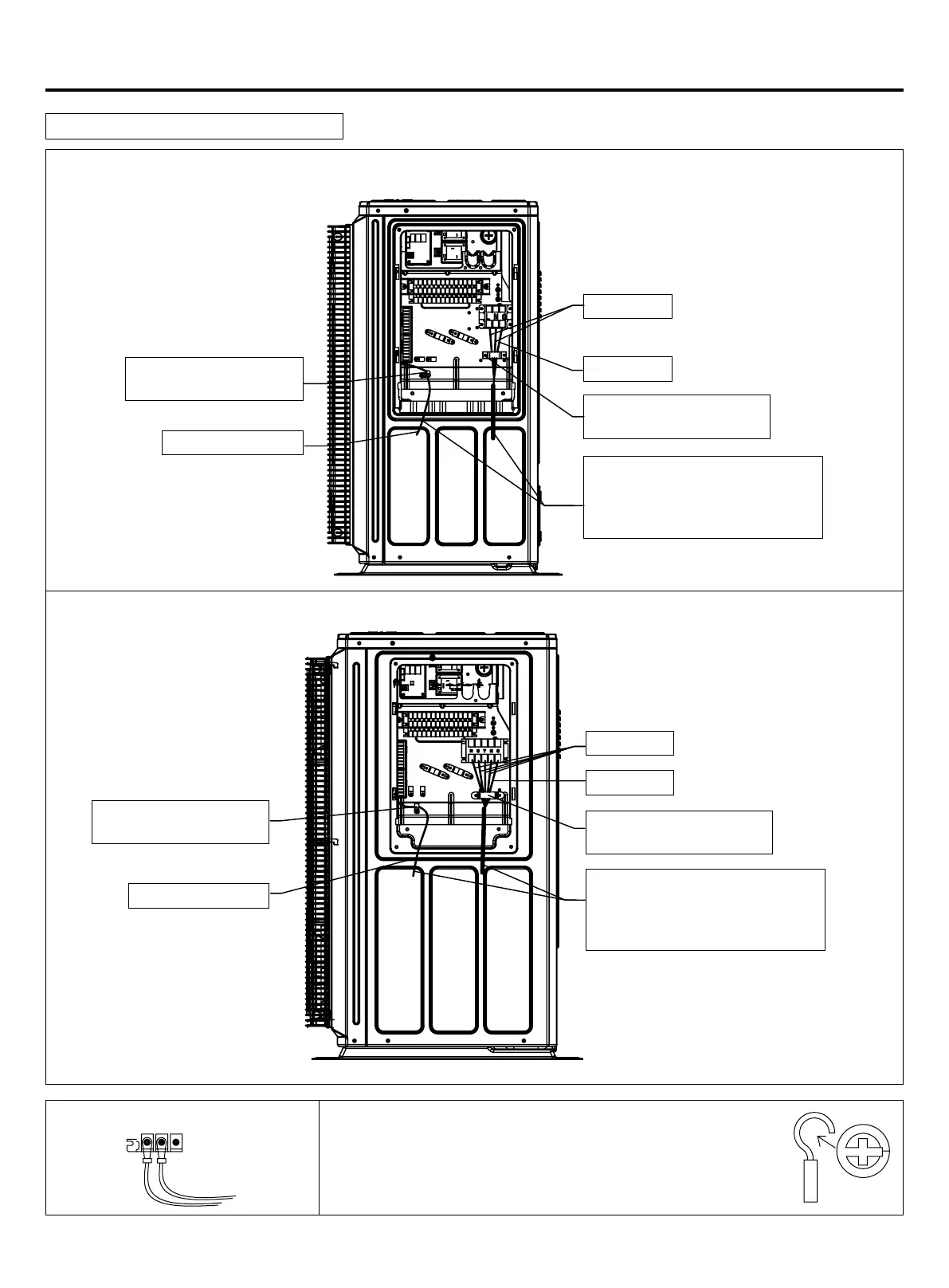

Outdoor unit electrical wiring diagram
AW11NMXCHA AW14NMXCHA AW16NMXCHA
AW052MUCHA AW072MUCHA AW092MUCHA AW112MXCHA AW142MXCHA AW162MXCHA
Ground wire
Ground wire
Power cord
Power cord
Fixing the power line with a
wire clip
Fixing the power line with a
wire clip
Fixing the communication
line with a wire clip
Fixing the communication
line with a wire clip
Power lines and communication
lines need to be ame retardant
and high temperature resistant wire
wrap
Power lines and communication
lines need to be ame retardant
and high temperature resistant wire
wrap
Communication line
Communication line
