Chapter 6 System flow principle

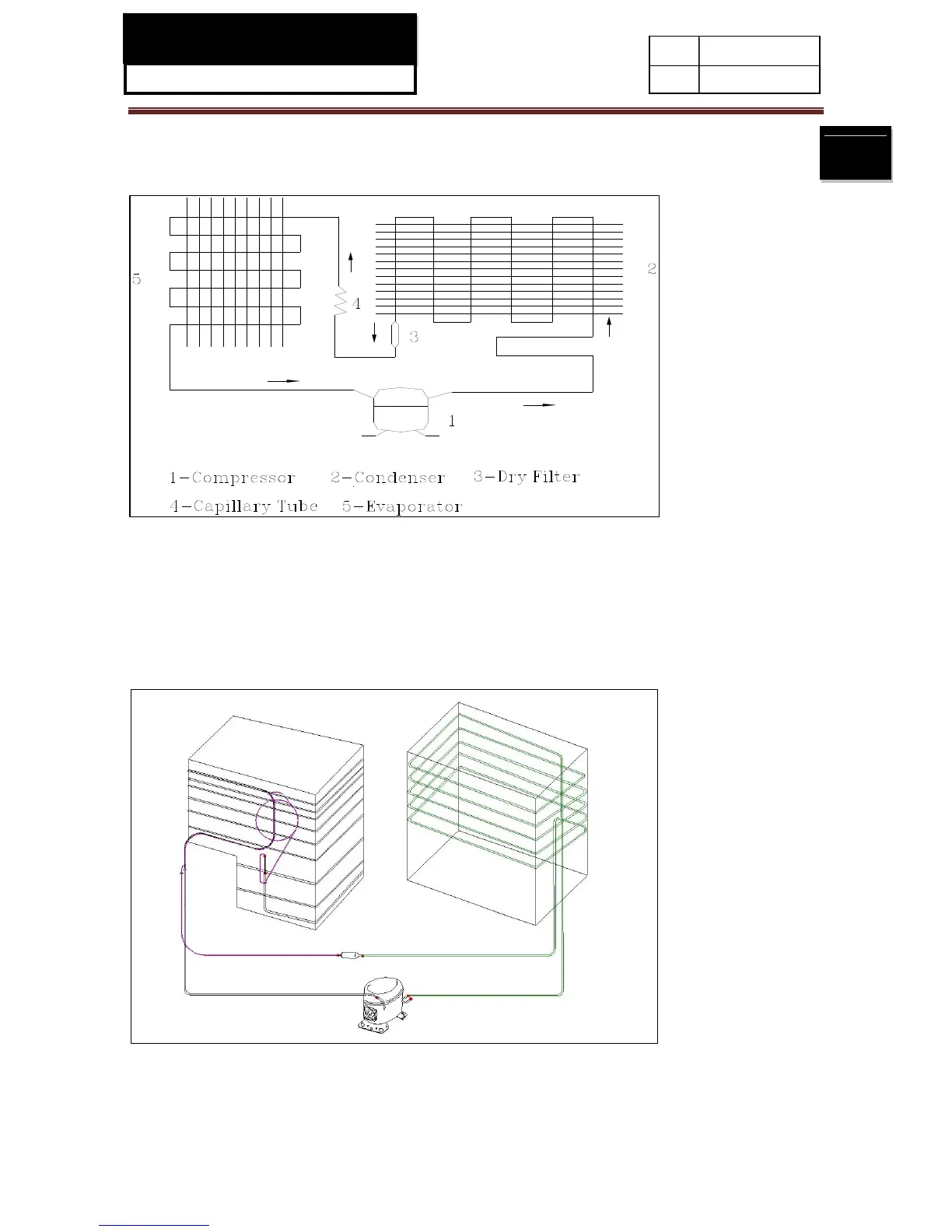

6-1. Refrigeration flow chart
The refrigeration system of direct cooling single-system cooler belongs to the category of a
single-temperature and single-control refrigerating system with one evaporators and is controlled by a
single temperature control.
6-2. Refrigeration flow scenograph
