Haier CFE633CWE Service Manual

SERVICE MANUAL
Model: CFE629CW
16
Issue 2009-12-23
Rev. Ref0912S021V0
4-2 Error code display and sensor positions
4-2-1 Sensor location description
Malfunction description Sign Display Display position Sensor location
Malfunction of the ambient
temperature sensor
H SNR F2 Display panel The ambient temperature sensor is
located on the display panel
Malfunction of the fridge
storage temperature sensor
R SNR F3 Display panel The fridge storage temperature
sensor is located on the right side
of the fridge storage compartment
Malfunction of the freezer
storage temperature sensor
F SNR F4 Display panel The freezer storage temperature
sensor is located on the left side of
the freezing air-duct cover
Malfunction of the defrosting
temperature sensor
D SNR F6 Display panel The defrosting temperature sensor
is located on the fin evaporator
Malfunction of
communication between the
display panel and the power
board
/ E0 Display panel /
Malfunction of the fan / E1 Display panel /

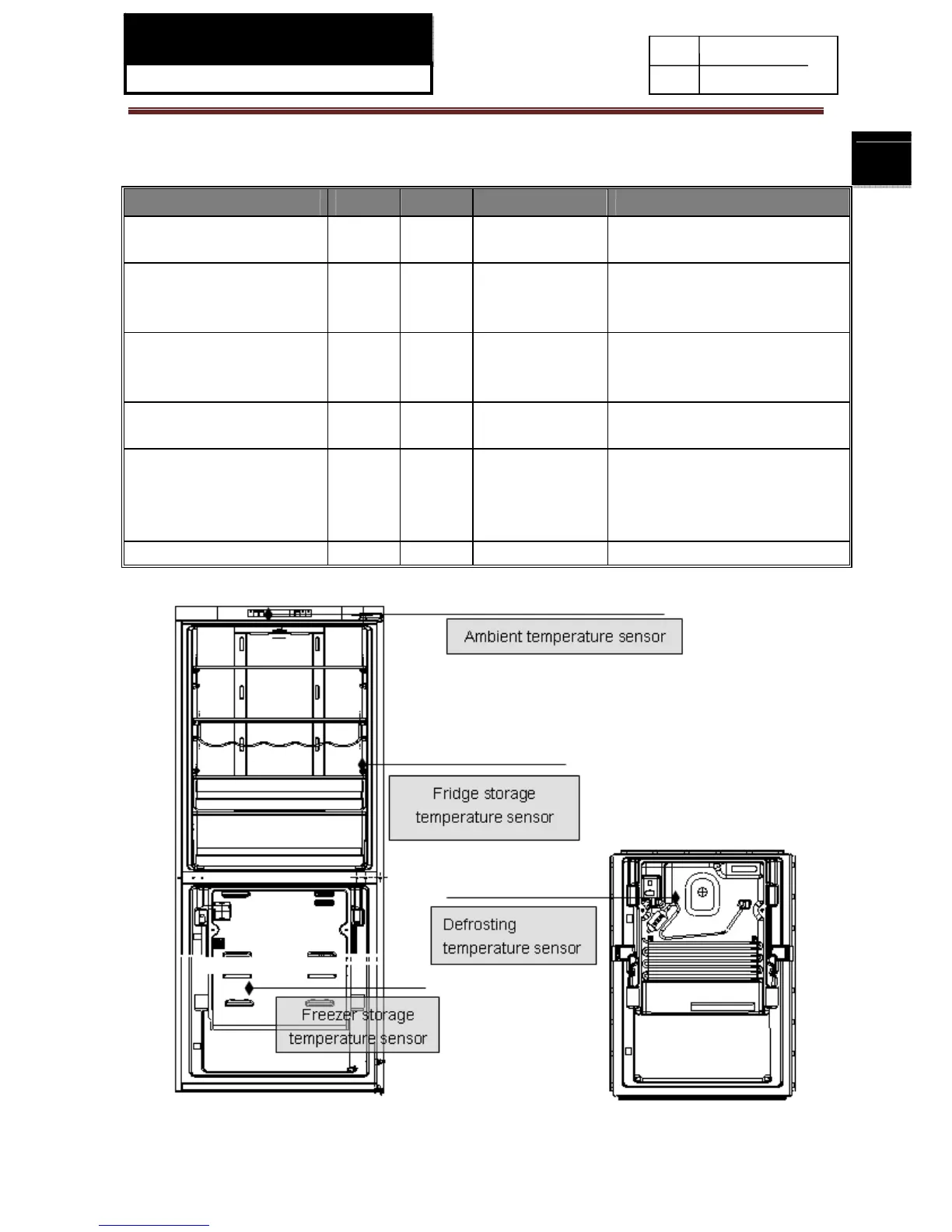

4-2-2 Graphic display of the sensor location

Haier CFE633CWE Specifications

General

Door hinge	-
Control type	Buttons, Rotary
Product color	White
Built-in display	No
Appliance placement	Freestanding
Number of compressors	1
Noise level	42 dB
Climate class	SN-T
Total net capacity	342 L
Total gross capacity	310 L
Form factor	Upright
No Frost system	Yes
Lamp type	LED
Fridge net capacity	230 L
Fridge gross capacity	- L
Fridge number of shelves/baskets	7
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	11 kg/24h
Freezer net capacity	80 L
Freezer number of shelves/baskets	3
Storage time during power failure	18 h
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Annual energy consumption	319 kWh
Package depth	670 mm
Package width	600 mm
Package height	1880 mm
Package weight	86000 g

Weight and Dimensions

Width	- mm
Weight	76000 g
