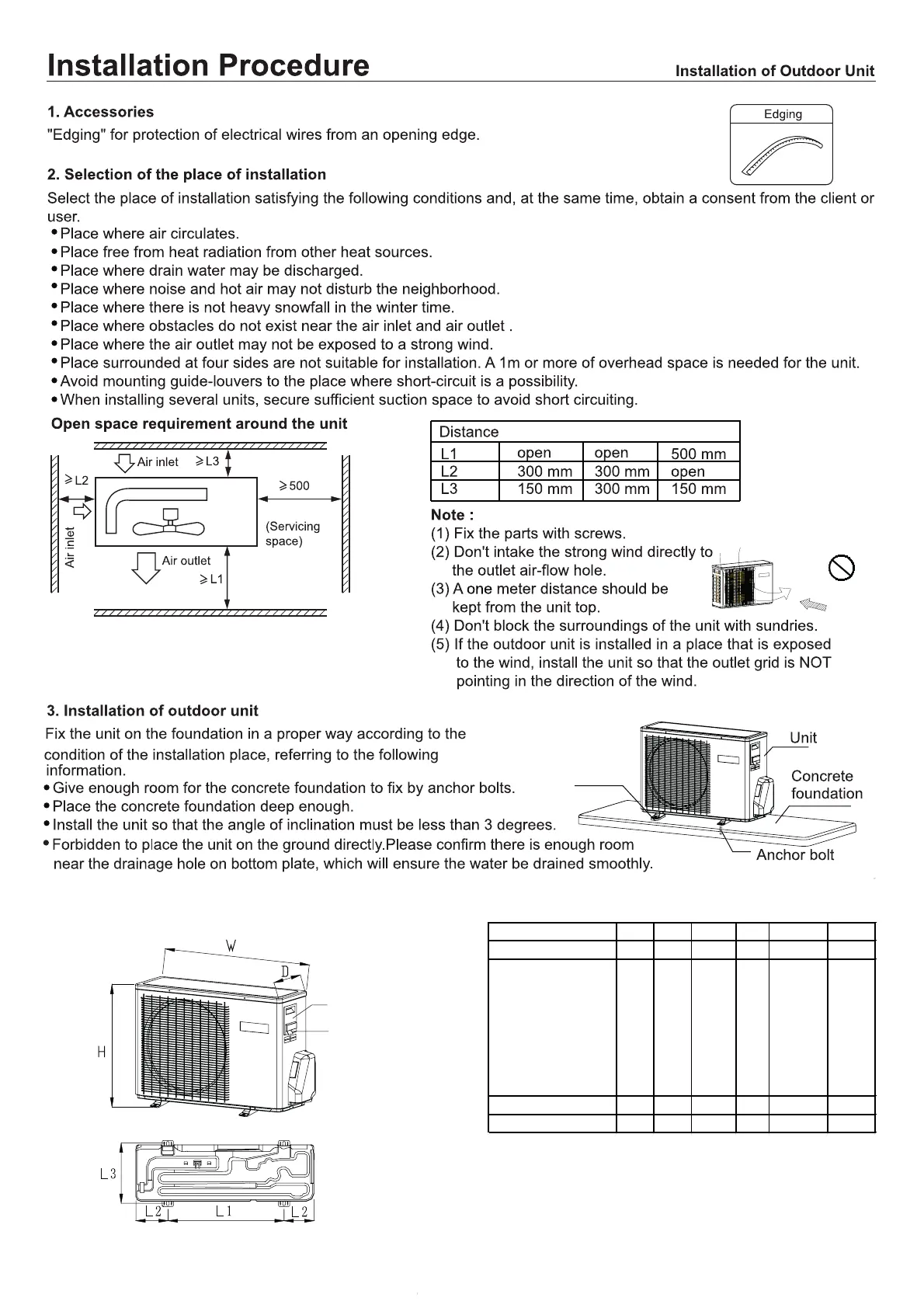

4.Installation dimension(Unit:mm)
Power Wiring Terminal
Power Wiring
Distribution Hole
Cushion rubber
Model W D H L1 L2 L3
H1U09TAAOUT 700 245 543.8 440 120/140 269
H1U12TAAOUT
H1U18TAAOUT
800 275 553 510 130/160 313
H
1U09FAAOUT
H1U12FAAOUT
H1U18FAAOU T
820 338 614 590 114.2 324
H1U24TAAOU T
890 353 697 628 130 355.5
21
H2U14MAAOUT
H2U18MAAOUT
H2U14TAAOUT
H2U18TAAOUT
