Haier HCE604TB - Installation Instructions; Cooktop and Cutout Dimensions

6
Installation instructions

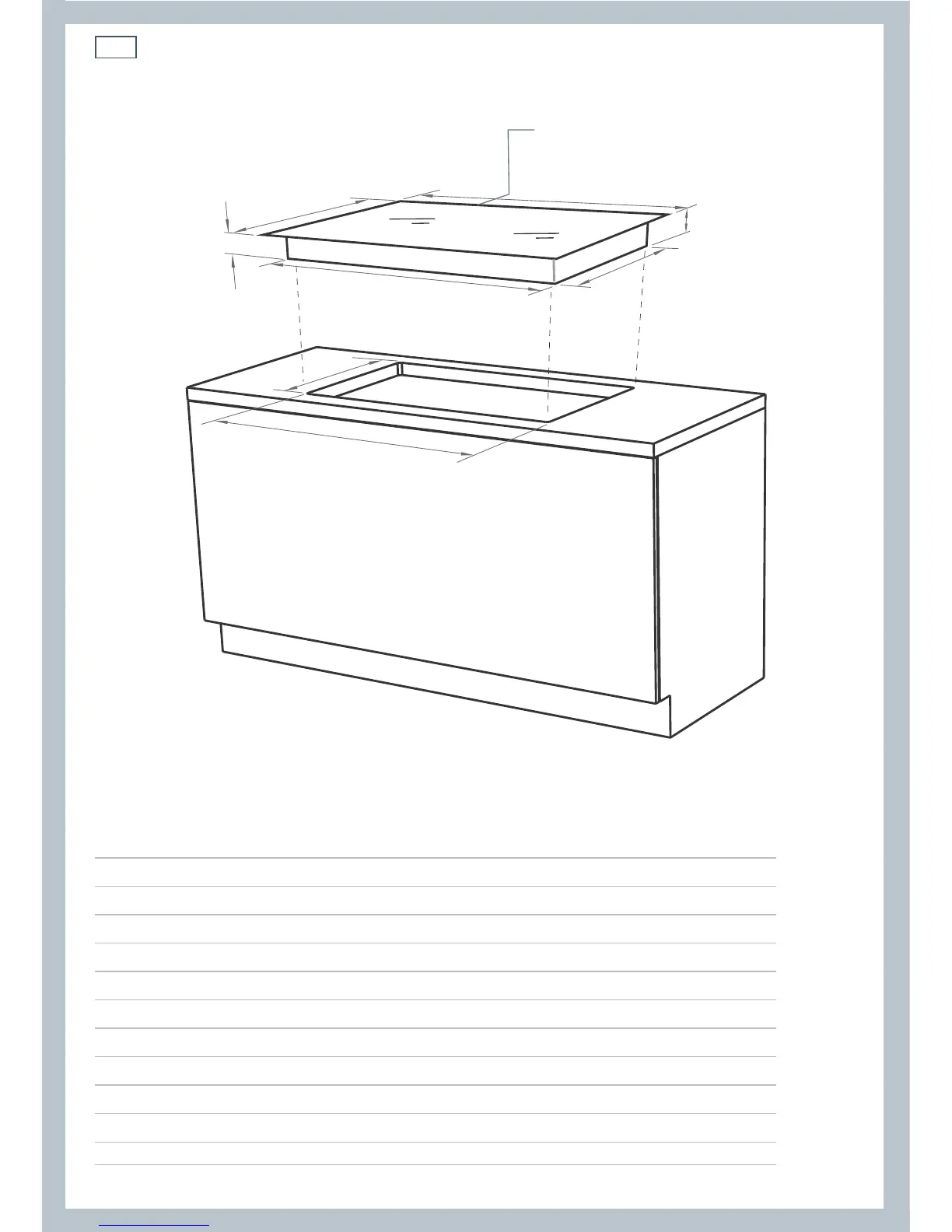

Cooktop and cutout dimensions
Electrical connection is
made at the middle rear
Drawings for illustration purposes only
A
B
C
C
I
D
G
F
E
Cooktop and cutout dimensions (mm)
HCE604TB
A
overall width of cooktop
590
B
overall depth of cooktop
510
C
height of chassis (below top of bench)
45
C
I
height of chassis incl. terminal block (below top of bench)
58
D
width of chassis
552
E
depth of chassis
480
F
overall width of cutout
560
G
overall depth of cutout
490
