Haier HCE604TB - Installation Clearances

7
Installation instructions
Clearances
A
B
C
C
E
D

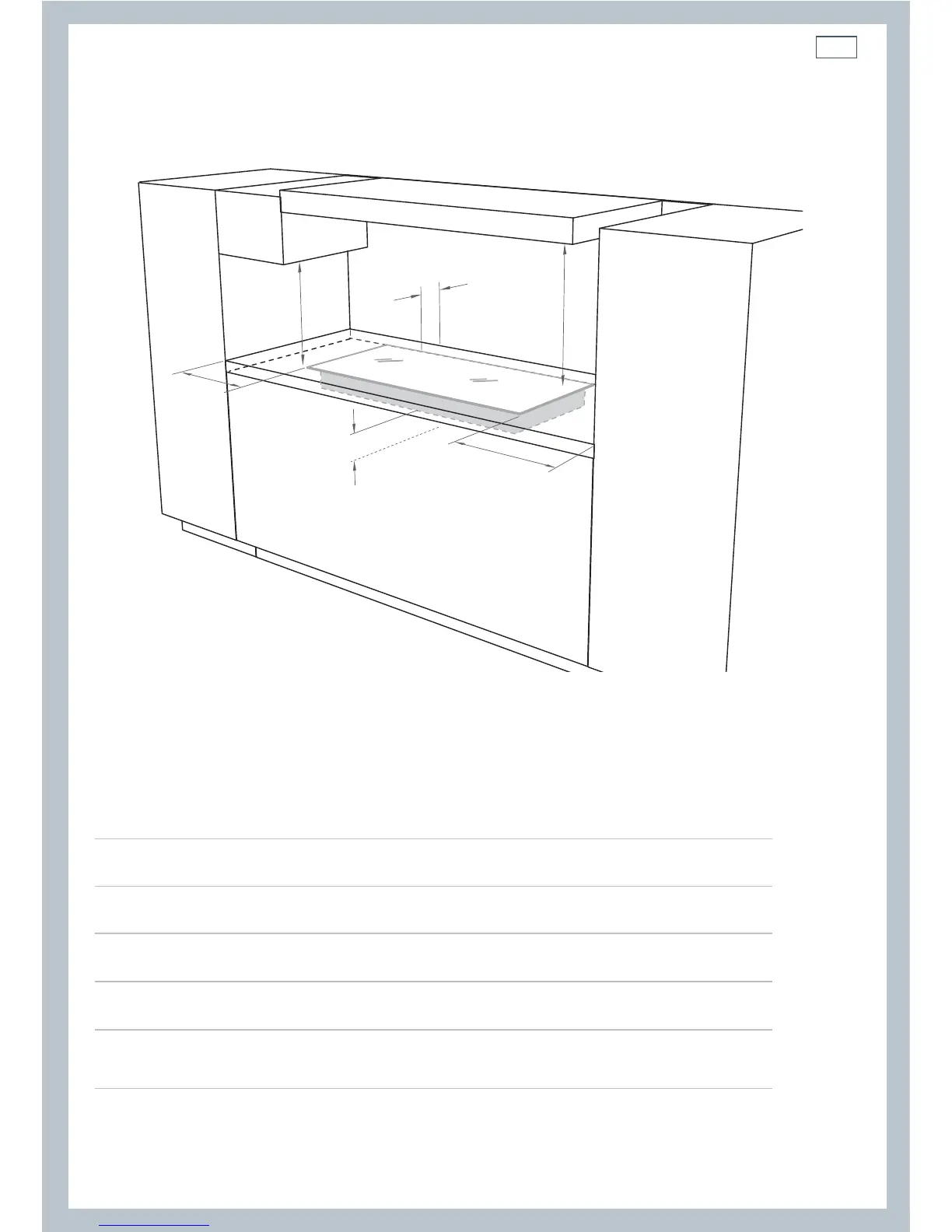

Clearances (mm)
HCE604TB
A
minimum clearance from rear edge of cutout to:
nearest combustible surface
55
B
minimum clearance from glass surface to:
rangehood 650
C
minimum clearance from side edges of cutout to:
nearest combustible surface 85
D
minimum clearance from benchtop to:
overhead cabinet not directly above the
cooktop 450
E
minimum clearance below top of benchtop to:
thermal protection barrier
65
Drawings for illustration purposes only
