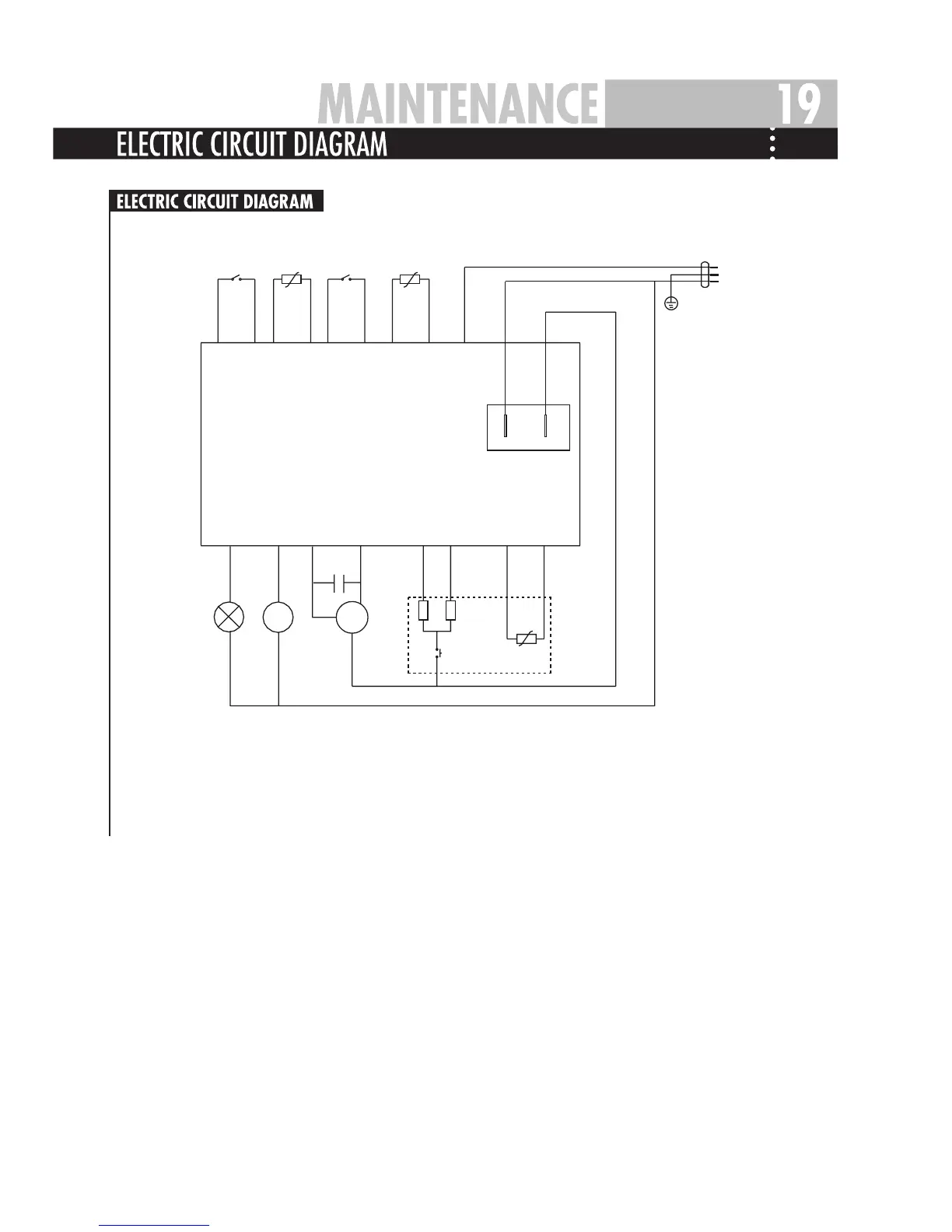

Haier HDC80E1 - Electric Circuit Diagram

M
L
G
N
PUL
D
SW
NTC1
H
PCB
HT
NTC2
SW:
Water level senser
C
D: Door switch
NTC1: Temperature sensor
NTC2:
LA
LA:
lamp
PUL: Drainage Pump
M: Motor
HT: Heating Element
H:
Humidity sensor
C:
Capacitor 8uf
Temperature sensor
