9
Reinstallation:

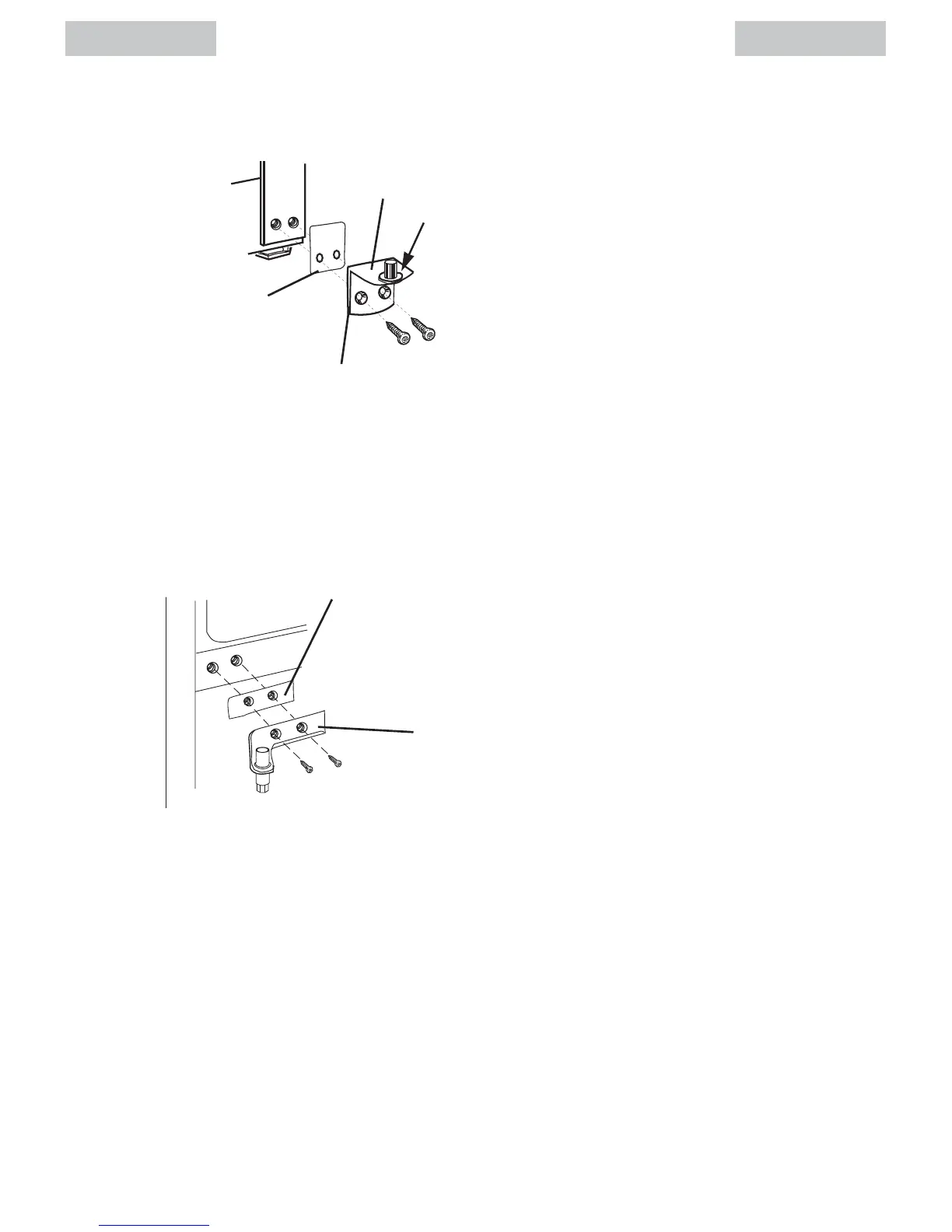

(see fig. # 4 and # 5)
1. As shown in fig. 4, dismantle the lower hinge and plastic pad from
right side and then install them on the left side.
2. To install refrigerator door: make the left bottom hole of the
refrigerator compartment door fall over the lower hinge axle, move
door forward to make it straight and in alignment with central hinge.
Install the central hinge again, turn the hinge axle until it
completely enters the door body, then fix it with screws.
3. As shown in fig. 5, install the central hinge and pad to the left side.
4. To install freezer door: make the left bottom hole of freezer door fall
over the central hinge axle; raise upper hinge, so that hinge axle can
be installed in the upper hole of the upper part of the freezer door;
adjust door to make it straight and level.
5. As shown in Fig. 1, install the upper freezer hinge to the left
corresponding position. (tighten the screws of upper hinge)
6. Replace the hinge cover as shown in Fig. 1.
Bottom hinge axle
Plastic pad
Central hinge pad
Bottom hinge pad
Bottom hinge
Central hinge axle
fig. # 4
fig. # 5
