INSTALLATION INSTRUCTIONS
Mounting dryer on wall

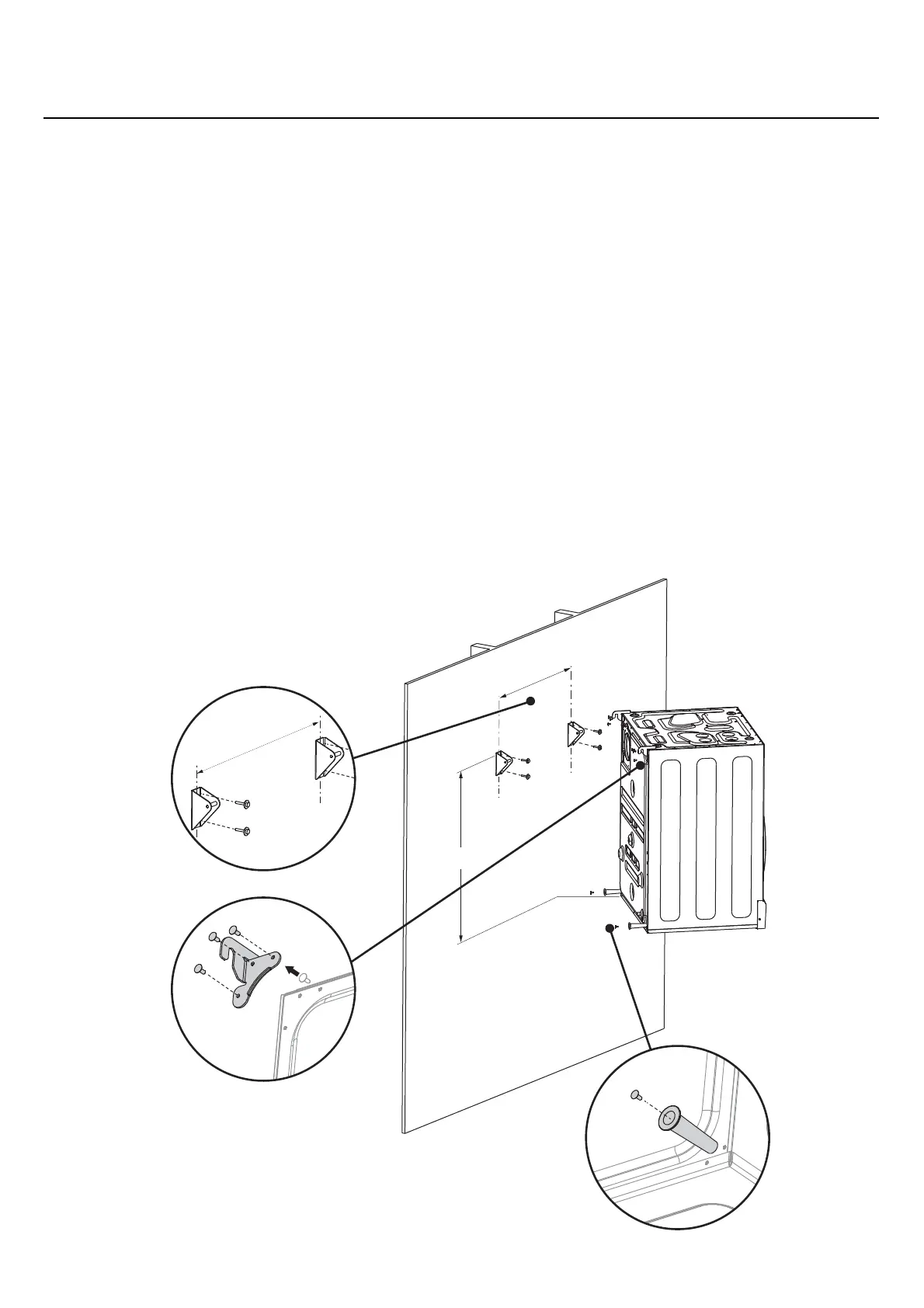

1 Determine the position of the dryer on the wall and mark the bracket position. A
minimum of 50mm is needed between the top of the dryer and the ceiling for ease
of installation. If mounting above a washing machine, allow sufficient room to open
the lid of the washer.
2 Fix the wall hanging brackets to the wall securely, ie into the stud. If the studs are
too far apart, fit a timber slat to the studs and then mount the brackets to the slat. If
a slat is used install a second slat behind the spacers to ensure the dryer is
horizontal. The distance between the centre of each bracket is 555mm (A).
3 To install the hooks onto the dryer, remove one screw from each side (B), reuse
these screws with two more (each side) from the kit to fasten the hooks in place.
4 Remove plastic plugs from the back of the dryer
and screw the spacers provided in
place (C).
5 With assistance, mount the dryer on the wall brackets.
6 The inverted control panel is supplied in the accessories with your dryer. Fit inverted
control panel over the existing panel.
From centre
of top hole
From bottom
of dryer
C
B
A
835mm
555mm
555mm
