Haier HDV40A1 User Manual

INSTALLATION INSTRUCTIONS
Stacking installation
Your dryer has been designed to be able to be stacked on the top of a Haier front load
washing machine, ensure the washing machine is the same width as your dryer.
Tools and parts required:
■ Drill and 2.9mm bit
■ Phillips head screwdriver

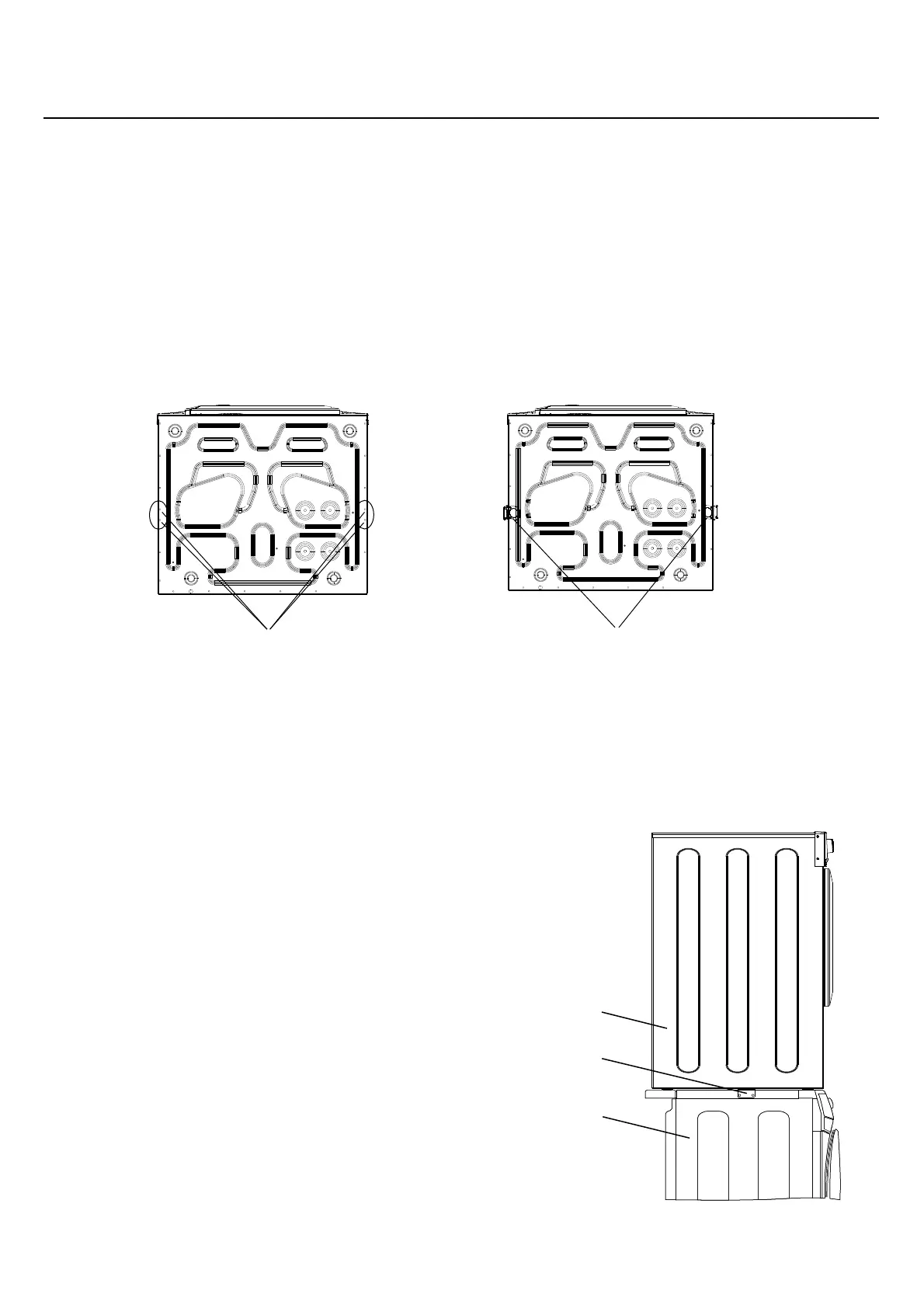

1 Remove 4 screws at two sides of bottom panel, then install the stacking bracket.
4 Screws
Stacking bracket
2 Install your dryer with stacking bracket on the top of the front load washing machine.
Drill two holes on both sides of top panel of washing machine with 2.9mm diameter
drill. Detailed drill position as shown on the stacking bracket. Only use the screws
supplied in the stacking bracket. Fix the stacking bracket on the top panel of washing
machine.
■ The models of Haier front load washing machine that
can be stacked installation are followed:
HWF75AW1
HWF80BW1
HWF85AW1
HWM75-B12266
HWM85-B14266
HWM75-1279
HWM85-1479
HWM85-1482
HWM70-1201
HWM80-1401
HW70-1203D
HWM80-1403D
Dryer
Stacking bracket
Front load washing
machine
9
Stacking bracket includes:
■ 2 x Stacking bracket

Haier HDV40A1 Specifications
