17

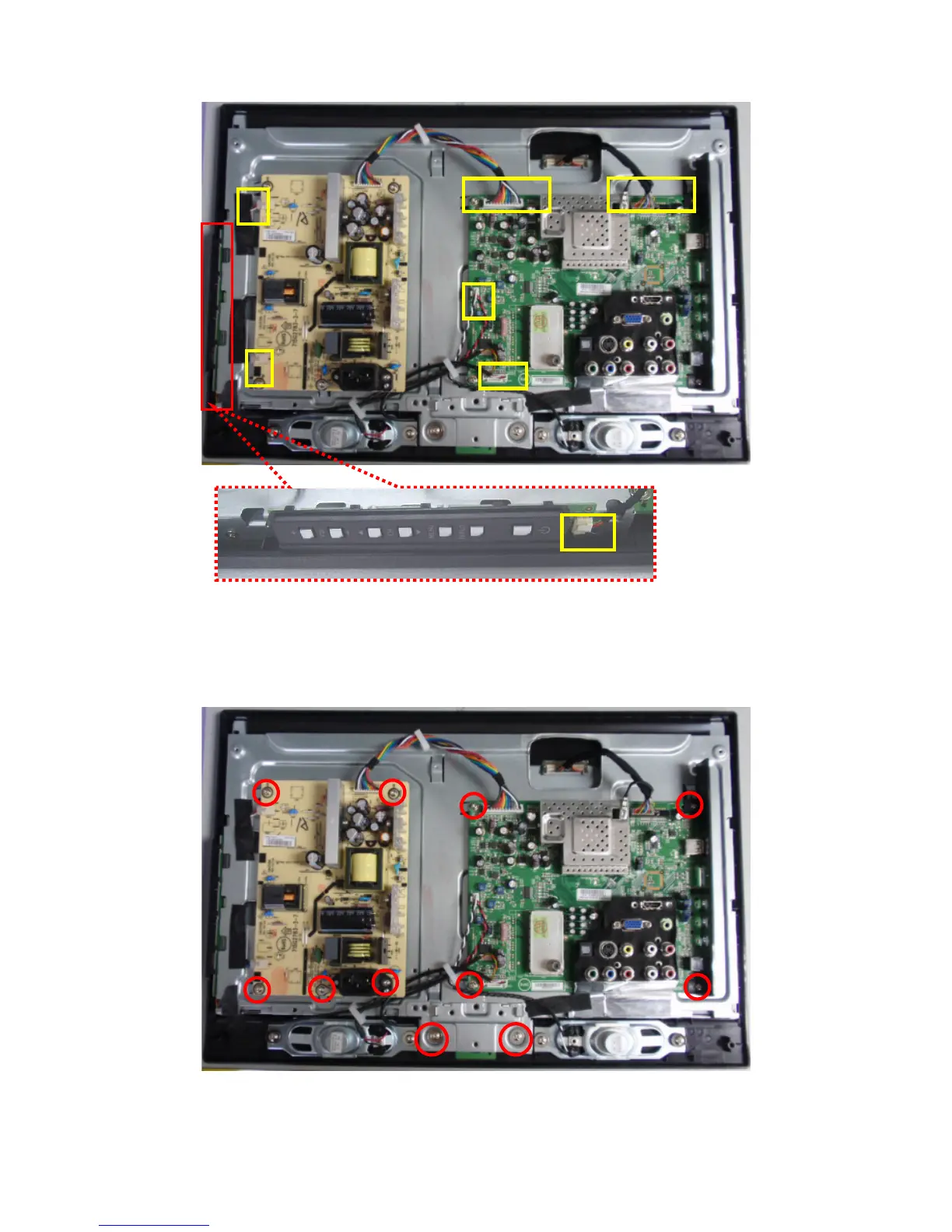

Step 3. Disconnect the WIRE HARNESS.
Disconnect the 7 WIRE HARNESS.
Step 4. Remove the MAIN, POWER BOARD and BEZEL.
Unscrew the 9 screw for boards and 2 screws for BEZEL.
