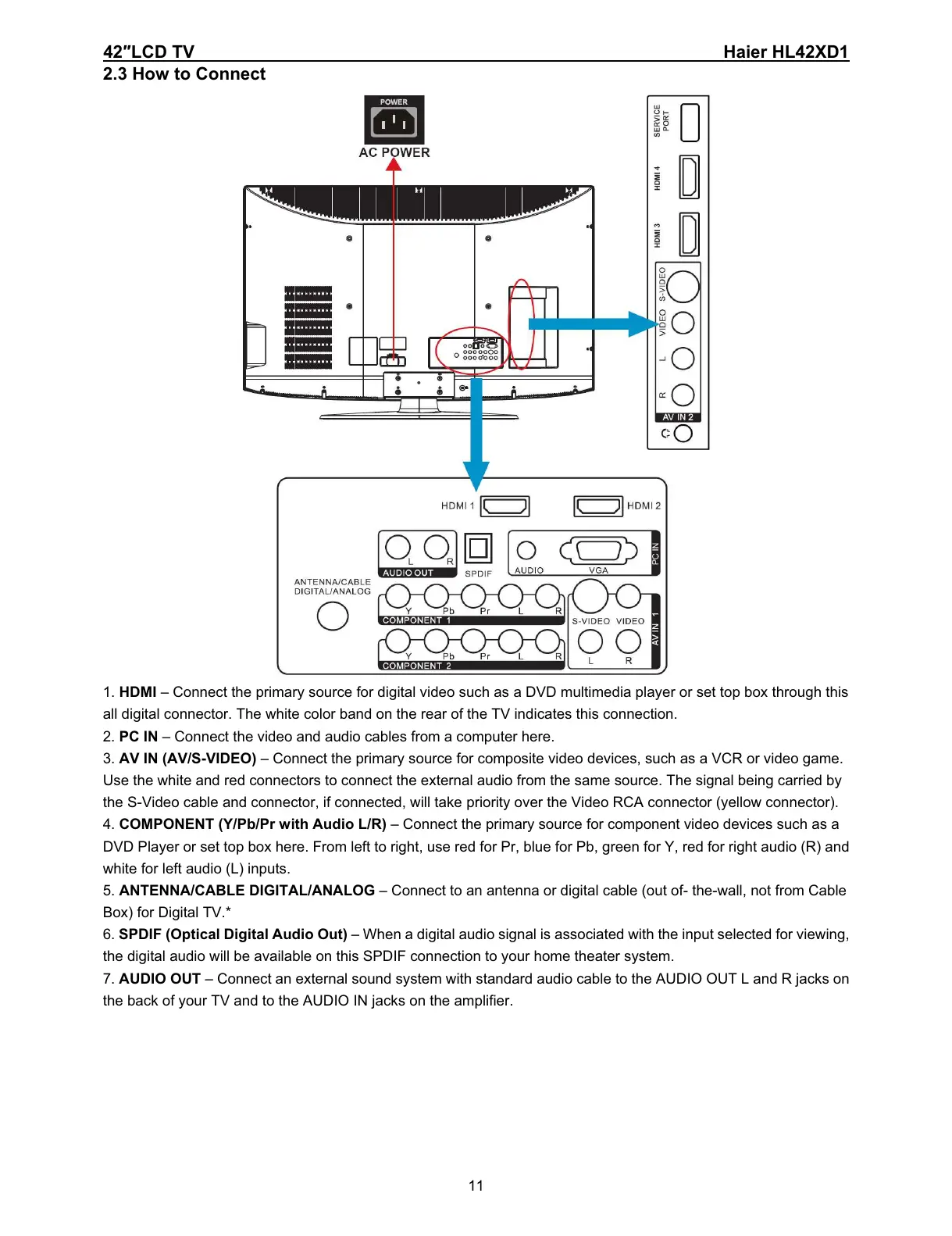

1. HDMI – Connect the primary source for digital video such as a DVD multimedia player or set top box through this
all digital connector. The white color band on the rear of the TV indicates this connection.
2. PC IN – Connect the video and audio cables from a computer here.
3. AV IN (AV/S-VIDEO) – Connect the primary source for composite video devices, such as a VCR or video game.
Use the white and red connectors to connect the external audio from the same source. The signal being carried by
the S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow connector).
4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component video devices such as a
DVD Player or set top box here. From left to right, use red for Pr, blue for Pb, green for Y, red for right audio (R) and
white for left audio (L) inputs.
5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna or digital cable (out of- the-wall, not from Cable
Box) for Digital TV.*
6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is associated with the input selected for viewing,
the digital audio will be available on this SPDIF connection to your home theater system.
7. AUDIO OUT – Connect an external sound system with standard audio cable to the AUDIO OUT L and R jacks on
the back of your TV and to the AUDIO IN jacks on the amplifier.
