Haier HL32D1a Service Manual

42 LCD TV Haier HL42XD1
14

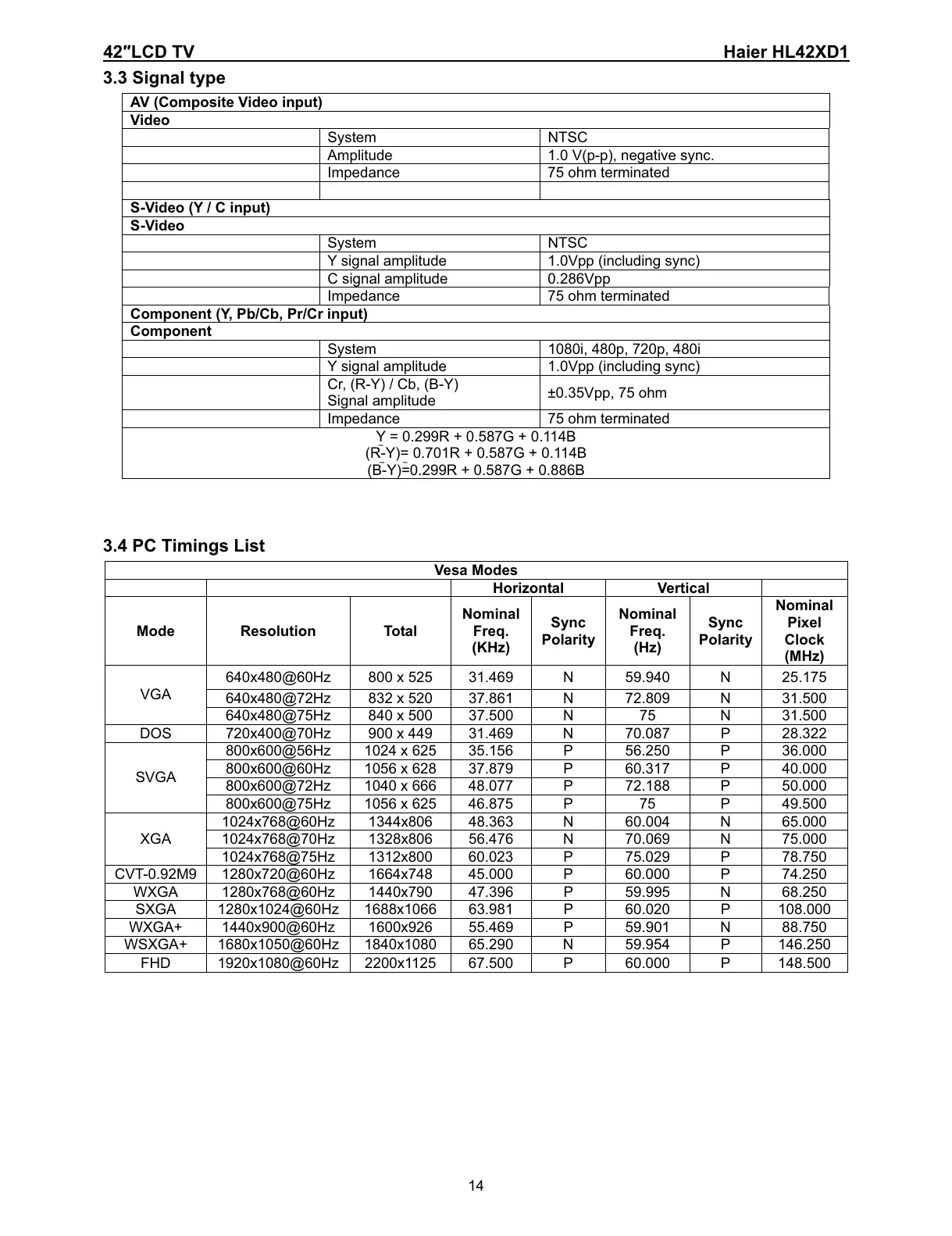

3.3 Signal type
AV (Composite Video input)
Video
System NTSC
Amplitude 1.0 V(p-p), negative sync.
Impedance 75 ohm terminated
S-Video (Y / C input)
S-Video
System NTSC
Y signal amplitude 1.0Vpp (including sync)
C signal amplitude 0.286Vpp
Impedance 75 ohm terminated
Component (Y, Pb/Cb, Pr/Cr input)
Component
System 1080i, 480p, 720p, 480i
Y signal amplitude 1.0Vpp (including sync)
Cr, (R-Y) / Cb, (B-Y)
Signal amplitude
±0.35Vpp, 75 ohm
Impedance 75 ohm terminated
Y = 0.299R + 0.587G + 0.114B
(R- Y)= 0.701R + 0.587G + 0.114B
(B- Y)= 0.299R + 0.587G + 0.886B
3.4 PC Timings List
Vesa Modes
Horizontal Vertical
Mode Resolution Total
Nominal
Freq.
(KHz)
Sync
Polarity
Nominal
Freq.
(Hz)
Sync
Polarity
Nominal
Pixel
Clock
(MHz)
640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175
640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
VGA
640x480@75Hz 840 x 500 37.500 N 75 N 31.500
DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322
800x600@56Hz 1024 x 625 35.156 P 56.250 P 36.000
800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000
800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000
SVGA
800x600@75Hz 1056 x 625 46.875 P 75 P 49.500
1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000
XGA
1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750
CVT-0.92M9 1280x720@60Hz 1664x748 45.000 P 60.000 P 74.250
WXGA 1280x768@60Hz 1440x790 47.396 P 59.995 N 68.250
SXGA 1280x1024@60Hz 1688x1066 63.981 P 60.020 P 108.000
WXGA+ 1440x900@60Hz 1600x926 55.469 P 59.901 N 88.750
WSXGA+ 1680x1050@60Hz 1840x1080 65.290 N 59.954 P 146.250
FHD 1920x1080@60Hz 2200x1125 67.500 P 60.000 P 148.500
