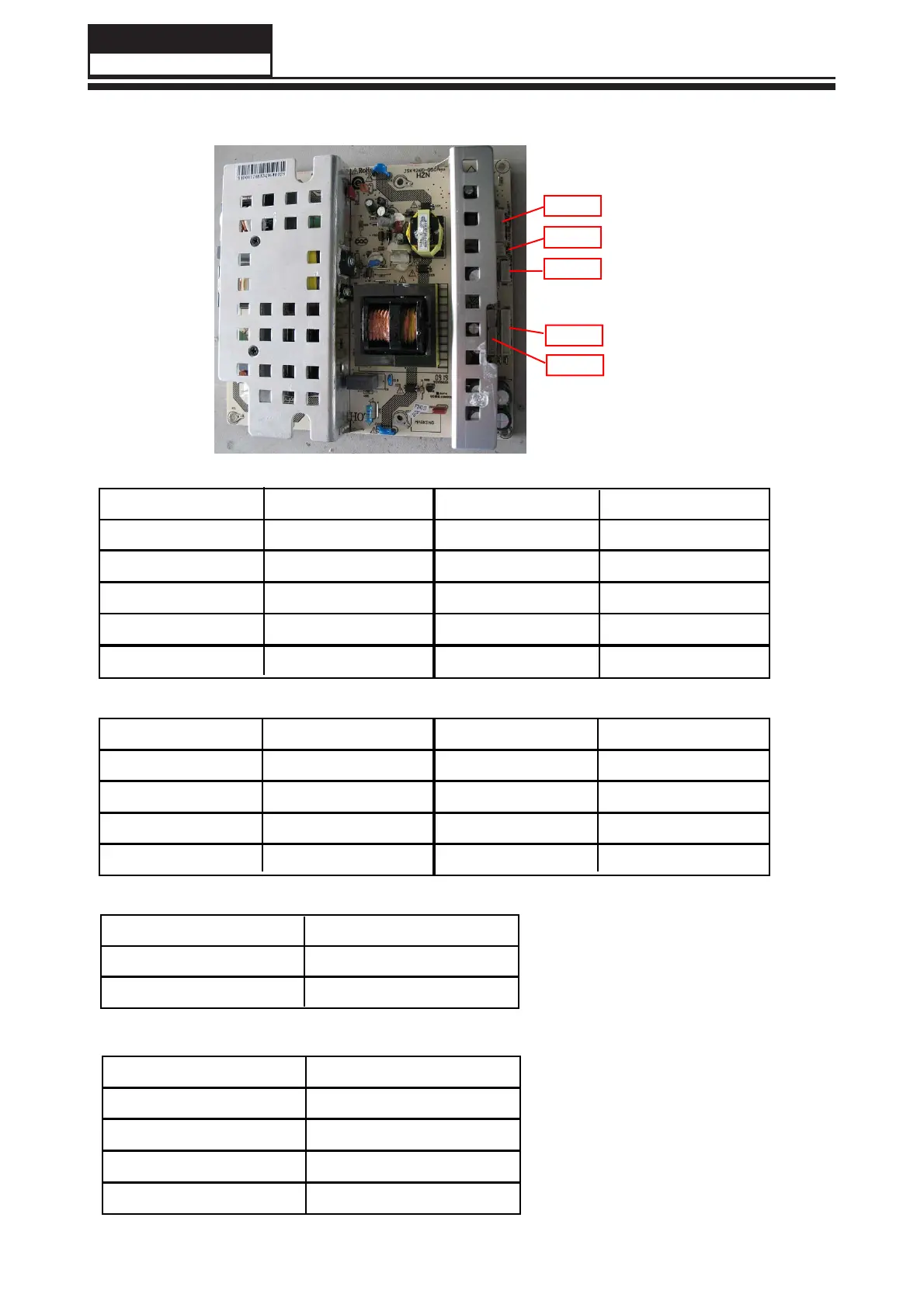

4-3-2-3.LB42R3
CN4
CN5
CN6
CN2
CN3
CN2&CN3
Pin number
Signal name
Pin number
Signal name
1
2
3
4
7
8
9
10
5
6
GND
GND
GND
GND
GND
24V
24V
24V
24V
24V
CN4
Pin number
Signal name
Pin number
Signal name
1
2
3
4
5
6
7
ON/OFF
GND
5V
GND
GND
12V
12V
1
2
Pin number
Signal name
GND
12V
CN5
1
2
Pin number
Signal name
24V
24V
CN6
3
GND
4
GND
