11. Remove screws from the other side and insert
in the previously removed screw holes. Remove
leveling leg.
12. Remove door pin by turning counter clockwise
and reinsert to the underside of the bracket and
tighten.
13. Align bracket and insert (2) remaining screws
into the holes provided . Tighten all the way.
Replace leveling legs and place refrigerator in
upright position.
14. Replace washers and cap over pin. Align hole in
the refrigerator door with the door pin and gently
push down until firm.
15. Insert pin from center hinge bracket into
refrigerator door hole and align center hinge
bracket holes to the screw holes in the cabinet.
16. Insert 2 screws and tighten.
17. Place washers on the center hinge bracket pin
and align the freezer door holes and insert into pin.
18. Replace screws on the top hinge cover, align door and tighten screws.
19. Replace top hinge cover.

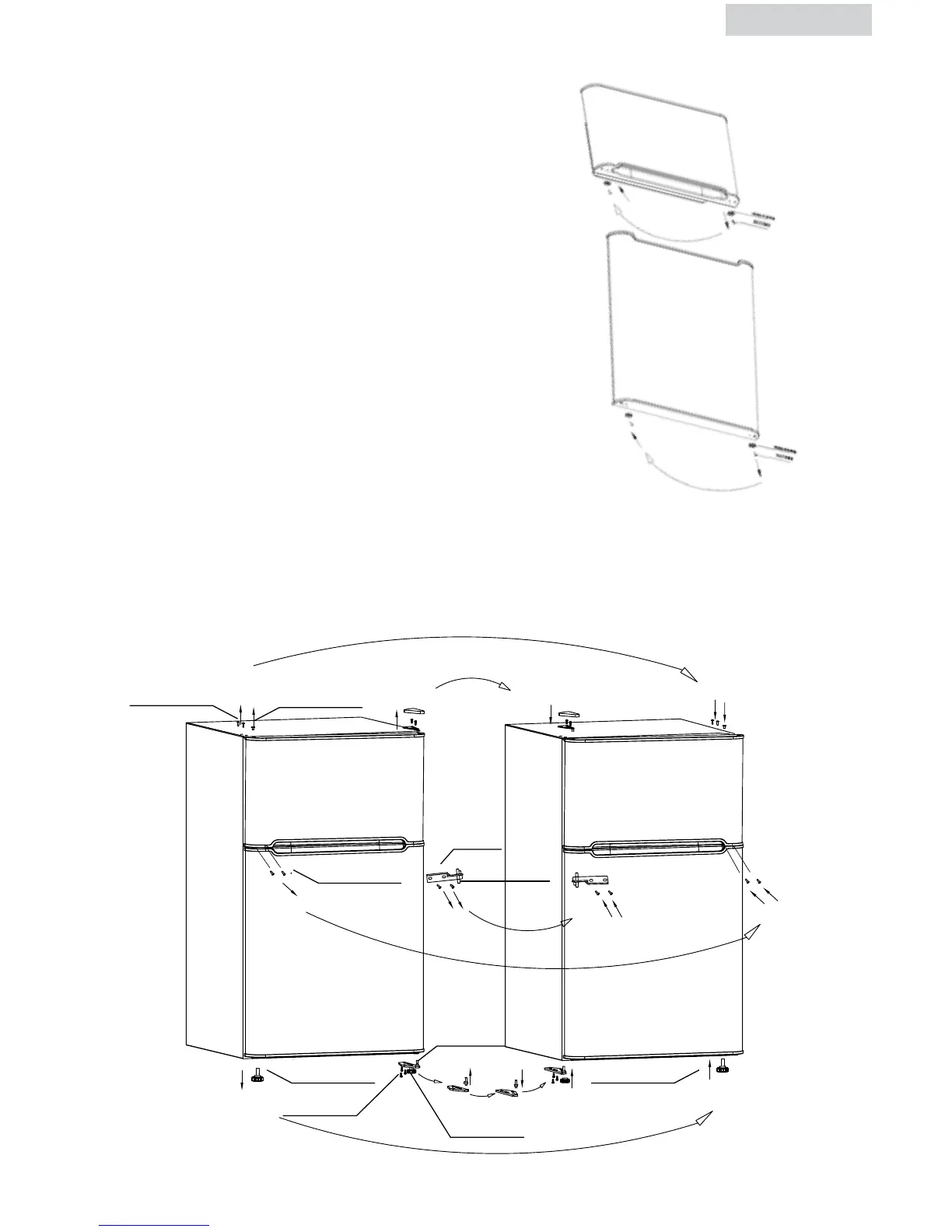

Fig. #3
Fig. #4
Hole Plugs
Door Axis
Hole Cover
Hole Plugs
Tall Leg Tall Leg
Screws
Screws
Short Leg
Bottom
Hinge
Middle
Hinge
