Assembly and Installation
1. Push the round Window Panel Adapter through the rear of the Plastic Panel.
Line up the holes and tighten the Adapter with 4 screws that are included in
the kit. (Tighten screws from the front).
2. Adjust the Plastic Panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
3. Install the Window Plastic Panel into the window. If necessary use duct tape
to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhaust. (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them together.
6. Plug into wall outlet to get ready for operation.
* NOTE: Use on Single Outlet Circuit Only.

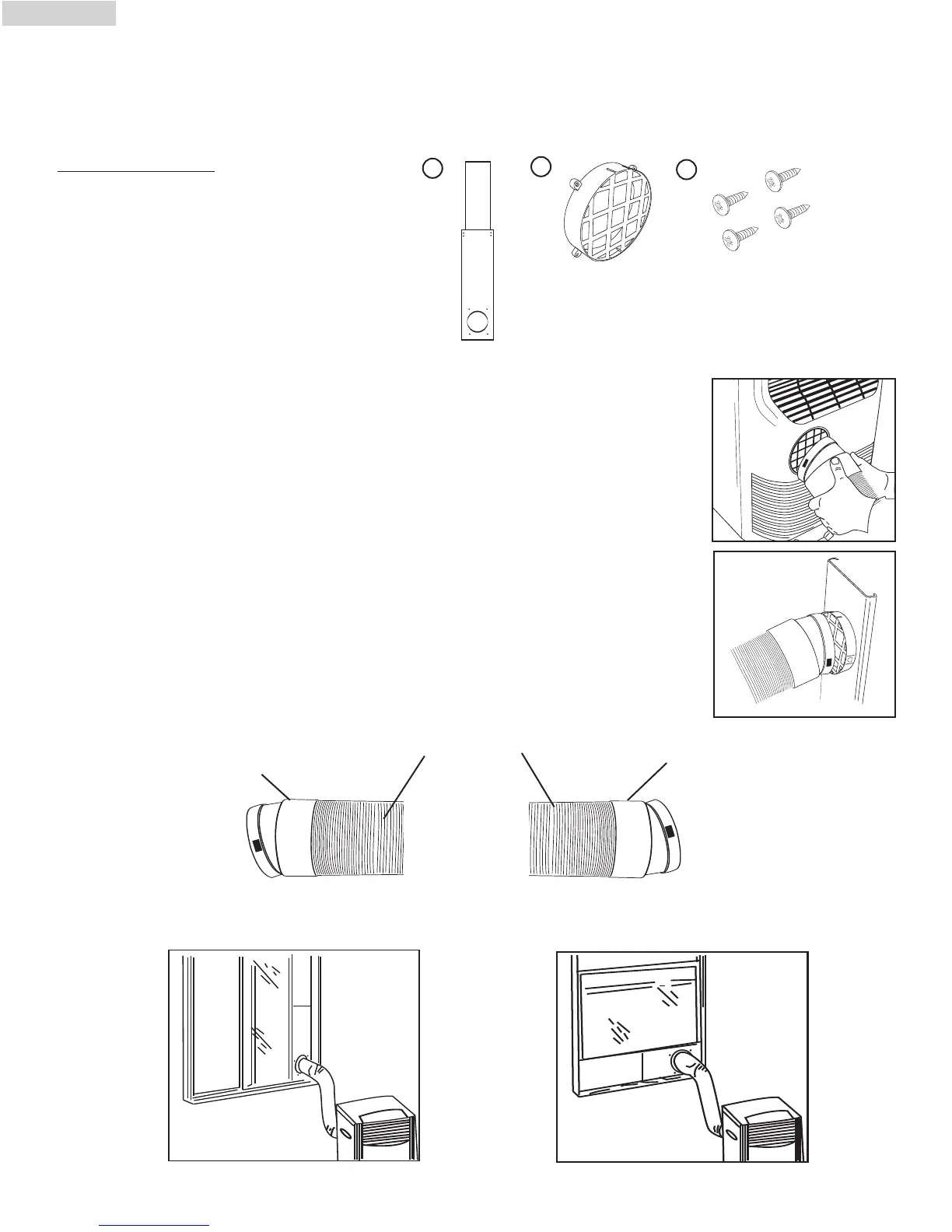

Accessories Include
1. Plastic panel - 2 pieces
2. Window Panel adapter - 1 piece
3. Screws - 4 pieces
4. Heat Exhaust hose connector-2
pieces
5. Heat Exhaust hose-1 piece
1
2
Exhaust Hose
Hose Connector
Hose Connector
3
A
B
