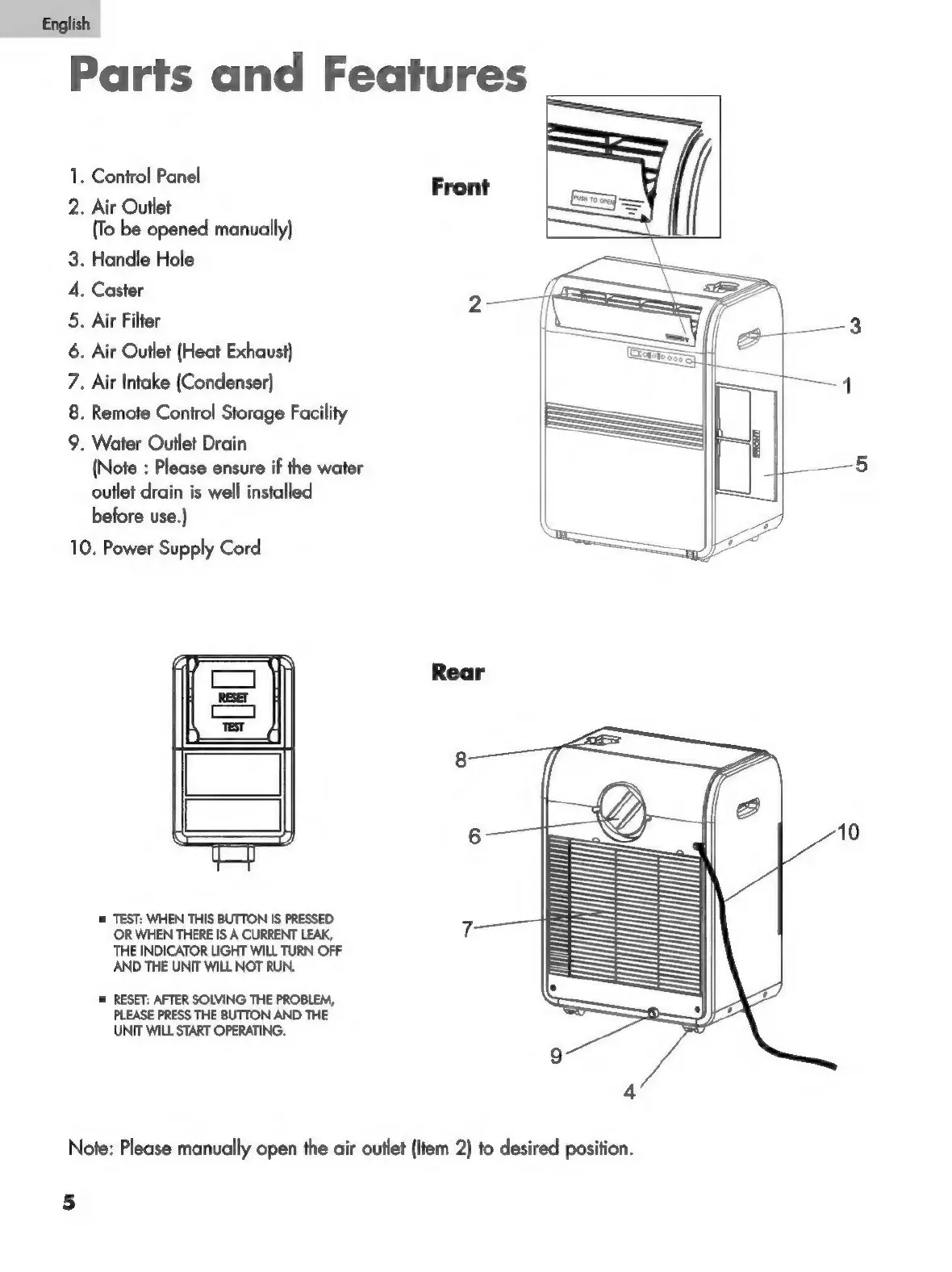

Parts and Features
1. Control Panel
Air Outlet
(To be opened manually)
Handle Hole
Caster
Air Filter
Air Outlet (Heat Exhaust)
Air Intake (Condenser)
Remote Control Storage Facility
Water Outlet Drain
(Note : Please ensure if the water
outlet drain is well installed
before use.)
Front
№
0 © М © à E б
10. Power Supply Cord
Rear
m TEST: WHEN THIS BUTTON IS PRESSED
OR WHEN THERE IS A CURRENT LEAK,
THE INDICATOR LIGHT WILL TURN OFF
AND THE UNIT WILL NOT RUN.
m RESET: AFTER SOLVING THE PROBLEM,
PLEASE PRESS THE BUTTON AND THE
UNIT WILL START OPERATING.
Note: Please manually open the air outlet (Item 2) to desired position.
5
