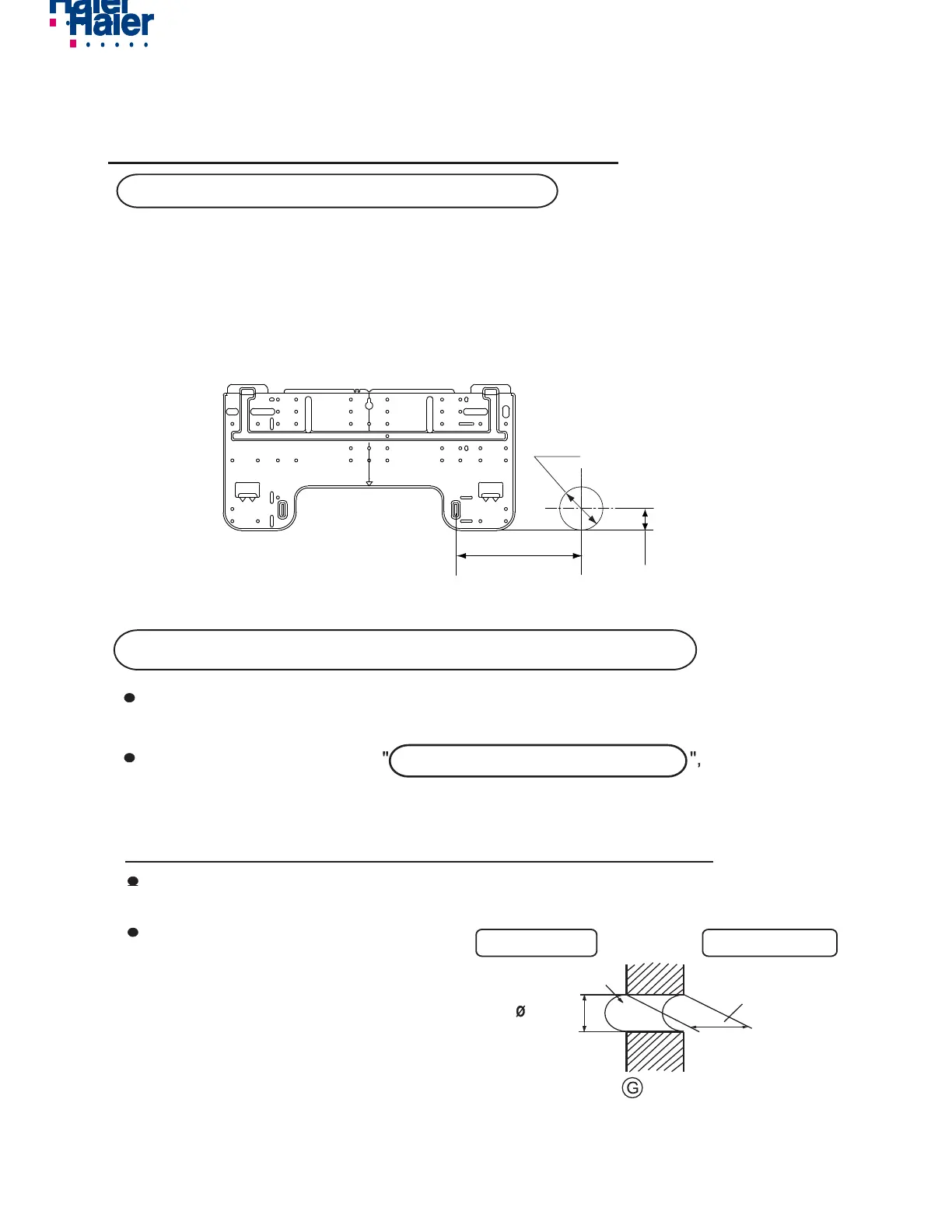

1 Fitting of the Mounting Plate and Positioning of the Wall Hole
2 Making a Hole on the Wall and Fitting the Piping Hole Cover
When the mounting plate is first fixed
When the mounting plate is fixed to side bar and lintel
Fix to side bar and lintel a mounting bar, Which is separately sold, and then fasten
the plate to the fixed mounting bar.
Refer to the previous article,
When the mounting plate is first fixed
position of wall hole.
for the
Make a hole of 60mm in diameter,
slightly descending to outside the wall.
Install piping hole cover and seal it
off with putty after installation.
Indoor side
Outdoor side
Wall hole
Thickness
of wall
(Section of wall hole)
Piping hole pipe
3 Find the wall hole location A using a measuring tape.
1 Carry out, based on the neighboring pillars or lintels, a proper leveling for the plate to be
fixed against the wall, then temporarily fasten the plate with one steel nail.
2 Make sure once more the proper level of the plate, by hanging a thread with a weight from
the central top of the plate, then fasten securely the plate with the attachment steel nail.
A=145mm
B=
60mm
60mm
30mm
59
Model: HSU-09HS03/R2(DB)Domestic Air Conditioner
HSU-12HS03/R2(DB)
To Next Page
