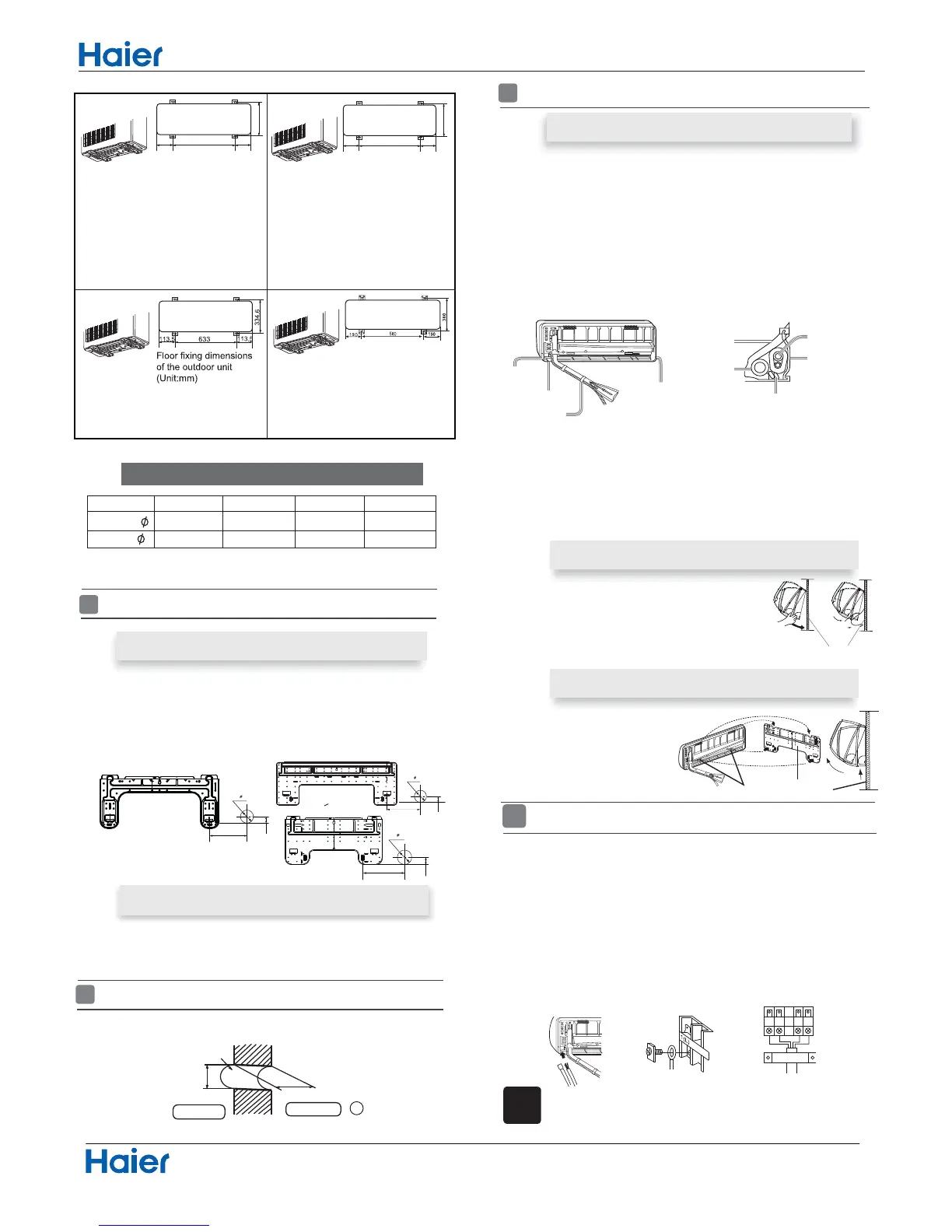

Indoor unit
Fix to side bar and lintel a mounting bar, Which is separately sold, and then
●
fasten the plate to the fixed mounting bar.
Refer to the previous article, “ When the mounting plate is
●
position of wall hole.
Make a hole of 60 mm in diameter, slightly descending to outside the wall.
●
Install piping hole cover and seal it off with putty after installation
●
When the mounting plate is first fixed
1. Carry out, based on the neighboring pillars or lintels, a
to be fixed against the wall, then temporarily fasten the plate with one steel nail.
2. Make sure once more the proper level of the plate, by
hanging a thread with a
weight from the central top of the plate, then fasten securely the plate with the
attachment steel nail.
3. Find the wall hole location A using a measuring tape
When the mounting plate is fixed side bar and lintel
Indoor side
Outdoor side
1
FittingoftheMountingPlateand
Positioning of the wall Hole
Ø60mm
Wall hole
Thickness of wall
(Section of wall hole)
Piping hole pipe
Lid for right
piping
Lid for under piping pipe
Fix with adhesive tape
Lid for left piping
Heat insulation
material
Drain hose
Piping
Pipe supporting
plate
Indoor/outdoor electric cable
Indoor/outdoor electric cable and drain hose must be bound with refrigerant
●
piping by protecting tape.
[ Other direction piping ]
Cut away, with a nipper, the lid for piping according to the piping direction and
●
then bend the pipe according to theposition of wall hole. When bending, be
careful not to crash
pipes.
Connect beforehand the indoor/outdoor electric cable,
●
andthenpulloutthe
connected to the heat insulation of connecting part specially.
proper leveling for the plate
firstfixed“,forthe
2
Making a Hole on the Wall and Fitting the Piping Hole Cover
G
Drawingofpipe
3
Installation of the Indoor Unit
[ Rear piping ]
Drawpipesandthedrainhose,thenfastenthemwiththeadhesivetape
●
[Left
·
Left-rear piping ]
In case of left side piping, cut away, with a nipper, the lid for left piping.
●
In case of left-rear piping, bend the pipes according to the piping direction to
●
themark of holeforleft-rearpipingwhichismarkedonheatinsulationmaterials.
1. Insert the drain hose into the dent of heat insulation materials of indoor unit.
2. Insert the indoor/outdoor electric cable from backside of indoor
unit, and pull it
out on the front side, then connect them.
3.Coattheflaringsealfacewithrefrigerantoilandconnect pipes.
Covertheconnectionpartwithheatinsulationmaterialsclosely,andmakesure
fixingwithadhesivetape
Fixing the indoor unit body
Hang surely the unit body onto the upper notches of the
●
mounting plate. Move the body from side to side to verify its
secure fixing.
Inordertofixthebodyontothemountingplate,holdup
●
thebodyaslantfromtheundersideandthenputitdown
perpendicularly.
4
Connecting the indoor/outdoor Electric Cable
Remove terminal cover at right bottom corner of indoor unit, then ta
k
e●
off wiring
coverbyremovingitsscrews.
Insert from outside the room cable into left side of the wall
pipe has already existed.
Pull out the cable on the front side, and connect the cable making a loop.
Note
When connecting the cable, confirm the terminal number of indoor and
outdoor units carefully. If wiring is not correct, proper operation can not
be carried out and will cause defect.
Insert the cable from the back●
side of the unit, then pull it out
on the front side.
Loosenthescrewsandinsert
●
the cable ends fully into
terminal block, then
tighten the screws.
Pull the cable slightly to
●
makesurethecableshave
been properly inserted and
tightened.
After the cable connection,
●
neverfailtofastentheconnectedcablewiththe
wiring cover.
mounting plate
When you unload the indoor unit,please use
then lift the bottom of the body outward
slightly and lift the unit aslant until it
leaves the mounting plate.
agraffe
mounting plate
Unloading of indoor unit body
●
your hand to arise the body to leave agraffe,
NOTE˖The thickness of the pipe must be 0.8mm at least.
Selectionofpipe
Liquid pipe ( )
For 07- 12K
6.35mm(1/4")
Gas pipe ( )
9.52mm(3/8")
For 18K
12.7mm(1/2")
6.35mm(1/4")
15.88mm(5/8")
6.35mm(1/4")
15.88mm(5/8")
9.52mm(3/8")
For >18K
A=145mm
B= 60mm
30mm
60mm
30mm
30mm
7K-12K
A=145mm
B= 60mm
A=145mm
B=
18K
>24K
HSU-07LEK13/R2
Floor fixing dimensions
of the outdoor unit
(Unit:mm)
Floor fixing dimensions
of the outdoor unit
(Unit:mm)
140
500
140
256
Floor fixing dimensions
of the outdoor unit
(Unit:mm)
●
hole, in which the
●
HSU-09LEK13/R2
HSU-12LEK13/R2
HSU-18LEK13/R2
HSU-24LEK13/R2
HSU-07HEK13/R2
HSU-09HEK13/R2
HSU-18HEK13/R2
HSU-24HEK13/R2
HSU-12HEK13/R2
HSU-24LEK03/R2(DB)
HSU-18LEK03/R2(DB)
HSU-24LEK03/R2(DB)
113.5
583
113.5
19 5
.
3
HSU-18LEK03/R2(DB)
Functions and Control
62
Domestic Air Conditioner
