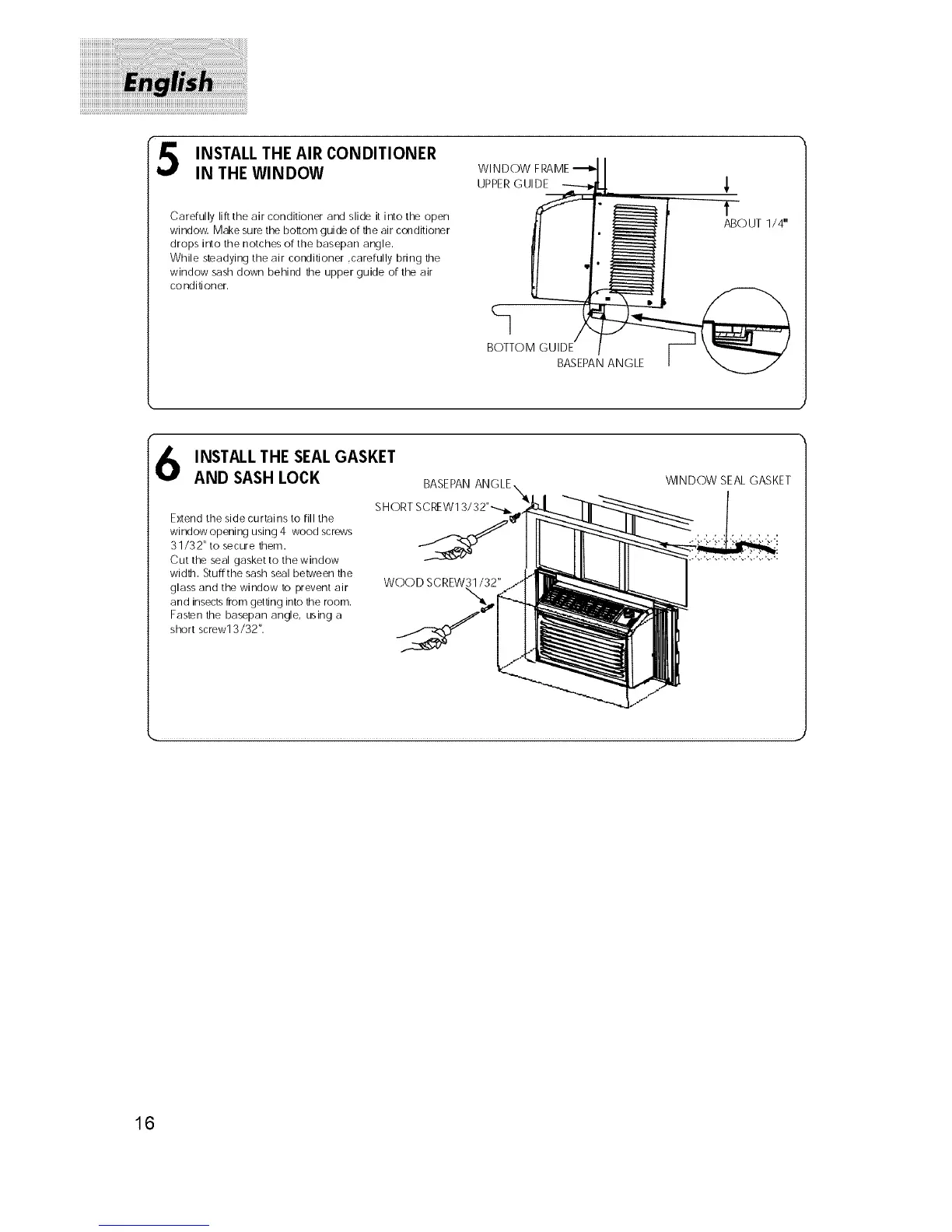

INSTALL THE AIR CONDITIONER
IN THE WINDOW
Carefully lift the air conditioner and slide it into the open
window. Make sure the bot[om guide of the air conditioner
drops into the notches of the basepan angle.
While steadying the air conditioner ,carefully bring the
window sash down behind the upper guide of the air
conditJoner.
WINDOW FRAME
UPPERGUIDE
BOTTOM GUIDE [
BASEPANANGLE
ABO UT 1/ 4II
f
INSTALL THE SEALGASKET
AND SASH LOCK BASEPAN
Extend the side curtains to fill the
windowopening using 4 wood screws
31/32" to secure them.
Cut the seal gasket to thewindow
width. Stuffthe sash seal between the
glass and the window to prevent air
and insects from getting into the room.
Fasten the basepan angle, using a
short screw13/32".
SHORT SCREW13/32"---.._.
WOOD SCREW31/32"
WINDOW SEAL GASKET
