PAGE 6 INSTALLATION REQUIREMENTS
IMPORTANT: evresbO all governing codes and ordinances. Check the location where the air
conditioner will be installed. Make sure you have everything necessary for correct
installation.
THE LOCATION SHOULD PROVIDE:
• A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air
conditioner, for models:
HWF05XCR-L
NOTE: oD not use an extension cord, plug adapter, surge protector or multi-outlet adapter.
•
Free movement of air in the room to be cooled.
•
A large enough window opening for the air conditioner. (See Fig.2)
•
The air conditioner must not be installed in a through-the-wall sleeve or in a wall. It can only be
installed in a double-hung window.
NOTE: The outside cabinet louvers and air discharge must not be obstructed by bushes, trees,
etc. Air must be able to pass freely through the cabinet louvers. (
See Fig.1)
WINDOW INSTALLATION
Window opening measurements: (See Fig. 2)
HWF05XCR-L
A. Width 21-7/8"-36"
B. Height 13-3/8"
Fig. 2
LOCATION REQUIREMENTS
WIDTH
LENGTH
HEIGHT
WIDTH
WIDTH
A-WIDTH
B-HEIGHT
CABINET LOUVERS

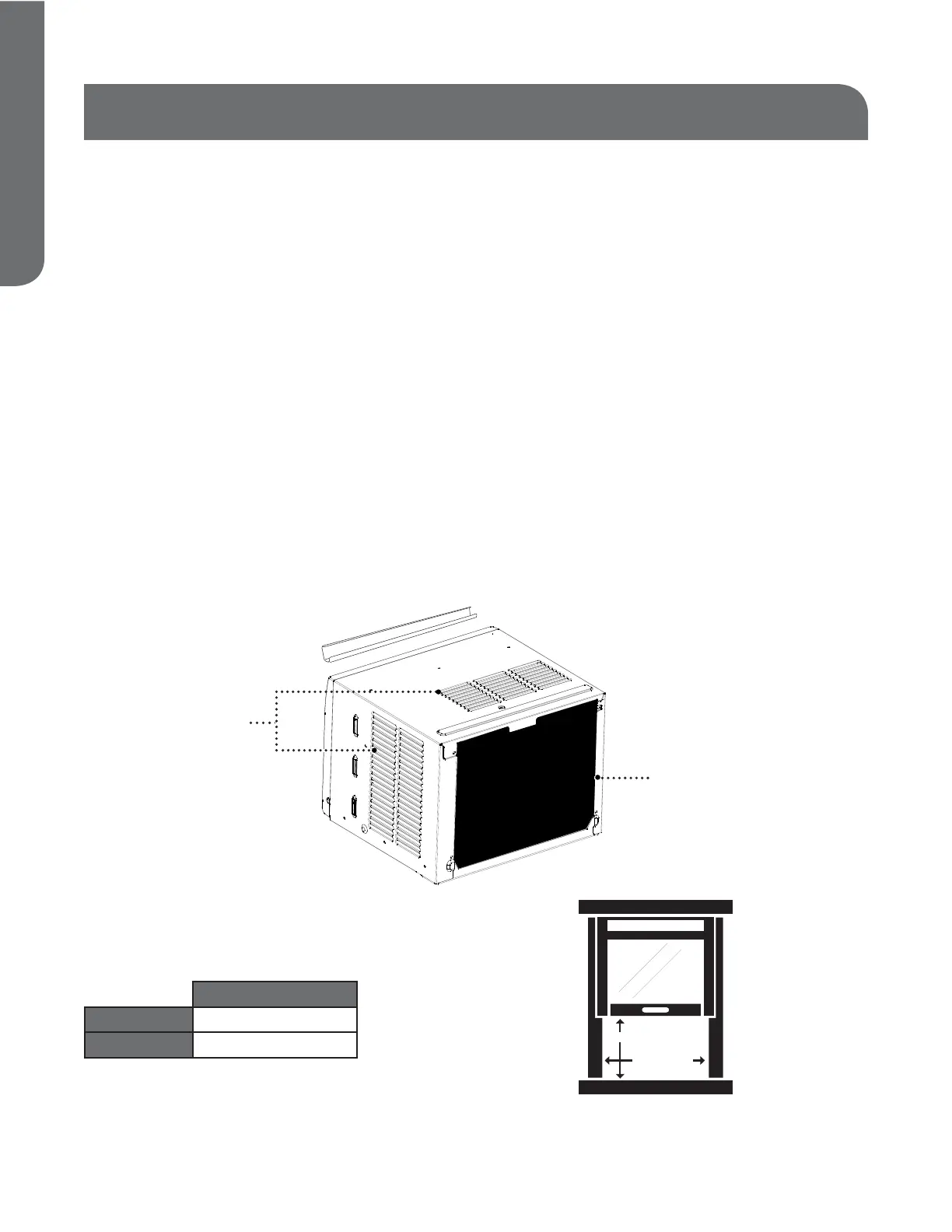

Fig. 1
AIR DISCHARGE
