Haier L26K3 User Manual

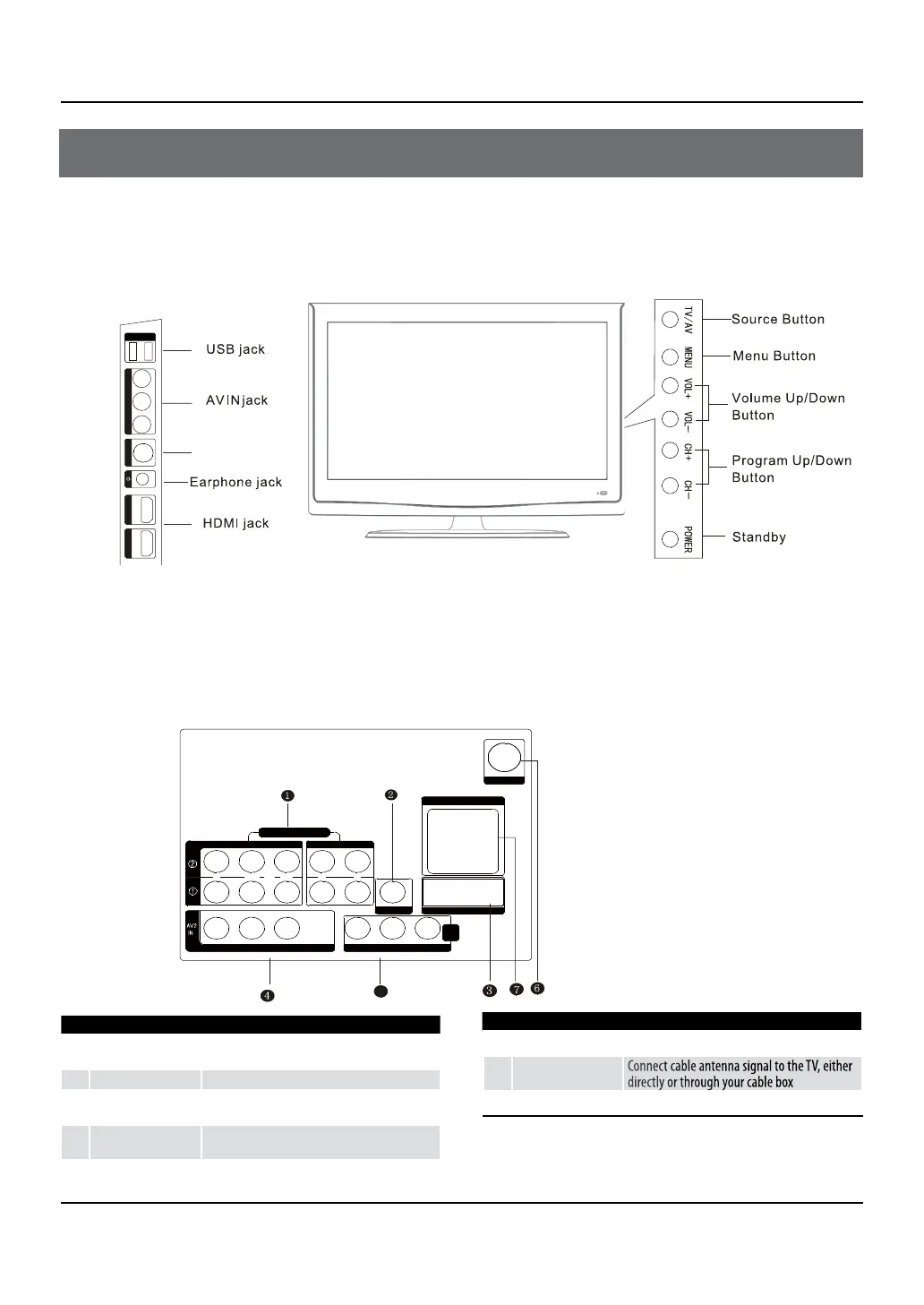

Panel Control and Rear Terminals Control
6 TFT -LCD television Owner’s Manual
Panel Control and Rear Terminals Control
- This is a simplified representation of front panel.
- Here shown may be somewhat dierent from your TV.
Panel Control
32”/42”
 2   









2


Rear Terminals Control
COMPONENT IN
32”/42”
AV
OUT
5
ANT IN
VIDEO AUDIO
VGA/AUDIO
VIDEO
L AUDIO R VIDEO
L AUDIO R
HDMI 3
VGA IN
Y Pb Pr
L R
1
COMPONENT In
Connect a component Video/Audio device to
these jacks
2
VGA/DVI AUDIO Connect a VGA/DVI Audio device to these jacks.
3
VGA IN
Connect the monitor output connector from a PC
to the jack.
4
AV IN
Connect Video/Audio out from an Video/
Audio device to these jacks
5
AV OUT
Video/Audio output terminal
6
ANT IN
Connect cable antenna signal to the TV, either
directly or through your cable box
7
HDMI
Connect a signal to HDMI
