Haier L32B1120 Service Manual

- 35 -

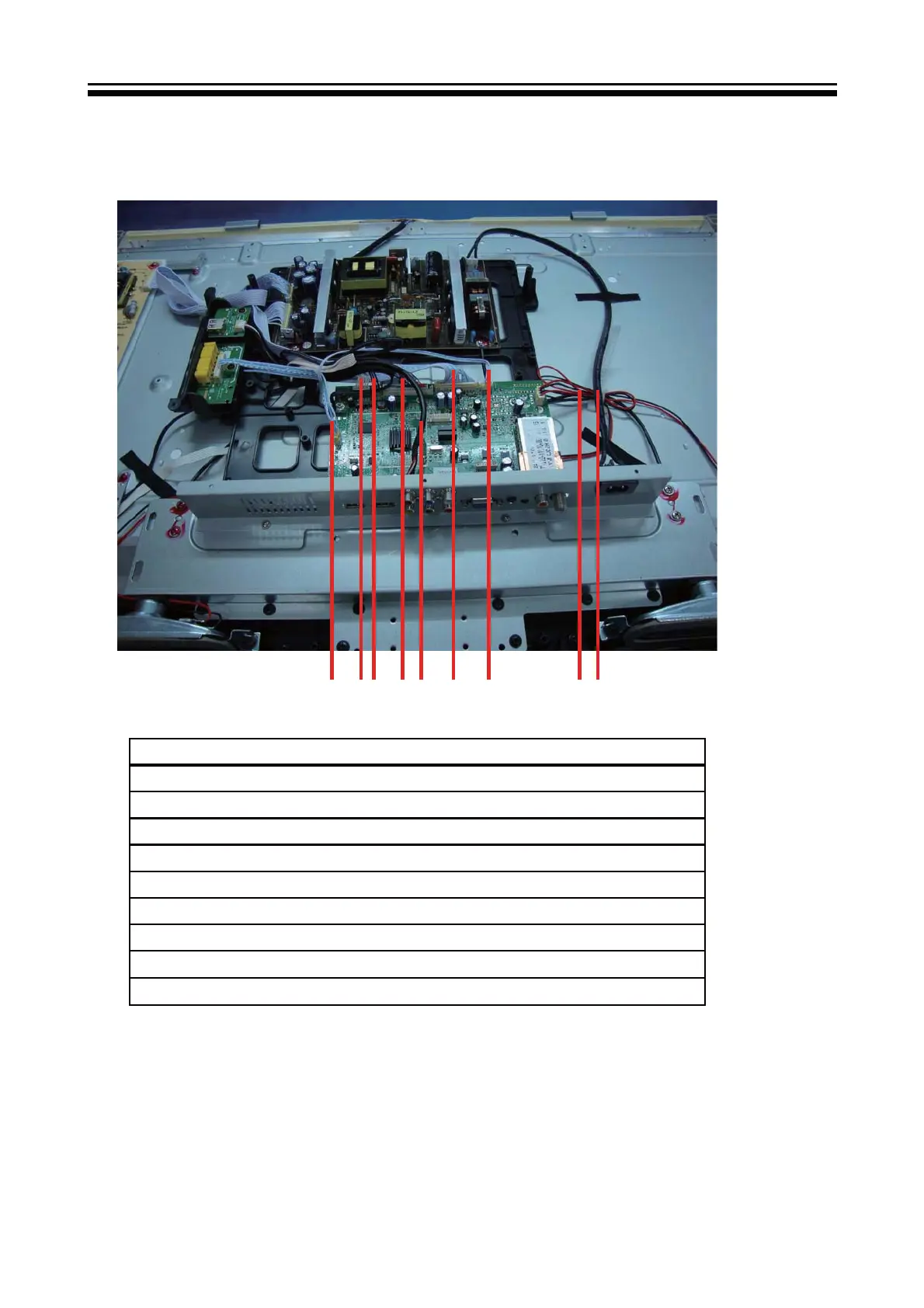

7-3 .Wiring Connection Diagram
182945367
NO.N ame
1
Connection Wire(Control for USB INPUT )
2
3
4
5
6
7
Connection Wire(For Keyboard)
Connection Wire(For Speaker)
Connection Wire(For SIDE AV INPUT)
Connection Wire(For Remote)
8 Connection Wire(Power For the Power Module)
9 Connection Wire(Control for Backlight on/off)
LVDS Wire
Connection Wire(Power For Mainboard)
