42”LCD TV Haier L42S9
43
7. Adjustment
Colortemp
VGA, AV, YpbPr, HDMI
Warm Cool Normal
x 0.314 0.273 0.291
y 0.324 0.280 0.302
LV 400 400 400
Table 1 white balance adjustment Sources and color temperature standards
The series models need to do Auto Color, but not white balance adjustment, the whole process of Auto Color as
shown below:
1. Press MENU button, User OSD menu will be appeared, and then press 0Æ 6 Æ2 Æ 5Æ9 Æ 6, “software version”
will be appeared in the USER OSD menu, press “software version” to enter the factory mode, as Figure1.

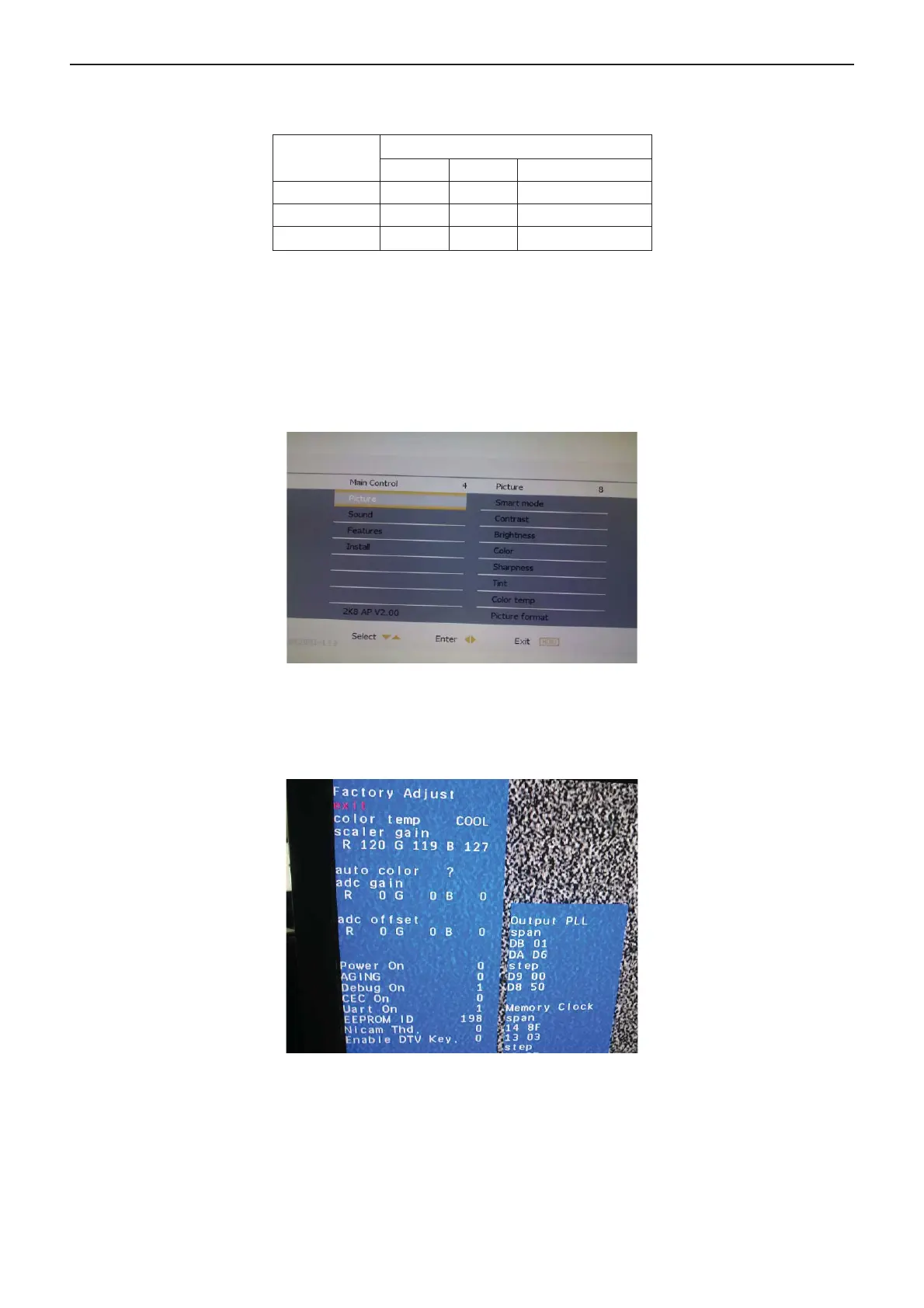

Figure 1 User OSD MENU
2. Use remote control to choose different sources(VGA/AV/YPbPr/HDMI etc.), Auto Color of this sample needs to be
done in PC and YPbPr mode, as Figure 2.
Figure 2 VGA/YPbPr Auto Color
PS: 1. VGA timing is 137, AV timing is 303, YPbPr timing is 311, HDMI timing is 353.
