INSTALLATION

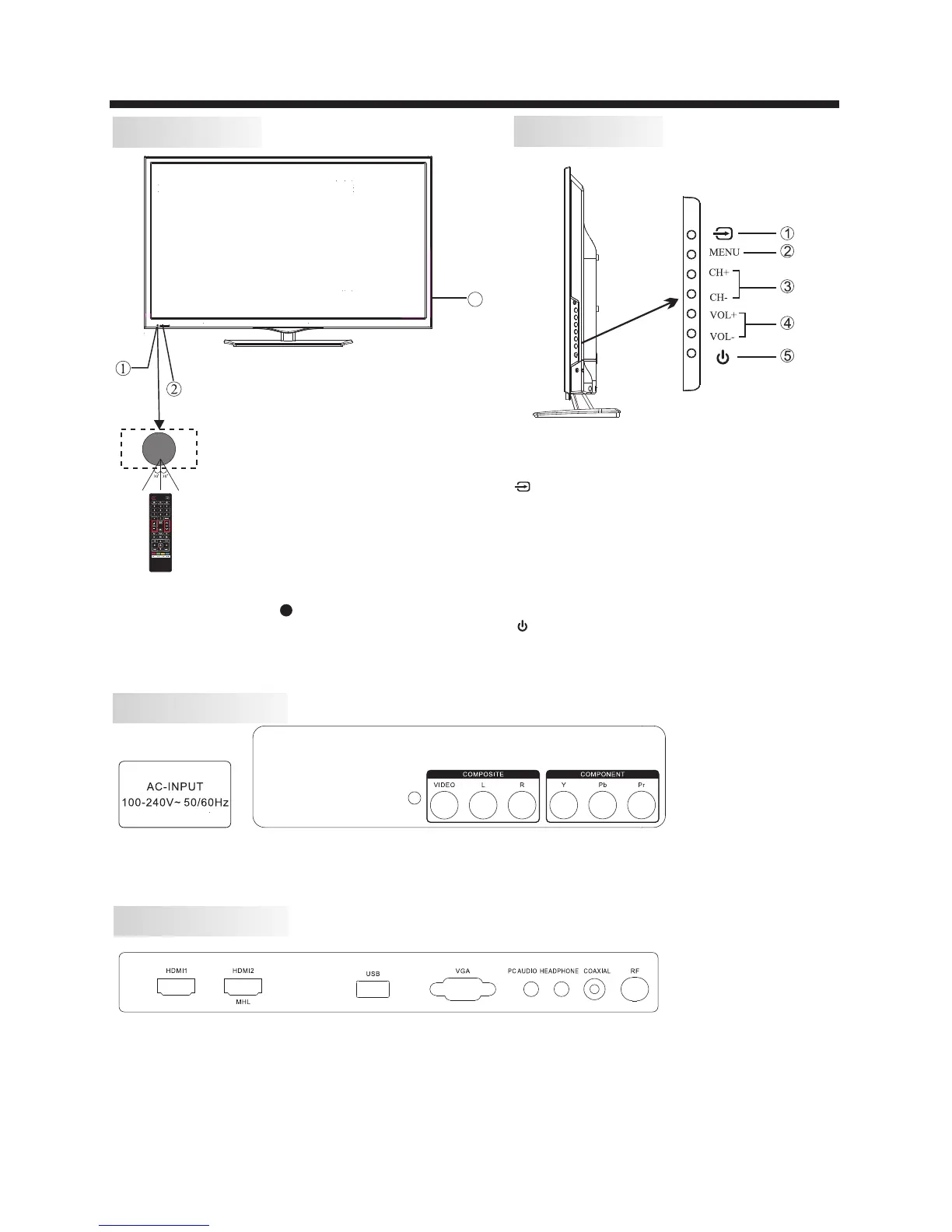

Front panel
Side panel
REAR Connections
1: Remote control sensor.
2
3:
: Indicator LED: RED STANDBY.
Panel keys
1. : Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items; In standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. : Press this button to turn the unit ON from
STANDBY mode. Press it again to turn the set back to
STANDBY.
SIDE Connections
All the terminals are (from left to right):
, MHL/HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
HDMI1
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, .
Note: AV and component (YPbPr) share the R and L audio inputs.
YPbPr INPUT(COMPONENT)
3
