-6-

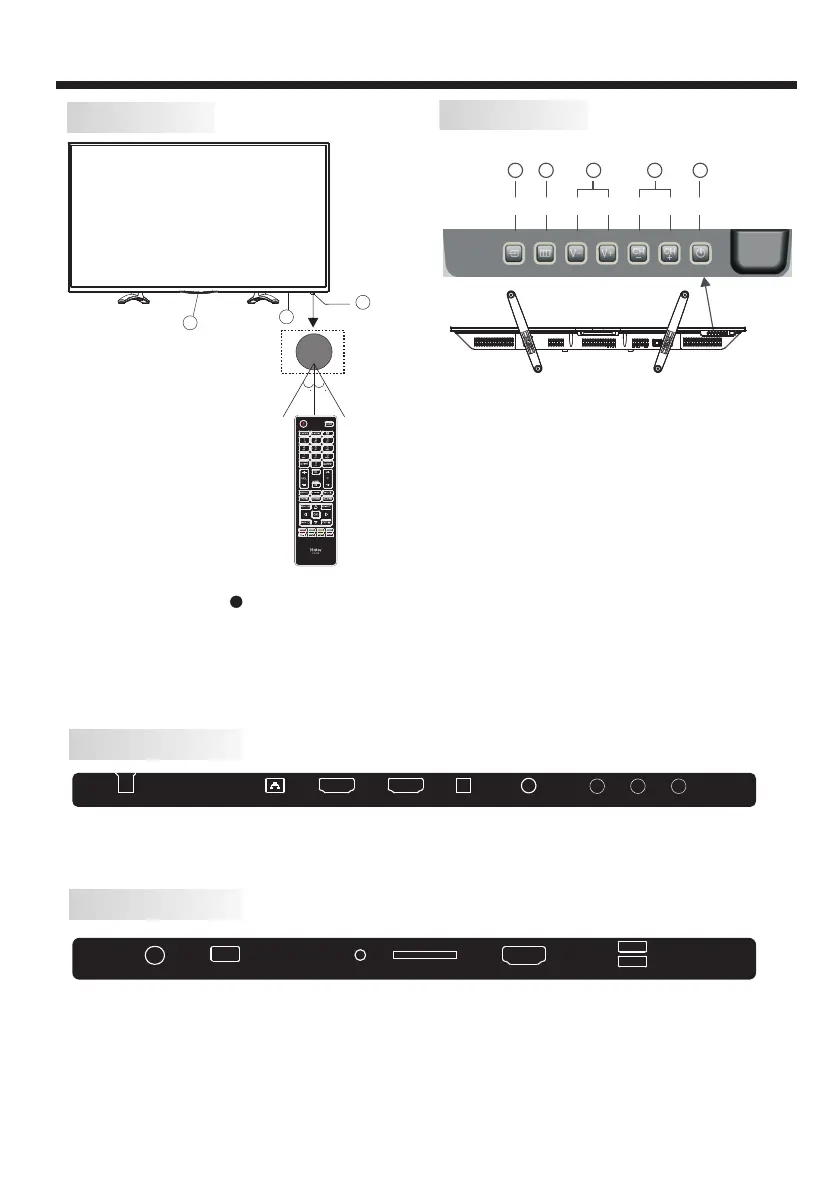

INSTALLATION
Front panel
KEYBOARD
REAR AV Connections
All the terminals are(from left to right):
AC POWER SOCKET, LAN, HDMI1(ARC), HDMI2, OPTICAL OUTPUT, YPbPr, VIDEO, AUDIO INPUT.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are (from left to right):
RF, USB, HEADPHONE OUTPUT, TF, HDMI3, USB.
1: Remote control sensor.
2: Indicator LED: STANDBY.
3: Key board
Blue
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V+/V-
Adjust sound level.
In MENU mode, press“V+”or“V-”to
adjust the item that you selected.
4．CH+/CH-
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
30 30
1
2
3
SOURCE MENU V- V+ CH- CH+ Standby
1 2 3 4 5
AC-INPUT
100-240V~50/60Hz
HDMI1(ARC) HDMI2LAN OPTICAL YPbPr
VIDEO
L R
RF USB
HEADPHONE
TF Card
HDMI3
USB
